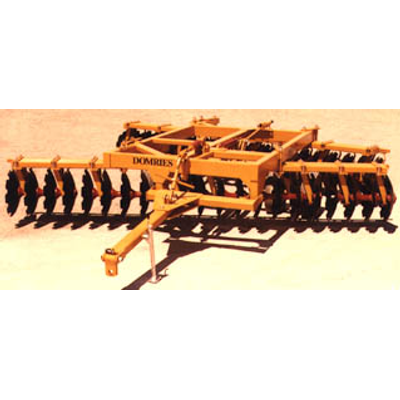

Domries Enterprises, Inc. products

Specifications: blades 26" x 1/4" notched or smooth, 1 1/2" square hi-carbon steel gang rods, 9 1/2" or 10 3/4" blade spacing, cast iron spools, trunion mounted triple sealed gang bearings with wear guards, 5000 lb- rated wheel hubs and bearings, 2" diameter hi-carbon steel wheel spindles with two grease seals and grease barrier, 9.5Lx 15 6-ply dual tires (4) on units up to 22`6", HLx 15 6-ply dual tires (4) on units up to 24`3", 4" x 16" hydraulic lift cylinder (1 on OFN and 2 on OFM & OFW), 5000 lb lift jack, transport lock safety pin, safety tow chain, SMV emblem, 16 to 30 degree cutting angles, tapered blade group on right rear gang, and hydraulic hose guide. Main frame of 4" x 8" steel tubing, gang frames of two (2) 3 1/2" x 3 1/2" x 3/8" square tubing. Frame widths: 70" on OFN, 86" on OFM and 107" on OFW. Widths: 21 sizes from 12`3" to 24`0". Weights: 6259 to 12,429 lbs. Weight per foot of cut: 466 to 534 lbs. Weight per blade: 186 to 238 lbs.

Specifications: blades 32" x 5/16" notched, 1 3/4" square hi-carbon steel gang rods, 12" blade spacing, cast iron spools, trunion mounted triple sealed gang bearings with wear guards, 4" x 16" hydraulic lift cylinder, 18 to 30 degree gang angling, dual 12.5 x 16 8(c)ply tires, 2 3/4" diameter hi-carbon steel slip-in spindles, 6500 lb. rated wheel hubs and bearings with two grease seals and grease barrier, safety tow chain, SMV emblem and hydraulic hose guide. Seven Sizes: 12`5" to 18`2". Weights: 8483 to 11,411 pounds.
