4 products found

Double100 Automation products

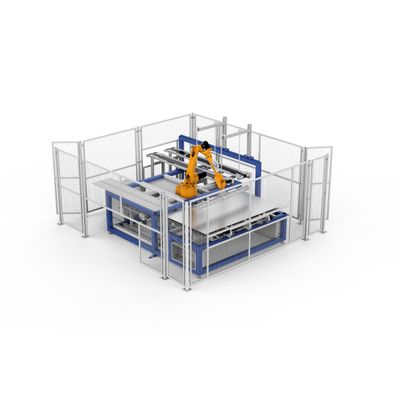

Automatic Glass Loading Machine

Glass moving robot arm will move the glass to the transmission line and the paper picking robot arm remove the paper at the same time.

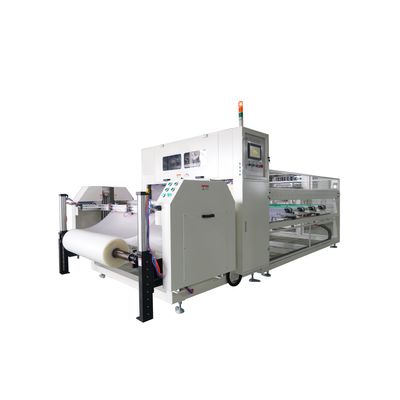

Auto EVA / TPT Cutting & Layup Machine

Structural Features: 1.The machine composed by the PLC, servo motor and air control system, digital sensor,easy to operate ,high in automatic and stable running. 2.Loading :by electrical loading, one worker can operate. 3.Inputting : EVA: stable tension control to input, Back sheet: auto tension control to input 4. Laying : EVA: the system adopts the auto outlet way, the machine hand auto pack the material after cutting. The Synchronous Control Technology is used to isolate the plate and battery and flat them in reverse direction. After laying , there is no fold on the surface of EVA. 5.Way of connection EVA: continuous producing, by hot melt connection Back sheet: continuous producing, by adhesive tape connection. 6.Cutting system: cutting knife by servo motor control, up and down blade. The blade is made by SH-9 high speed steel, long in working life and easy to maintain and install.

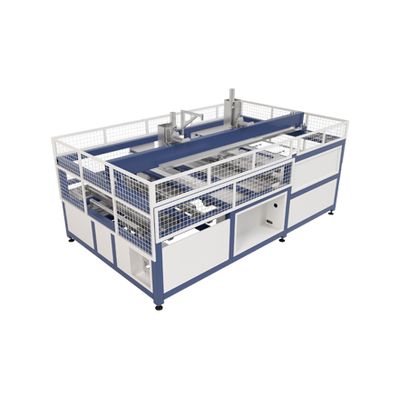

Automatic Layup Machine

Cell strings laying up machine,working with Stringer.Cell strings are in parallel with the long side of the modules after conveyed in the Automatic Layup Machine,and adjusted mechanically and by CCD.

Automatic Robot Layup Machine

From the first device to grab the battery string, judge for themselves whether to turning, after rotation is completed in a safe location, by the laser correlation photoelectric get battery string space coordinates, and then through the manipulator Angle
