DR DAS products

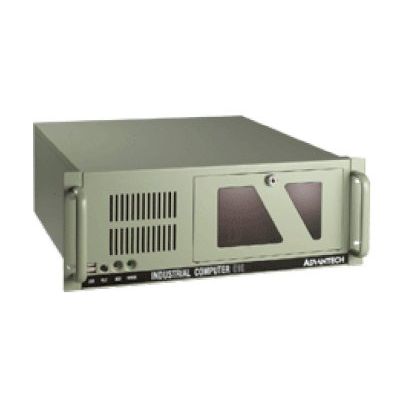

Supports either an ATX motherboard or a backplane with up to 14 slots. Equipped with 250/300 W ATX PFC PS/2 power supply. Easy to install front-accessible drive bays to hold three 5.25` and two 3.5` disk drives. Front-accessible USB & PS/2 interfaces. Designed to withstand environmental extremes, such as shock, vibration and high temperature.

Intel Atom D510 Dual Core 1.67GHz, 2 GB DDR2 SDRAM built-in, 2 Ethernet Connectors, Supports wide operating temperatures from - 10 ~ 70° C, Windows 7, 6 USB 2.0 Ports, 8 RS-232 Connectors

Marvell XScale PXA-255 200 MHz Processor, 64 MB SDRAM on board, 32 MB Flash, 2 x RS-232, 2 x RS-232/422/485 Serial Ports, Dual 10/100 Mbps Ethernet, 1 x CompactFlash for DATA storage, Windows CE 5.0 Ready Platform and optional uClinux OS support, Included Advantech DaigAnywhere for Easy Configuration, DIN-rail and Wallmounting Options.

Resolution: 16-bit, Analog Input Range: ±150mV, ±500mV, ±1V, ±5V, ±10V, ±20Ma, Channel: 6 channel differential/ 2 channel single-ended or 8 channel differential (jumper select), Sampling Rate: 10Hz, With Modbus communication protocol (R-8017+)

Effective Resolution: 16-bit, Channel: 8-channel difference, Input Type: mV, V, mA, Input Range: ±150mV, ±500mV, ±5V, ±10V, 0-20mA, 4-20 mA, Digital Output: Channels - 2, Open Collector 30V, 100mA Max Load, Power Consumption: 2W.

Channels: 16, Power Consumption: 0.84W, Input Voltage: 30V Max, Connectors: Plug in screw terminal ( #14-22 AWG).

Channels: 7, Resolution: 16-bit, Power Consumption: 0.63W, Input Range: ±15mV, ±50mV, ±500V, ±10V, ±1V,±2.5V, 0-20mA, 4-20 mA, Sample Rate: 10 samples/sec., Connectors: Plug in screw terminal ( #14-22 AWG)

Channels: 4, Input Frequency: 0.3 - 1,000Hz max, (Frequency Mode), 5,000Hx max (Counter Mode), Maximum Count: 4,294,976,295 (32-bits), Minimum Input Current: 2 mA
