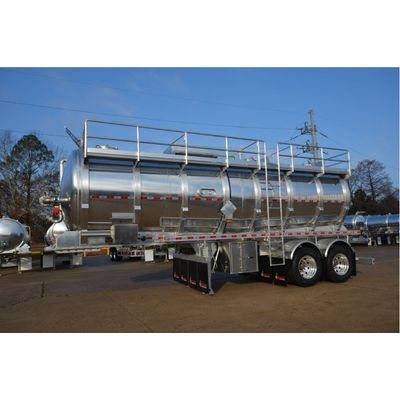

More than ever, crude haulers are transporting their valuable cargos with Dragon double conical trailers – because their profitability is riding on it. The conditions around well sites and production areas are infamously harsh. This is no place for average equipment. Which is why Dragon designs and builds its double conicals to deliver performance that goes well above and far beyond.

1/4″ Steel Plate Tank Construction Smooth Interior Walls For Easier Cleaning, Round Bottom Floor For Better Drainage, 3″ Fill Line, Manways Conveniently Located On Front, Side And Top 4″ Drains And Front Inlet / Outlet Heavy Duty Nosebar Assembly.

Whether you need centrifugal pumps or heavy-duty pumps for handling solid waste and trash, Dragon has you covered. We carry a full line of pumps that can run on a variety of fuels – electric, diesel, or natural gas. Dragon will also help you select the right pump with the right pressure to insure you don’t incur extra horsepower expense. Dragon stands ready to support our drilling and oilfield customers with the highest quality pumps in the industry. And, as always, Dragon backs every product it manufactures with the support you need.

The concentric housing design reduces turbulence within the pump to minimize cavitation, shaft deflection, and excessive wear. The semi open impeller is designed to handle water or heavy slurries with equal efficiency. Replaceable wear plates protects the pedestal from wear and corrosion caused by fluids being pump, therefore, extending the life of the pump. The beefed-up frame design is stronger and more rigid in all wear areas.It gives a larger work area to facilitate packing the pump, which cuts repacking time. Heavy duty bearings are well protected by spring type oil seals and water slinger designed to keep fluid and dirt out of the bearing cavity. Eccentric locks are used so the shaft can be easily removed without special tools.

This unique unit allows a single operator the ability to load and haul two 16’- 22’ containers. Overall length: 48’ – 6” | Rail Length 47’ | Rail Height 62”. G.V.W.R. Rating: 80,000 lb. Main Winch: (1) Tulsa 60,000 lb. Capacity Planetary 7/8” cable EXIWRC 6 x 36. Transfer Winch: (1) Tulsa 20,000 lb. Line pull 5/8” cable EXIWRC 6 x 36. G.V.W.R. Rating: 80,000 lb.. Trailer Main Frame: I-Beam Construction. Trailer Main Frame Flanges: 5/8” x 5” A514 (T1). Trailer Web Section: ¼ “ A514 (T1). Tilt Frame: I-Beam Construction.

Service Depth: 10,500 ft [3200.4 m]  (2-1/2` tubing). Workover Depth: 8,500 ft  [2590.8 m] (2-7/8` DP). Max. static hook load: 180,000 lbs (4  lines). Clear Height: mast 96` [29.3 m]. Rated Horsepower: engine 300 hp / 2,200 rpm Height: Tubing board to ground 55 ft` [16.8 m]. Rod board to ground  78`-6` [23.9 m] Carrier: 4 axle-two steer and two drive axles. Diameter: Wireline 1`. Road Traveling Dimensions: 56`-6` long x 9`-4` wide x 13`-8` high 17.22 m long x 2.8 m wide x 4.2 m high. Carrier Dimensions: [excluding mast] 38` long x 9`4` wide x 9`-8` high.

Service Depth: 14,500 ft (2-1/2` tubing). Workover Depth: 10,500 ft (2-7/8` DP). Max. static hook load: 205,000 lbs (6  lines). Clear Height, Mast: 96` Rated Horsepower, Engine: 350 HP/2,200 rpm. Height, Tubing Board to ground: 55`-10`. Height, Rod Board to ground: 78`-6`. Carrier: 4 axle - two steer and two drive axles. Diameter, Wireline: 1`. Road Traveling dimensions: 56`-5` long x 9`-4` wide x 13`-8` high. Carrier Dimensions (excluding mast): 38` long x 9`4` wide x 9`-8` high.

The unit is a 630 horsepower triplex skid mounted pumping unit that is equipped to operate at the work site independent of other equipment. The unit is fabricated on three 10” x 35 lbs. I-Beam. Equipment consist of one diesel engine, automatic transmission, triplex pump, and a centrifugal pump. The main skid engine and automatic transmission drive the triplex pump. The triplex pump is configured to pump fluid to, release, or re-circulate fluid. A hydraulic drive is mounted on the transmission providing hydraulic power to operate the centrifugal pumps.

The Dragon LPG Transport Trailer is engineered to optimize performance and safety in LPG transportation. Conforming to ASME Section VIII, Div. 1, DOT MC331, and NFPA 58 standards, these trailers are available in 10,600, 11,500, and 12,600-gallon capacities. Fabricated from SA 517 carbon steel, they offer a Maximum Allowable Working Pressure (MAWP) of 265 PSIG at temperatures from -20°F to 125°F. The trailers feature advanced suspension systems such as the Watson & Chalin Integra 30K air ride tandem or tri-axle suspension. A 4-inch Blackmer vane pump is hydraulically driven, complemented by a 4-inch dial float gauge and liquid level indicators at various thresholds. Designed for accessibility, liquid and vapor connections can be approached from either side. The structural integrity includes bolted upper couplers with adjustable increments, ensuring flexibility during operation. For safety, emergency shutdown controls are strategically positioned.
