DRD Systems products

Thermal Destratification - Controls - EC

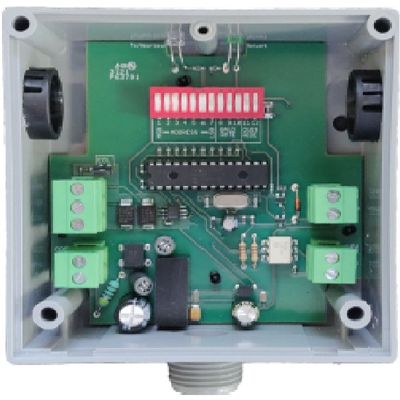

Model AiriusBAC24 - BACnet/MSTP Fan Control

ON/OFF, fan speed control, and RPM monitoring, One tachometer input; 24V(ac/dc) power input, One 0-10VDC output, Up to 63 fans per MS/TP Network, 4″ x 4″ x 1.8″ enclosure, with .5″ NPT nipple, LED (Green & Blue) status indicators, BACnet/MSTP fan control allows for comprehensive integration into Building Automation & Control network systems. Used to vary & monitor the speed of fans with EC motors (Air Pear, Designer, Pearl, Q, Onyx, Suspended, Suspended Pear, Retail).

Vacuum Drainage - Central Vac Units

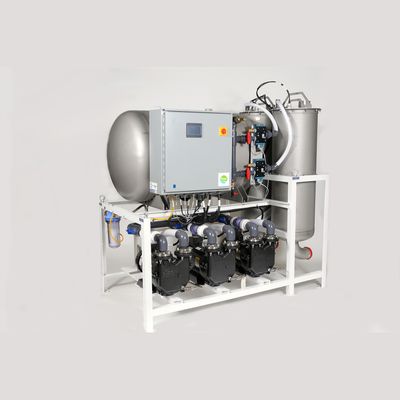

Model L380 - Evac Horizon System

The Evac Horizon System uses differential air pressure to transport waste water upward, to the overhead piping network, unlike the conventional gravity flow of underground drainage piping. Vacuum is generated by (3) 5HP liquid-ring pumps in the collection tanks and throughout the entire vacuum piping network. Waste water is collected and held in (2) 40-gallon tanks, then later discharged at a predetermined volume, to the building sewer system. Power Options: 460V | 230V | 208V

Model L280 - Evac Horizon System

The Evac Horizon System uses differential air pressure to transport waste water upward, to the overhead piping network, unlike the conventional gravity flow of underground drainage piping. Vacuum is generated by (2) 5HP liquid-ring pumps in the collection tanks and throughout the entire vacuum piping network. Waste water is collected and held in (2) 40-gallon tanks, then later discharged at a predetermined volume, to the building sewer system. Power Options: 460V | 230V | 208V

Water Filtration & Treatment - Systems/Manifolds

Model PF-20-1/2-BLU - Water Filtration & Treatment Systems

20″ Filter Housing, .5″ NPT (Opaque, BLUE)
