Ductmate Industries products

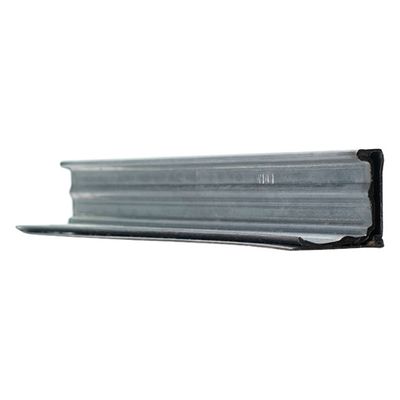

The Ductmate 25/35/45 self-sealing rectangular duct connector systems are used to connect rectangular ducts when a rigid, leak-free connection is required. Ductmate’s 25/35/45 connection systems are strong and virtually leak-free. The connection systems consist of roll-formed flanges, corner pieces, gaskets, and cleats. The flanges attach to the duct wall and have an integral mastic which allows the flange to seal itself to the duct. Corner pieces are used to add rigidity to the flange, hold the ductwork together, and provide a sealing surface for the gasket. The gasket serves as a seal between the flanges. The cleat ensures even compression of the gasket along the length of the flange.

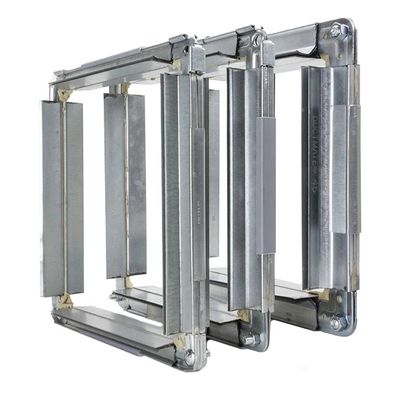

WDCI J&H duct connector systems are used to connect rectangular ducts when a rigid, leak-free connection is required. WDCI J&H duct connector systems consist of roll-formed flanges, corner pieces, a gasket, bolts, nuts, and a cleat. The flanges attach to the duct wall and have an integral mastic which allows the flange to seal itself to the duct. Corner pieces are used to add rigidity to the flange, hold the ductwork together, and provide a sealing surface for the gasket. The gasket serves as a seal between the flanges. The cleat ensures even compression of the gasket along the length of the flange.

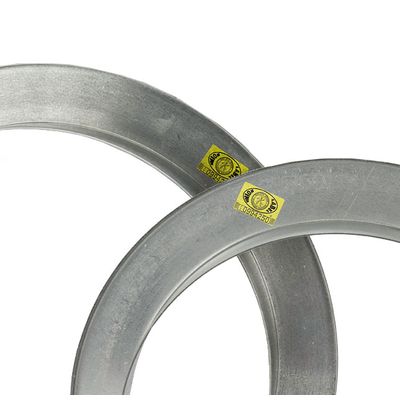

The Spiralmate round duct connector was developed to provide a simple method of connecting sections of spiral round ductwork at a lower overall cost. An air-tight and efficient round duct connection system.

The ECONOflange round duct connector was designed as an alternative to Ductmate’s proprietary round self-sealing system, Spiralmate. The user-friendly design paired with its excellent performance makes ECONOflange the most cost-effective round flange connection on the market. A round duct connection system that uses screws to attach to the duct wall.

Ductmate PolyArmor is a polyester duct liner to be used in forced air heating, ventilating, and air conditioning systems. It is engineered to provide industry-leading R-values with excellent noise reduction values and superior indoor air quality. PolyArmor duct liner is engineered from strong and safe polyester. The polyester material is webbed into a thermal blanket which is then bonded with an FSK facing to resist damage during system installation and operation, while also providing excellent durability in the airstream.
