Duztech AB products

The D35 is a high-performance Dust Suppression / Mist Cannon with 25-35 meter range used for dust, odour and air pollution control in different applications. Equipped with a robust frame the D35 is built to last and can be a mobile or permanent installation.  The D35 is well suited for heavy duty applications such as. Features as electrict tilt, automatic main valve and remote control are standard. Automatic oscillation up to 360° to distribute water mist over large areas are also standard. The D35 is connected to a standard 16A socket. It can be powered by 400V/50Hz from the main grid or from a generator. The flow rate is adjustable to suit different applications. The water mist droplet size is between 20-200 microns which makes the D35 ideal for various applications.

The D45 is a high-performance Dust Suppression / Mist Cannon with 35-45 meter range used for dust, odour and air pollution control in different applications. Equipped with a robust frame the D45 is built to last and can be a mobile or permanent installation. The D45 is well suited for heavy duty applications. Features as electric tilt, automatic main valve and remote control are standard. Automatic oscillation up to 360˚ to distribute water mist over large areas are also standard. The D45 is connected to a standard 32A socket. It can be powered by 400V/50Hz or 480V/60Hz from the main grid or from a generator. The flow rate is adjustable to suit different applications. The water mist droplet size is between 20-200 microns which makes the D45 ideal for various applications.

The D60 is a high-performance Dust Suppression / Mist Cannon with 50-60 meter range used for dust, odour and air pollution control in different applications. Equipped with a robust frame the D60 is built to last and can be a mobile or permanent installation. The D60 is well suited for heavy duty applications. Features as electric tilt, automatic main valve and remote control are standard. Automatic oscillation up to 360˚ to distribute water mist over large areas are also standard. The D60 is connected to a standard 63A socket. It can be powered by 400V/50Hz or 480V/60Hz from the main grid or from a generator. The flow rate is adjustable to suit different applications. The water mist droplet size is between 20-200 microns which makes the D60 ideal for various applications.

DUZTECH MOSQUITO mist cannon is a small machine that can be moved by hand. Compact and light in weight makes it perfect for indoor demolition. Standard is automayic swing operation to distribute the water mist over larger areas with a throwing distance of 10-15 m. The unit feature low power consumption. It´s connected to a standard 1 phase 230V wall socket. The water mist generated by this unit is extremely fine and therefore effective against airborne dust, but also for humidification when the ground/surface is sensitive for wetting. The MOSQUITO cannon are also suitable for odour control. The MOSQUITO generates a water mist with droplet sizes 10-50 microns with a mean droplet size of 25 microns. Droplet size: 10 - 50 microns. Mean droplet size: 25 microns

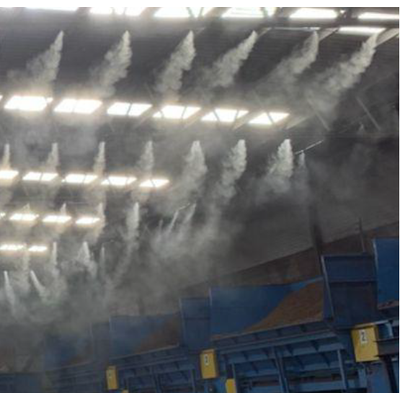

DUZTECH HS SYSTEM are a fixed system for reduction of dust particles. The flow rate is low and thereby the moisture content is kept low. Low flow rate is of great importance if the availability of water is limited. The water droplets are adapted for PM 2,5 - PM 10 particles.

The D80 is well suited for heavy duty applications such as Mining, Crushing and Demolition. Effective range 55-80 meter. Area covered 20.100 m². Power connector 63 A - 5 pin.

Fan motor rating 75 kW. Pump motor rating 3 kW. Current consumption 123 Amps. Throw 150 - 200 m. Dry weight 2 100 kG. Specified voltage 400 AC (380-415). Line connection L1-L2-L3-N-PE. Frequency 50 Hz. Control panel Start / Stop - Tilt up/down. Turn left/right - Auto turn on/off. Turn area setting. Remote control Hand held wireless remote control with. min range of 100 m at free line of sight. Elevation, HYDRAULIC -20 / +45˚. Automatic turning system 15˚ or 30˚ or 60˚. Turning area All around, no mechanical limit. Water flow 30 - 70 LPM (adjustable). Water connection Thread 1” BSP (DN25). Required in pressure 2 - 10 bar (min flow of 70 LPM). Water quality Portable / non portable. Operating temp. -25°C to +40°C (winter kit needed below 0°C ). Storage temp. -30°C to +60°. Length 3 200 mm. Width 2 200 mm. Height Transport: 2 540 mm. Operational: 2 930 mm.

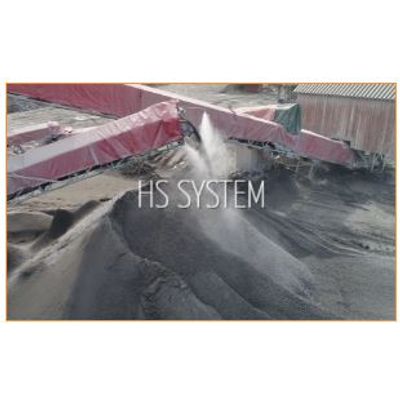

Duztech HS System are a fixed system for reduction of dust particles. The flow rate is low and thereby the moisture content is kept low. Low floe rate is also of great importance if the availability of water is limited. The water droplets are adapted for PM 2,5 - PM 10 particles.

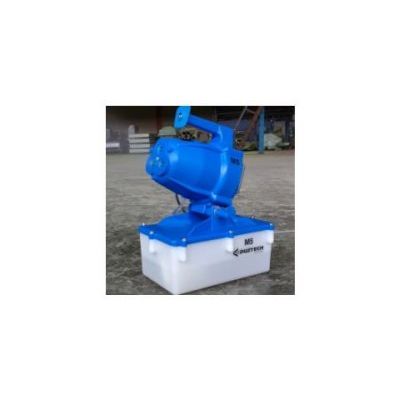

Duztech M5 mist cannon is a small mobile machine that can be moved by hand. Compact and a weight of only 2,9 kg makes it extremely mobile at indoor demolition sites. The intensity of the water mist are adjusted by a rotary switch. The built in water tank can be used for quick actions. If used in continues operation a water hose can be connected to the fixed water inlet. The unit feature low power consumption. It´s connected to a standard 1 phase 230V wall socket (optional 110V).

Duztech Mosquito mist cannon is a small machine that can be moved by hand. Compact and light in weight makes is perfect for indoor demolition. Standard is automatic swing operation to distribute the water mist over larger areas with a throwing distance of 10-15 m. The unit feature low power consumption. It´s connected to a standard 1 phase 230V wall socket. The water mist generated by this unit is extremely fine and there-fore effective against airborne dust, but also for humidification when the ground/surface is sensitive for wetting. The MOSQUITO cannon are also suitable for odour control. The MOSQUITO generates a water mist with droplet sizes 10-50 microns with a mean droplet size of 25 microns.
