Dyna Flex Inc. products

Recommended For: Medium pressure hydraulic and pneumatic systems. Meets or exceeds SAE 100R7 requirements.  For pneumatic or gaseous systems, use perforated (pin-pricked) hose.

Recommended for: Medium pressure hydraulic and pneumatic systems. Meets or exceeds SAE 100R8 requirements.  For pneumatic or gaseous systems use perforated (pin-pricked) hose.

The SAE 100R8 - 8110 Non-Conductive Thermoplastic Hydraulic Hose is engineered for hydraulic and pneumatic systems that require increased pressure ratings from 100R8 standards. Its oil-resistant thermoplastic elastomer inner core is reinforced with braided high tensile aramid fiber, providing strength and flexibility. The non-conductive, high abrasion-resistant polyurethane cover ensures durability and protection, making this hose ideal for demanding industrial applications within a temperature range from -40°F to +212°F (-40°C to +100°C).

Recommended For: Medium pressure hydraulic and pneumatic systems. Meets or exceeds SAE 100R8 requirements. Inner Core: Oil resistant synthetic polyester tube. Reinforcement: Braided high tensile aramid fiber. Cover: Orange high abrasion resistant polyurethane. Temperature Range: -40 degrees F. to +212 degrees F. (-40 degrees C. to +100 degrees C.).

Recommended For: Medium pressure hydraulic systems. Twin-line consists of a 1 inch SAE 100R7 hose fused with a 3/4 inch SAE 100R8 hose. Inner Core: Oil resistant synthetic polyester tubes. Reinforcement: Each hose has two braids of high tensile synthetic fiber. Cover: Bonded orange non-conductive high abrasion resistant polyurethane mold and fungus resistant polyether-urethane, featuring an anti-stick additive for a snag resistant slick surface. Temperature Range: -40 degrees F. to + 212 degrees F. (-40 degrees C. to +100 degrees C.).

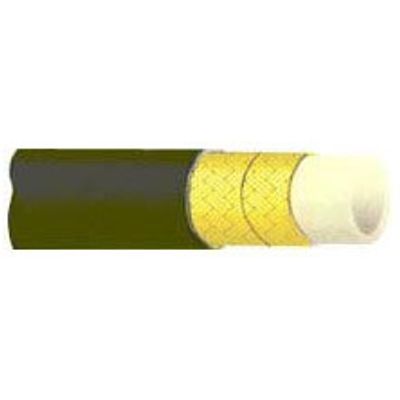

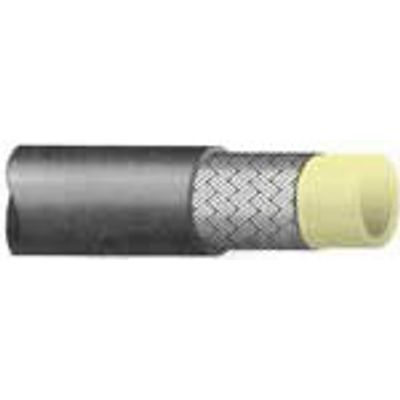

Recommended For: Medium pressure hydraulic and pneumatic systems. Meets or exceeds SAE 100R7 requirements. For pneumatic or gaseous systems, use perforated (pin-pricked) hose. Inner Core: Oil resistant synthetic polyester tube. Reinforcement: Braided high tensile synthetic fiber. Cover: Black high abrasion resistant polyurethane. Temperature Range: -40 degrees F. to +212 degrees F. (-40 degrees C. to +100 degrees C.).

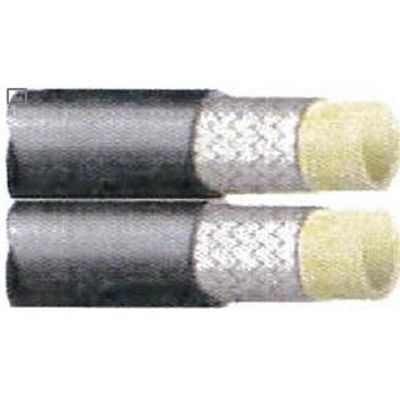

The Twin Line Thermoplastic Hydraulic Hose, designated as SAE 100R8 - 811T (Black) Twin Line, is engineered for medium pressure hydraulic and pneumatic systems, meeting or surpassing SAE 100R8 standards. Ideal for pneumatic or gaseous applications, perforated (pin-pricked) hose variants are recommended. Its construction features an oil-resistant synthetic polyester inner core, reinforced with braided high-tensile aramid fiber for robust durability. The hose is shielded by a black, highly abrasion-resistant polyurethane cover, ensuring resilience in diverse operational environments. It operates reliably within a temperature range spanning from -40 degrees F to +212 degrees F (-40 degrees C to +100 degrees C).

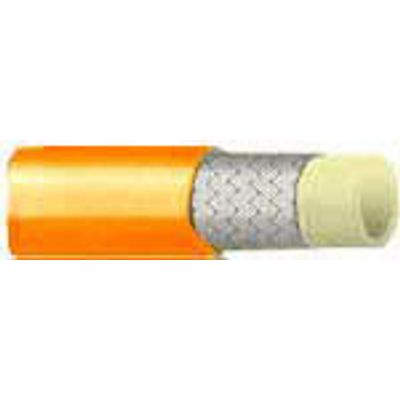

The Non-Conductive Twin Line Thermoplastic Hydraulic Hose, SAE 100R7 - 7110T (Orange), is designed for medium pressure hydraulic and pneumatic systems, meeting or exceeding SAE 100R7 requirements. It features an oil-resistant synthetic polyester inner core and is reinforced with braided high tensile synthetic fiber for durability. The hose is covered with orange non-conductive, high abrasion-resistant polyurethane, ensuring robust performance in various environments. It operates effectively within a temperature range of -40°F to +212°F (-40°C to +100°C).

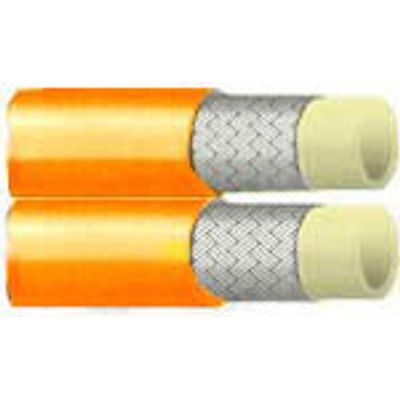

The Non-Conductive Twin Line Thermoplastic Hydraulic Hose, designated as SAE 100R8 - 8110T (Orange), is designed for medium pressure hydraulic and pneumatic systems, meeting or surpassing SAE 100R8 requirements. Its inner core consists of an oil-resistant synthetic polyester tube, reinforced with braided high tensile aramid fiber for added strength. The hose is shielded by an orange, highly abrasion-resistant polyurethane cover, ensuring durability in demanding environments. It operates effectively within a wide temperature range from -40°F to +212°F (-40°C to +100°C), making it versatile for various industrial applications.

We prioritize sourcing high-quality o-rings designed to meet the rigorous demands of various applications. Our commitment to precision and customer satisfaction drives us to work with trusted suppliers to secure o-rings that offer superior sealing capabilities, ensuring your systems operate efficiently and reliably. We offer a vast selection of o-rings, and our experts are dedicated to helping you find the right o-ring for your application, whether you require unique dimensions, materials, or sealing properties. We leverage our industry expertise and large distributor network to guide you through the selection process so you receive a product that precisely meets your requirements.
