The DSL-240 Dust Monitor is an optical instrument designed to measure the concentration of dust or particulate matter in the exhaust gas passing through a duct, stack or flue.

The DSL-340 Dust Monitor is an optical instrument designed to measure the concentration of dust or particulate matter in exhaust gas passing through a duct, stack or flue.

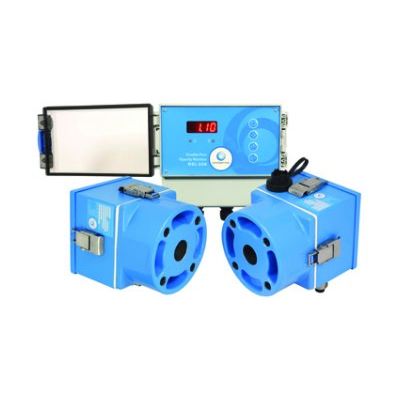

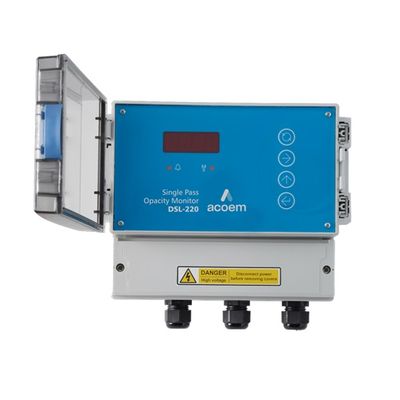

The DSL-220 Opacity Monitor is an optical instrument designed to measure the visible opacity of exhaust gas in a duct, stack or flue. The DSL-220 uses the single pass light transmission measurement technique, with Transmitter/Receiver arrangement. A light beam emitted from the Transmitter passes across the stack to a Receiver, which measures the intensity of the received light. Increased particulate or smoke density in the stack gas attenuates the transmitted light and causes the intensity of the received light to fall. This reduction in intensity is measured and presented as % opacity. The higher the level of particulate or smoke present, the more light lost and therefore, the greater the opacity.

The DSL-320 Opacity Monitor is an optical instrument designed to measure the visible opacity of exhaust gas in a duct, stack or flue. The DSL-320 uses the double pass light transmission measurement technique, with a folded beam Transceiver/Reflector arrangement. A light beam emitted from the Transceiver (TRX) passes across the duct, stack or flue to a Reflector, which then returns the light to the Transceiver where the intensity of the received light is measured. Increased particulate or smoke density in the stack gas attenuates the transmitted light and causes the intensity of the received light to fall. This reduction in intensity is measured and presented as % opacity. The higher the level of particulate or smoke present, the more light lost and therefore, the greater the opacity.

The DSL-460 Opacity Monitor is an optical instrument designed to measure the visual opacity and/or concentration of dust or particulate matter in an exhaust gas passing through a duct, stack or flue. The DSL-460 uses the double pass light transmission measurement technique, with a folded beam Transceiver/Reflector arrangement. A light beam emitted from the Transceiver (TRX) passes across the duct, stack or flue to a Reflector, which then returns the light to the Transceiver where the intensity of the received light is measured. Increased particulate density in the stack gas attenuates the transmitted light and causes the intensity of the received light to fall. This reduction in intensity can be presented as % opacity or when calibrated against standard reference measurements, this reduction in intensity can be used to calculate the particulate concentration and present a reading in mg/m³.

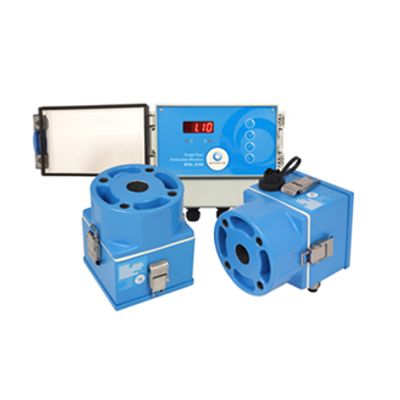

The DSL-230 Particulate Monitor is an optical instrument designed to measure the concentration of dust or particulate matter in an exhaust gas passing through a duct, stack or flue. The DSL-230 uses the single pass light transmission measurement technique, with Transmitter/Receiver arrangement. A light beam emitted from the Transmitter passes across the stack to a Receiver, which measures the intensity of the received light. Increased particulate density in the stack gas attenuates the transmitted light and causes the intensity of the received light to fall. When calibrated against standard reference measurements, this reduction in intensity can be used to calculate the particulate concentration and present a reading in mg/m³.

The DSL-330 Particulate Monitor is an optical instrument designed to measure the concentration of dust or particulate matter in an exhaust gas passing through a duct, stack or flue. The DSL-330 uses the double pass light transmission measurement technique, with a folded beam Transceiver/Reflector arrangement. A light beam emitted from the Transceiver (TRX) passes across the duct, stack or flue to a Reflector, which then returns the light to the Transceiver where the intensity of the received light is measured. Increased particulate density in the stack gas attenuates the transmitted light and causes the intensity of the received light to fall. When calibrated against standard reference measurements, this reduction in intensity can be used to calculate the particulate concentration and present a reading in mg/m³.

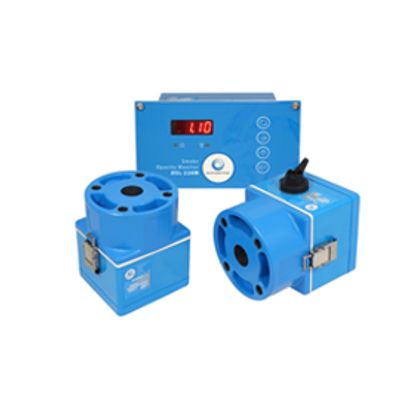

With Port Authorities around the world increasingly regulating emissions from ships, the DSL-220M Smoke Opacity Monitor is an optical instrument specifically designed to measure the visible opacity of smoke emissions within the marine industry. The DSL-220M uses the single pass light transmission measurement technique, with Transmitter/Receiver arrangement. A light beam emitted from the Transmitter passes across the stack to a Receiver, which measures the intensity of the received light. Increased smoke density in the stack gas attenuates the transmitted light and causes the intensity of the received light to fall. This reduction in intensity is measured and presented as % opacity. The higher the level of smoke present, the more light lost and therefore, the greater the opacity.

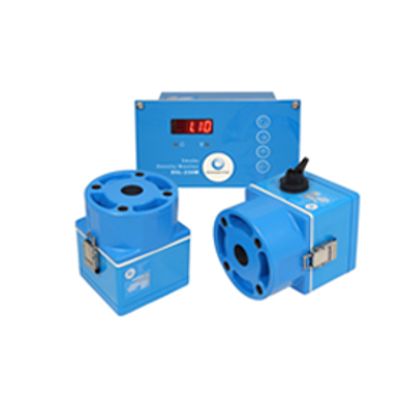

With Port Authorities around the world increasingly regulating emissions from ships, the DSL-230M Smoke Density Monitor is an optical instrument specifically designed to measure the concentration of smoke and particulate emissions within the marine industry. The DSL-230M uses the single pass light transmission measurement technique, with Transmitter/Receiver arrangement. A light beam emitted from the Transmitter passes across the stack to a Receiver, which measures the intensity of the received light. Increased smoke density in the stack gas attenuates the transmitted light and causes the intensity of the received light to fall. When calibrated against standard reference measurements, this reduction in intensity can be used to calculate the smoke density and present a reading in mg/m³.
