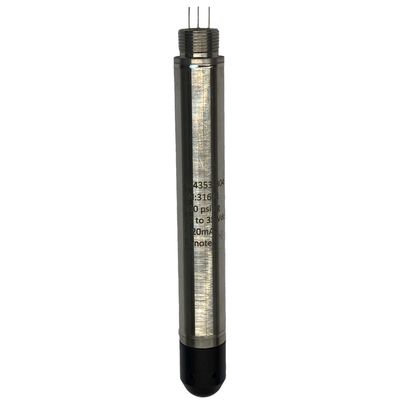

The Dynotek Slimline Submersible Pressure Transducer is a highly reliable and accurate unit designed for long-term submersion in water wells, coal bed methane wells, reservoirs and other deep water applications. It is a sealed gauge configuration, giving maximum protection from water intrusion for long life. Unlike vented gauge configuration, the Slimline is hermetically sealed, with no open air path to introduce moisture into the delicate electronics of the sensor. Slimline is only 0.725 inches in diameter, making it easy to insert into sounding tubes, an access hole in a pump base, or into 1 1/4″ diameter stilling well tubing. If the sensor fails due to workmanship while under the three-year warranty, a new sensor will be provided and connected to the customer’s cable at no charge excluding freight.

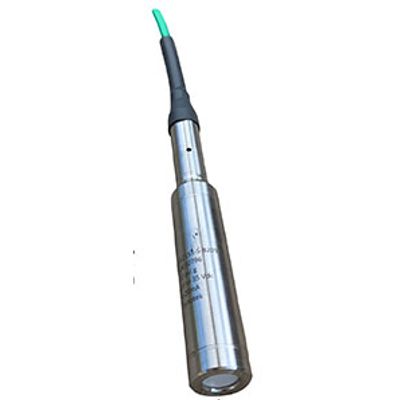

The Dynotek Slimline “G” Submersible Pressure Transducer is a highly reliable and accurate unit designed for long-term submersion in water wells, tanks, cisterns, and flumes. It is a vented gauge configuration, giving immunity from pressure variations due to altitude and atmospheric changes which are read through a vent tube. Slimline is only 0.725 inches in diameter, making it easy to insert into a sounding tube, an access hole in a pump base, or into 1 1/4″ diameter stilling well tubing. Surface mount electronics with the 316 stainless steel or optional titanium body enables minimum sensor size with improved reliability. The vented signal cable results in a depth and level sensor with the highest integrity at low cost. If the sensor fails due to workmanship while under the three-year warranty, a new sensor will be provided and connected to the customer’s cable at no charge, excluding freight.

Our 1″ diameter “freeze-proof” transducer has a ceramic diaphragm for high-solids water, which allows deployment in harsh weather environments without exposure to damage from freeze/thaw and wet/dry cycles. Dynotek’s stainless or titanium pressure transducers are recognized for their excellent performance in shallow or deep settings. Our unique sealing method eliminates the possibility of water intrusion into the electrical connection between sensor and cable. Because of this, Dynotek provides a 3-year Workmanship Warranty on all pressure transducers. Vented sensors for shallow applications (up to 115 feet of water) are available in pressure ranges from 1.0 psisq to 100 psisq. Sealed gauge sensors are available from 30 psisg to 5000 psisg.

18 AWG two conductor shielded, kevlar strength member PE jacket. Conductors 18 16/30 bare copper. 2 18-gauge insulated wires, one 20 AWG tinned copper drain wire, kevlar fiber. All wrapped mylar-backed aluminum foil, foil side facing in. Jacket: Green LLDPE. Finished diameter: .290″ to .300″ dead maximum. Agency Approval: UL AWM style 20143 600 volt.

Vented cable with clear polyvent tube. 18 AWG two conductor shielded, kevlar strength member PE jacket. Conductors 18 16/30 bare copper. 2 18-gauge insulated wires, one 20 AWG tinned copper drain wire, kevlar fiber. All wrapped mylar-backed aluminum foil, foil side facing in. Jacket: Green LLDPE. Finished diameter: .290″ to .300″ dead maximum. Agency Approval: UL AWM style 20143 600 volt.

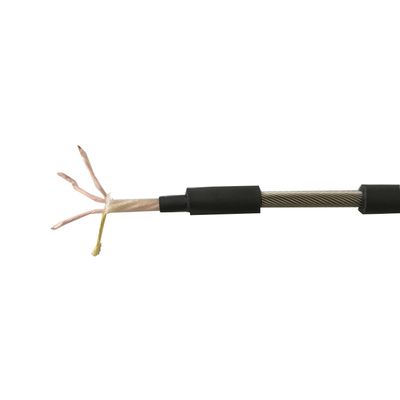

No stretching under load. Cable Diameter 3/16” nominal 4.80 mm nominal. Minimum Sheave Diameter 10” 25 cm. Temperature Rating 300 F 149 C. Insulation and Core Jacket Material poly. Cable Weight in Air 61 lbs/Kft 90 Kg/Km. Cable Weight in Water 50 lbs/Kft 74 Kg/Km. 316 stainless double-helical wrapped wireline. Four 22ga insulated conductors.

Programmable control with display. Modular for easy field upgrade. Can be used as a field pump testing unit.

The Data Manager 1100C comes complete with an “In the Cloud” interface to monitor, trend, download logs, and obtain alarms either by text or email message. In addition, the Cloud platform provides for remote configuration and troubleshooting of the device and its attached sensor(s). It is also possible to turn on/off the relay output from the Cloud interface to remotely control pumps, motors and valves. Coupled with a Dynotek Slimline transducer or the sensor(s) of choice, the system provides a very cost-effective telemetry solution for remote ground and surface water reservoir, tank and other fluid monitoring.

The Dynotek 1000 is a rugged, low cost industrial transducer that is ideal for oil and gas field applications. With an accuracy of ± .25% and exceptional stability, the 1000 is a highly reliable sensor for measuring gas casing pressure or line pressure at the wellhead, pipeline pressure, compressor output or any other measurement requiring high accuracy and reliability at a reasonable cost. The 1000 is available with intrinsically safe or explosion proof rating for hazardous environments. The 1000 is available in 4-20 mA current output and 1-5 volt output versions. Pressure ranges available are from 0-60 psi or 5000 psi. Delivery from stock or 1-2 weeks for larger orders.

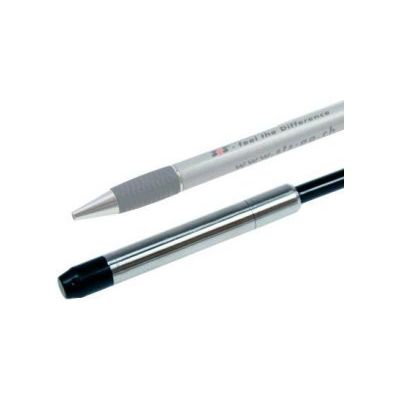

The MTM/N10 depth and level pressure sensor is available for applications where space is very limited. The housing diameter of 0.39 inches offers the user an ideal high performance level measurement in small diameter, i.e. 1/2“ monitoring wells, stand pipes and bore holes. The stainless steel construction and integral polyurethane cable provide a reliable long term solution for these diffi cult-to-measure applications. Kevlar is used as a cable reinforcement to avoid any elongation, particularly when long lengths of cable are required for deep wells. Long term stability of typically ±0.1% per year also contributes toward a maintenance-free installation.
