e-con Systems™ Inc. products

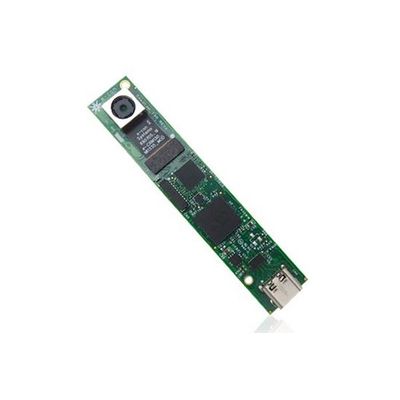

See3CAM_160 is a 16MP color autofocus USB 3.1 Gen 1 camera based on the Sony 1/2.8" IMX298 CMOS image sensor. This small form factor camera has a dedicated Inbuilt high-performance Image Signal Processor (ISP) chip tuned to bring out the best-in-class image quality and color reproduction, making it adaptable to different lighting conditions. This 16MP camera is UVC compliant making it work with the standard drivers available in Windows and Linux OS without any additional driver installation. This compact single-board camera with features like high resolution, auto focus, zero shutter lag, and digital zoom is ideal for applications such as Industrial rugged tablets, Telepresence, Document Scanners / OCR Reader, Skin scanners, Access control systems, etc.

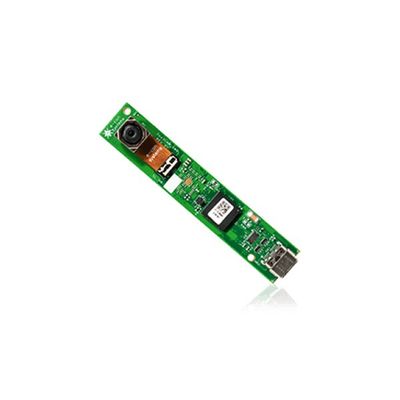

See3CAM_130 is an UVC-compliant AR1335 sensor based 13MP autofocus USB camera with iHDR support. It supports 4K Ultra HD (3840x2160) at 30fps over USB3.1 Gen1 in compressed MJPEG format. This See3CAM_130 can also stream Full HD (1920x1080) at 60fps and HD (1280x720) at 60fps in both uncompressed and compressed MJPEG formats. This camera can achieve up to 816fps for custom Region of Interest (ROI) resolutions. This high resolution camera is also backward compatible with USB 2.0, although in USB 2.0, this camera supports fewer resolutions at lower frame rates. This 13MP camera has a dedicated, high-performance Image Signal Processor chip (ISP) that performs all the Auto functions (Auto White Balance, Auto Exposure control) in addition to complete image signal processing pipeline that provides best-in-class images and video and the MJPEG compression.

e-CAM160A_MI298_MOD is a high performance, 16MP color Autofocus 4-lane MIPI CSI-2 camera module. This small form factor camera module is based on 1/2.8" Sony Exmor RS IMX298 CMOS image sensor with 1.12μm pixel size. The e-CAM160A_MI298_MOD is a flex PCB camera module and VCM Autofocus lens is soldered directly on to the board.

The e-CAM200_CUMI2020C_MOD is a 20MP camera module featuring the AR2020 image sensor from onsemi®. This module is designed to deliver exceptional image quality with its 20MP resolution and fixed focus capability. The e-CAM200_CUMI2020C_MOD ensures efficient image processing and optimization. It offers versatile interface options, supporting GMSL and MIPI, providing seamless integration capabilities for a wide range of applications. With its high frame rate of 20MP@30 fps, small pixel size of 1.4μm pixel stacked BSI technology, and enhanced NIR performance, this camera module is well-suited for various applications such as people monitoring, video conferencing, and factory automation.

EdgeECAM50_USB is a ready-to-use Edge AI camera for pre-analytical tasks, such as tube classification, cap identification, liquid level detection, etc. This 5MP camera has inbuilt dual core processor which allows running AI and machine learning algorithms directly on the camera itself. This Edge AI camera is a highly flexible solution for computer vision applications such as image classification, object detection, and more, and it supports a variety of frameworks including TensorFlow Lite Micro and DeepviewRT^#.
