EA Instruments Limited products

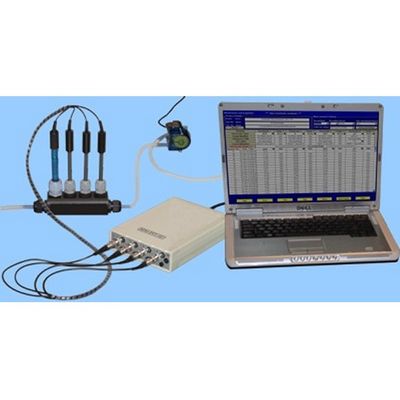

The fluid to be analyzed is pumped by a Peristaltic Pump through a Flow Cell. The flow cell holds Electroanalytical Sensors. The sensors are connected to a Sensor Electronic. The sensor electronic is connected to a Computer. Our software stores data in .txt (.csv) format which can be further processed with Excel and other software packages.

Precise Monitoring / Recording of the pH value in all vessels during the whole process. Easy to operate, because the system is based on the popular Microsoft Windows environment. Works with all pH electrodes including micro electrodes. The data are stored automatically in .txt / .csv formst and can easily exported and printed.

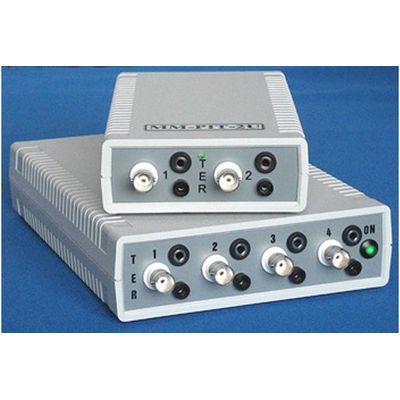

2 Electrode and 2 Temperature Channels. 2 inputs for external Reference electrodes. The amplifiers are fully isolated from the computer. Suitable for all types of Electrodes, including Micro-electrodes. Supports all types of Ion-selective Electrodes.. End-user price £ 500.00. Please see offer for more details. This price includes the Instrument with attached. 1.8 m USB cable, Software, a pH electrode and Temperature sensor.

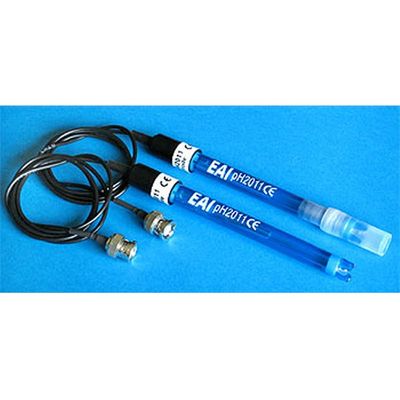

The EAI pH2011 is a pH Electrode suitable for General Purposes. Gel-filled robust Plastic Body with Protective Skirt. Single Junction Ag/AgCl Gel Reference with Fiber/Pellon liquid junction, provides a stable, low-leakage reference. Temperature Range 0 to 80°C. pH Range 0 to 14 (Linear Range 0.5 to 13.5). Dimensions: 12 x 120 mm. BNC connector. 1 m Cable.

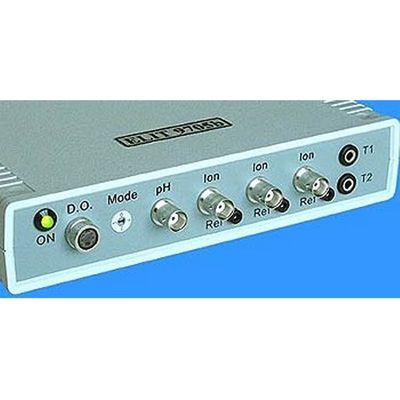

Sensor Connections: pH, ORP and Ion-selective Electrode: BNC Connectors. External Reference Electrodes: 2 mm sockets. Dissolved Oxygen Sensor: 4-way Mini-DIN socket. Temperature Sensor: Isolated 3.5 mm socket. Sensors: pH, ORP and Ion selective Electrodes: Accepts practically all Types of electrode, inclding Micro electrodes. Dissolved Oxygen Sensors: Galvanic or Polarographic, with or without built-in PT1000 Temperature Sensor. Please specify Type and Make of the preferred sensor. Temperature Sensor: Accepts 2 types, NTC Thermistor and PT1000 temperature sensor Measuring Range and Resolution: pH Range: 0 to 14, Resolution: 0.01 pH unit. ORP Range: -1000 to +1000 mV, Resolution: 0.1 mV. Ion-Concentration: depending on the Electrode, all types of Electrodes can be connected. Dissolved Oxygen: depending on the Sensor, most types of D.O. Sensors can be connected. Temperature Range: 0 to 100°C, Resolution 0.1°C.
