Eagle Microsystems products

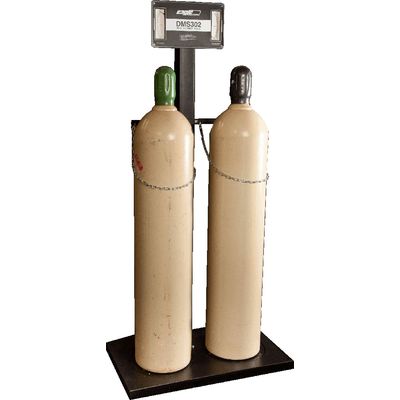

The Eagle Microsystems Model DMS302 is a mechanically actuated dual cylinder scale for weighing compressed gas cylinders such as for chlorine and sulfur dioxide. It is a true high accuracy scale with a three-beam linkage system. The scale has two independent, solid PVC weighing platforms with dedicated, high-resolution indicators and mechanical tare adjustments. Materials of construction have been selected to insure optimum in corrosion resistance in the harsh water and wastewater treatment and industrial chemical feed environments. The DMS302 is the standard of the industry in cylinder weighing and is suitable for any compressed gas cylinder application within its dimensional and weight limitations.

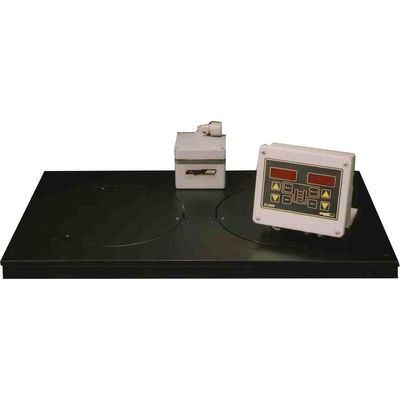

The DCS302 dual cylinder scale is a rugged electronic scale for two compressed gas cylinders, providing an independent, accurate, and easy-to-read weight on each weigh platform. The DCS302 electronic cylinder scale is provided with an EI-2000 Dual Channel Indicator for local weight display and parameter adjustment. The DCS302 electronic cylinder scale has consistently been chosen as a favorite for weighing chlorine gas cylinders.

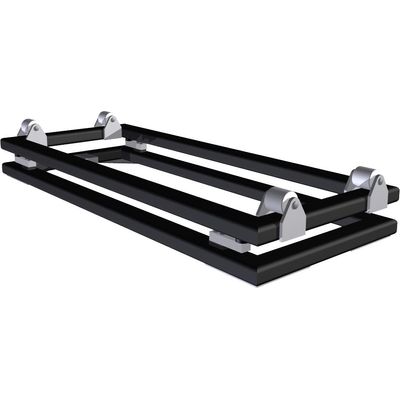

The WT3600 Weigh Trunnion Scale is an easy-to-install, modular, electronic scale for weighing one ton chlorine containers and similar cylindrical chemical containers. Each weigh trunnion consists of two special roller trunnions, each of which is fitted with an environmentally-sealed, stainless steel, strain gage load cell, electrically connected to provide an output signal which represents the weight of the cylinder and its contents. Load cells are shock mounted in rigid castings to prevent overload and shock damage.

The Eagle Microsystems Model C3600P Precision Electronic Single Ton Container scale is designed specifically for the water and wastewater industry. It is built with a rugged, corrosion-protected, steel box frame for years of reliable service. Weighing is accomplished using four precision, stainless steel, strain gage load cells to insure accuracy in excess of 0.1% of rated load. In addition, overload stops and all stainless steel hardware are standard on every scale. The scale is capable of weighing either chlorine or sulfur dioxide containers with a maximum capacity of 4000 lbs (1800 kg). If you are looking for the optimum device to control your expensive chlorine inventory, your only choice is the C3600P!

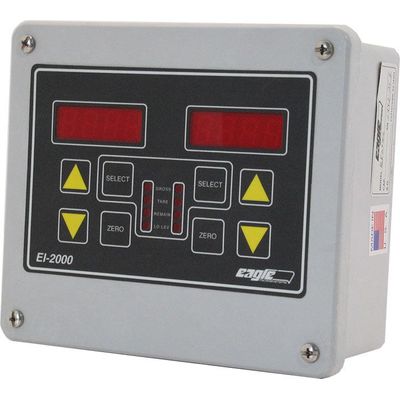

The Eagle Microsystems Eagle-Eye Digital Display Indicator/Transmitters are high precision, microprocessor-based indicator/transmitters for use with any Eagle electronic scale. These instruments are also compatible with most electronic scales of other manufacture. The family consists of the Model EI-1000 Single Channel and the Model EI-2000 Dual Channel Display units. Large, bright LED displays and highly accurate 4-20 mAdc outputs scalable to any required range characterize both instruments. Both displays and outputs are continuously available. The user-friendly keypad permits the indicator to display: Amount Used, Amount Remaining, Total Weight, Gross Weight, and Rate by Weight.

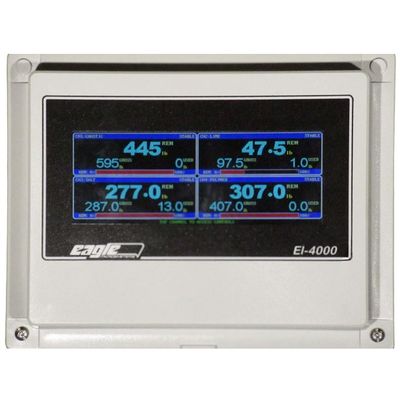

The Eagle Microsystems EI-4000 is a precision multi channel indicator intended to provide many advanced features while providing cost savings through the use of a single indicator for multiple scales.  The instrument provides a high resolution touchscreen display capable of showing up to 12 channels simultaneously. Amount used, amount remaining, gross weight, tare weight, net remaining, daily usage, and rate of feed are all displayed and tracked by the indicator. Daily usage over the last 31 days is also available.

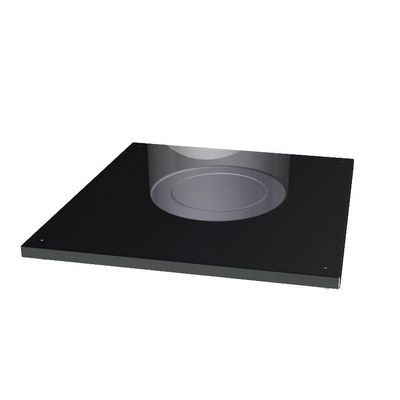

The Eagle Microsystems` Model DS750 `ELIMINATOR` is designed to survive in the hostile water and wastewater plant environment! It is a rugged, low profile, high accuracy, Type III drum scale. Clearly a superior design, the DS750 incorporates features that eliminate most of the problems that plague similar competitive scales. The solid, non-corroding, impact resistant PVC plastic base is warranted for a full 5 years. Paired with any of Eagle Microsystems electronic indicator/transmitters this scale is your most cost effective and accurate solution for chemical inventory control.

The Eagle Microsystems precision LP-4300  platform scales are designed for applications requiring accuracies of 0.1% or better. The low profile LP-4300 scale can be used with liquids or dry powders, because accuracy is unaffected and independent of container positioning. The LP-4300 scale uses a rugged 4 load cell platform design with a 200% overload capacity. Thanks to the LP-4300 platform scales design, it is incredibly easy to install and maintain. Leveling the LP-4300 is performed from the top of the scale deck on, on site, with just a simple screwdriver. The weighing surface is protected by a textured Polane finish. The load cells, leveling feet, and hardware are stainless steel to ensure longevity in harsh environments. Use with Eagle Microsystems’ single, dual, or multiple channel display/transmitters.

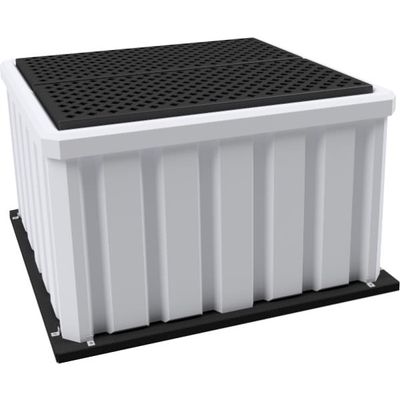

Eagle Microsystems LP-4300 TSC provides an integrated way of containing IBC tote spills and weighing the amount of liquid yet to be fed into any process. The scale itself uses a four load cell design allowing accurate weight readings regardless of how the tote is positioned on the containment deck. The containment vessel is constructed with translucent white low-density polyethylene, allowing visual inspection for spills of product. The spill containment pallet resists UV degradation, corrosion, and many common chemicals. Use with Eagle’s single, dual or multiple channel display/transmitters.

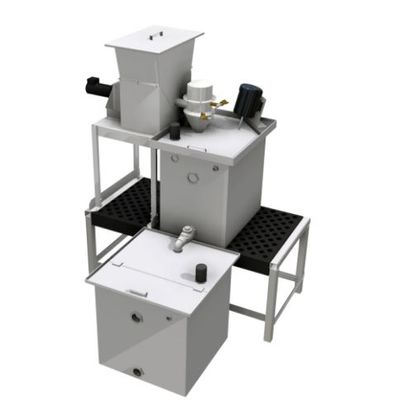

With the Eagle Microsystems VF-100 Volumetric Feeder you get all the features you need, plus much more. Compared to other feeders, the VF-100 provides more of what you want: better accuracy, higher reliability, longer life, more durable construction – and less of what you don’t, maintenance. No lubrication, greasing or oiling is required, no belts, gears, sprockets, or chains to maintain. The VF-100 is simple, reliable, hassle-free, and warranted for a full two years.
