Eagle Tanks, Inc products

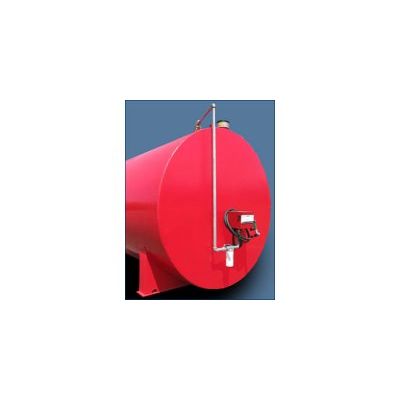

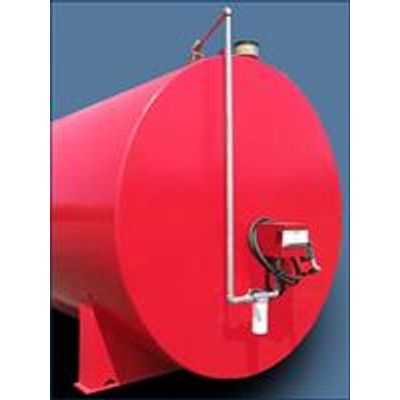

Fuel pump, meter and totalizer (110VAC/15gpm) with pick up tube & filter assembly. Upgraded auto shutoff nozzle for leaded/diesel with swivel and breakaway. Emergency vents & atmoshperic double outlet vents with extensions to 12`. Lockable fill cap. Overfill prevention valve with 2` cam lock adapter and dust cap. Fill spill container. Remote Kit: anti-siphon valve and plumbing required to relocate the pump to the side of the tank.

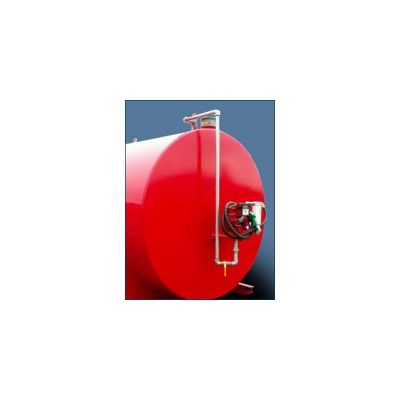

Fuel pump, meter and totalizer (110/220 VAC 1-phase/30gpm) with pick up tube & filter assembly. Upgraded auto shutoff nozzle for leaded/diesel with swivel and breakaway. Emergency vents & atmoshperic double outlet vents with extensions to 12`. Overfill prevention valve with 3` cam lock adapter and dust cap. Remote Kit: Anti-siphon valve and plumbing required to relocate the pump to the side of the tank.

Submersible pump (230V/1phase) available in 1/3 hp, 3/4 hp, 1 1/2 hp, and 2 hp. Overfill prevention valve with 3` cam lock adapter and dust cap. Upgraded auto shutoff nozzle for leaded/diesel, swivel, breakaway and hose. Emergency vents & atmospheric double outlet vents with extensions to 12`. Dispenser Kit: dispenser with meter & totalizer, filter, anti-siphon valve and plumbing required to locate to the side of the tank.

Submersible pump (230V/1phase) available in 1/3 hp, 3/4 hp, 1 1/2 hp, and 2 hp. Overfill prevention valve with 3" cam lock adapter and dust cap. Upgraded auto shutoff nozzle for leaded/diesel, swivel, breakaway and hose. Emergency vents & atmospheric double outlet vents with extensions to 12`. Dispenser Kit: dispenser with meter & totalizer, filter, anti-siphon valve and plumbing required to locate to the side of the tank. UL Listed.

Accessories required to install an overfill prevention valve. This is required for accessory for tanks with 4,000 gallons or higher capacity.

Horsepowers Available: (230V/1-phase) 1/3 hp, 3/4 hp, 1 1/2 hp, and 2 hp. Fuel Compatibility: Diesel, Gasoline, Ethanol, Methanol. UL cUL listed.

From 6 to 40 GPM. Meter and register. 110/230 VAC 60Hz.

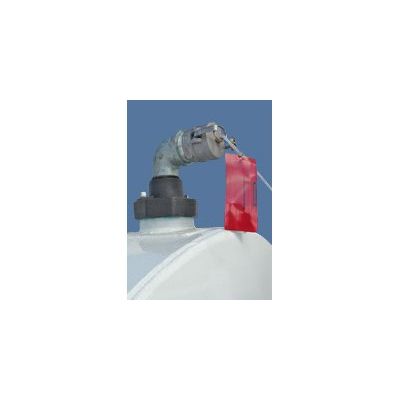

Installed at the fill port. Shuts off the flow of product when the liquid level reaches a preset warning level (90 - 95% full). This Valve Complies With the Following Codes: NFPA 30, 30A, UFC, BOCA, SBCCI/SFC and PEI /RP2000.
