69 products found
Eaton Corporation Products
-
Industrial Wireless
-
ERRTS - Flood Warning System
This is an Australian product only. The Event Reporting Radio Telemetry System (ERRTS) is a proven remote monitoring system that provides real time reporting of a wide range of environmental conditions. Environmental parameters are measured in the field and transmitted over long distance by radio, to computer stations which display and analyze the information. ERRTS conforms to the international ALERT and enhanced IFLOWS specification, which details ...
-
Aerospace
-
Eaton - Aerial Refueling Systems
Eaton is a world leader in aerial refueling sub-systems including offload pumps, nozzles, couplings, regulators, shut-off valves, inflight refueling pumps and other associated ...
-
Hydraulics - Cylinders
-

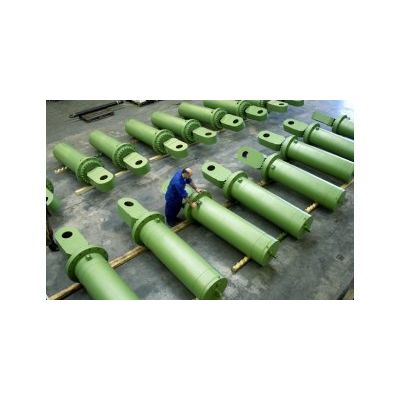

Eaton - Model XL Series - Custom Hydraulic Cylinders
Eaton’s XL series hydraulic cylinders have been deployed on applications exposed to some of the world’s most brutal conditions, including offshore oil exploration, mining, mineral processing, and hydropower dams. Our large selection of specialty coatings combined with cylinder manufacturing capability up to 22 meter stroke lengths makes Eaton one of the premier XL hydraulic cylinder manufacturers in the world. Whether you are an original ...
-
Electrical Sensing and Controls
-
Avionic Switches and other Switches
Eaton switch design is optimized for OEM and MIL Spec customer applications and can accommodate any aircraft, commercial or military requirement. Options include contactless, extended-life, snap-action, tapered, illuminated, and limit switch versions. They can be ordered individually or in an integrated panel: Switches, NVIS ...
-

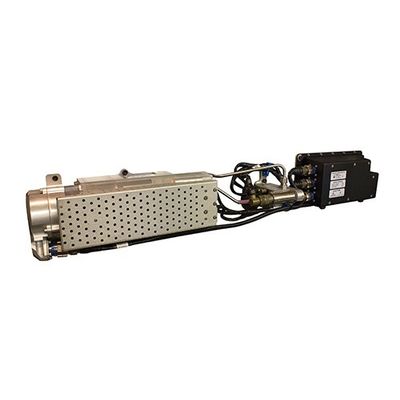

Door Actuation
Eaton is a leading supplier of door systems and components across the aerospace market. The electromechanical capabilities are central to Eaton"s large cargo door product line - a line that continues to provide superior performance. Eaton"s systems, sub-systems, and components are used to control, open, close, lift, latch and/or lock all types of doors, including: cargo, passenger, environment control systems (ECS), landing gear, engine cowl, weapons ...
-
Ethernet Switches
-
Model 1050E-T - 5-Port Unmanaged Switch
The 1050E-T is a 5-Port basic Industrial Ethernet Switch designed to meet the demands of industrial environments, yet is easy to use and simple to install with DIN rail or wall mount options. The 1050E-T supports Ethernet switching to IEEE 802.3 10Base-T and 802.3u 100Base-TX specifications with full-duplex performance and flow control to ensure maximum performance for unmanaged switch deployments.Designed for the demands of Industrial applications, ...
-
Model 2080E-T - 8-Port Managed Ethernet Switch
The 2080E-T is a 8-Port Industrial Ethernet Switch designed to meet the demands of industrial environments, yet is easy to use and simple to install with DIN rail or wall mount options. This Managed Ethernet Switch is equipped with 8 Fast Ethernet ports and an innovative self-recovery scheme ideal for quickly recovering a fault in a Ring ...
-
Mobile Machine Control Expansion Modules
-
OMNEX - Model D160 - 19-Function Expansion Module Radio Remote Control
The OMNEX D160 Expansion Module allows for the addition of extra I/O to any OMNEX FHSS Deutsch enclosure remote control system. The D160 provides 2 additional proportional outputs and up to 17 additional digital ON/OFF outputs. It is fully customizable to operate momentary, latched, toggled and interlocked functions and provide current, voltage or PWM output ...
-
OMNEX - Model D180 - 14-Proportional Function Expansion Module Radio Remote Control
The OMNEX D180 Expansion Module allows for the addition of extra I/O to any OMNEX FHSS Deutsch enclosure remote control system. The D180 provides up to 14 additional proportional outputs that can be configured to operate as digital functions. The D180 module is fully customizable to operate momentary, latched, toggled and interlocked ...
-
Mobile Machine Control Receivers
-
Model R160 - 19-Function Remote Control Receiver
The OMNEX R160 FHSS Receiver has 19 I/O combinations and an E-Stop output for safe emergency shutdown to outputs and external circuits. The R160 receiver is designed to be powered from a 12VDC or a 24VDC system and is capable of operating 2 proportional outputs and up to 17 digital ON/OFF ...
-
Mobile Machine Control Transmitters
-
Model T110C - Handheld10(20)-Function Radio Remote Control Transmitter
An easy-to-use FHSS weatherproof remote control with 10 button / 20 function controls and three shift functions for momentary, non-latched and latched controls. It features three configuration modes to control power up and shut down, can be easily recharged and features an impact resistant plastic exterior designed for demanding industrial ...
-
Model T150C - Portable 14-Function Radio Remote Control
An easy-to-use, 14-function FHSS remote control featuring a Hall Effect trigger for smooth proportional control. This configurable transmitter can be designed with momentary or latched switches and a potentiometer. Each T150 transmitter uses a unique ID code to ensure that no two systems will conflict on a job site. Optional tether cable models are ...ELPRO - Model 450U-E - Wireless Ethernet Modem

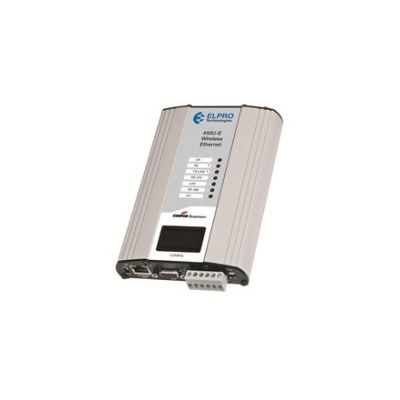

The ELPRO 450U-E Wireless Ethernet Modem is a robust, licensed and license-free wireless transceiver capable of ultra-long range communications. Operating at 360 to 512MHz, and up to 5.0W, the ELPRO 450U-E is optimized for throughputs of up to 19.2kbps which provides robust and secure two-way wireless communications in extremely challenging outdoor environments over obstructed paths typical of remote monitoring and control ...
Piston Open Circuit-Mobile
Model X20 - 620 Series - Piston Open Circuit-Mobile
The top of the Eaton X20 portfolio is the 620 series—a powerful pump built to meet flow requirements of the most rigorous and demanding medium-pressure mobile systems, including Tier IV applications. With two optional displacements—74 cc (4.50 cu in) and 98 cc (5.98 cu in)—operating pressures up to 280 bar (4,000 psi) and input speeds up to 2,400 rpm, the 620 Series pump excels in earthmoving equipment, utility vehicles and other ...
Filter Bags
Model DURAGAF - Filter Bags
The DURAGAF high performance, needled felt bag filter media lasts 2-5 times longer than ordinary felt media. Available in polypropylene (POXL) or polyester (PEXL), these 100% welded bags, with Eaton’s SENTIINEL ring, seal better in critical conditions. Models (POXLF and PEXLF) are FDA and EC compliant filter bags for food ...
Model MAX-LOAD - Pleated Filter Bags
MAX-LOAD pleated filter bags are manufactured from nominal rated polypropylene or polyester extended-life needle felt. The exceptional construction increases the filter bags dirt-holding capacity and lifetime by up to ten times more than standard needle felt filter ...
Enclosed Filter Systems
BECO INTEGRA - Model PLATE 400 DC - Enclosed Filter Systems
Eaton's depth filtration system for critical filtration tasks in the pharmaceutical, biotech, chemical, cosmetic, and food ...
Industrial Valves
Model Axis Pro - Proportional Directional Valves
Flexibility : Unique 4-level modular design supports multiple architectures. Reliability : Designed to eliminate air bleeding; features a best in class ambient temperature rating of 85°C. Easy Diagnostics : Includes embedded pressure and temperature sensors; available with field bus communication. High Performance : Independent, on-board axis controller for improved flow ratings over the KB ...
Water Cooled Brakes
Model WCSB - Water Cooled Brakes
Engineered to excel in heavy-duty braking and tensioning applications, Eaton Airflex WCSB brakes are air-applied, water- and air-cooled, multiple-disc brakes. With greater braking and tensioning control, Eaton Airflex WCSB elements are perfect for drawworks, mooring systems, log yarders and other heavy-duty ...
Model WCB2 & WCBD - Water Cooled Brakes
Even the most severe clutch and brake applications are no match for Eaton Airflex WCB2 and WCBD disc-type, externally-cooled units. Featuring a specially formulated friction material that interfaces with a copper alloy surface to virtually eliminate stick-slip, these water-cooled brakes can absorb and dissipate huge thermal loads. Whether they’re used in dynamometers, logging equipment, marine mooring systems, slip clutches, tension brakes, ...
Model WCS - Water Cooled Brakes
For the big jobs—drilling rigs, logging equipment, mooring systems—use components that are built to last: Eaton Airflex WCS disc-type brakes. Externally-cooled, spring-applied Eaton Airflex WCS brakes are designed to absorb and dissipate thermal loads from even the most severe braking and tensioning applications, providing continuous slip service all day ...
Eaton - Model Airflex - Water-Cooled Third Generation Brake
The Water-Cooled Third Generation Brake is disc type, externally water cooled dynamic brake designed to dissipate extremely high thermal loads. The improved internal design and increased water flow allow improved fluid dynamics with better energy dissipation characteristics. The new brake is available with the Eaton’s Airflex dual piston design as well as the air and water cooled combination style brake that acts as both a dynamic tensioning and ...
Hose
Eaton - Model SAFESHIELD EC910 - High Pressure Waterblast Hose
Choose the natural, eco-safe alternative and get the highest performance waterblast hose. High pressure waterblasting is gaining popularity as a non-polluting safe method for industrial cleaning, stripping and removal of corrosion, paint, chemical and organic residues. Due to the extremely high pressures found in waterblast applications, safety is key and Eaton’s new SAFESHIELD waterblast hose is designed for ultimate protection while providing ...
Eaton - Model EC525 AQP PLUS - Hi-Temp 4-Spiral Hose
Eaton’s AQP PLUS elastomer is the compound used in the new EC525 high performance 4-spiral hose. Over the years, Eaton’s AQP hose has provided the best solutions for hydraulic hose applications where fluid compatibility and high temperature are problematic. The AQP PLUS compound provides longer hose life with a broader range of hydraulic fluids versus standard rubber ...
Eaton - Model Synflex - SubSea High Pressure Hose
Innovative, non-collapsible Eaton Synflex subsea hoses are built to meet and exceed the most demanding industry requirements, including API 17E. Specializing in producing long, continuous lengths of hose, our world-class operations have manufactured millions of feet of high-quality subsea hose for diverse applications all over the ...
Pro-FX Electronic Controls and Software
Model HFX - Programmable Controllers
Take control of every system function, whether it’s on a harvester, dump truck, crane or other mobile on- or off-highway equipment—that’s the power and versatility of Eaton HFX programmable controllers. With four models all featuring powerful 32-bit processors, configurable CAN channels and an industry leading software configurable I/O system, Eaton HFX Programmable Controllers are a solution for the most demanding ...
Model E32 - Electronic Switch Modules
Offering a high level of flexibility, the above-panel electronic multiplex switch module (eSM E32) covers your wide range of switch and indicator applications using standard or custom graphics, as well as a full range of circuits and illumination options. The above-panel eSM E32 has top, center and bottom LED lighting with software that offers advanced circuit and lighting flexibility, including dimming and flashing options via J1939 CANbus ...
Model E31 - Keypad Electronic Switch Modules
Offering an increased degree of sealing to IP68 from the front and rear of the module, the keypad electronic multiplex switch module (eSM E31) meets severe environment applications with exceptional operator feedback; tactile, audible and visual with up to four independent indicator ...

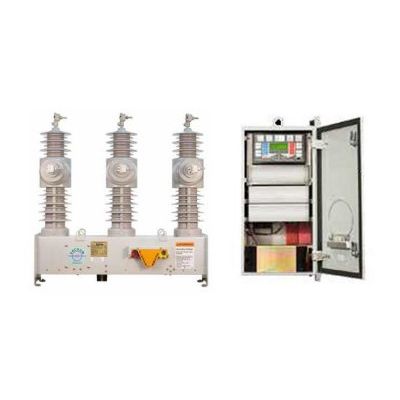

Eaton - DAS Switch & iDC Control
Eaton’s Cooper Power Systems DAS three-phase, electronically controlled, vacuum-interrupting distribution automation switch provides reliable, economical switching, sectionalizing, advanced metering, and automation systems for distribution circuits rated through 38 kV. Utilizing industry leading technology, the DAS three-phase switch and iDC control featuring the ProView™ platform, host a complete set of switching, automation, metering, and ...
UltraShift PLUS Series Transmissions

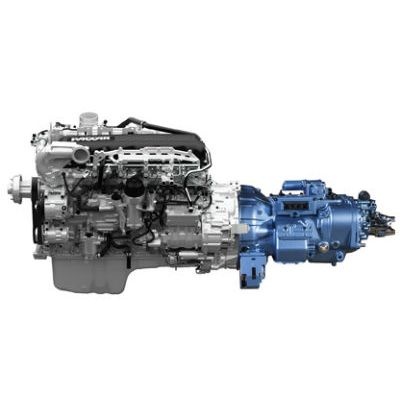

Model Performance Series - Transmissions
Proven reliability and durability of Eaton Fuller 13- and 18-speed transmissions. Built upon the Fuller 13- and 18-speed manual transmissions, the UltraShift PLUS Performance Series uses an electronic clutch actuator to provide faster shifting and smoother engagement. At idle, it fully engages the clutch giving the driver ultimate control in challenging situations. Intelligent shift selection software uses changes in grade, weight and throttle to ...
Model Vocational Series - Transmissions
Gear Selection Logic and low-speed maneuverability make UltraShift PLUS the smartest transmission for the job. Through extended low and reverse gear ratio coverage, it provides the lowest ground speed for curbing, creeping, spreading, and paving. For highway construction and dump operations, it is designed with deep reduction and fast, flexible reverse gearing. The patented shift logic and controls within every UltraShift PLUS constantly adapt based on ...
ePDU G3 Platform
Eaton - Metered Input ePDUs
Eaton Metered Input ePDUs provide remote monitoring of the current draw of individual sections via network communication. This capability, combined with state-of-the-art software allows you to aggregate the information from many ePDUs in one location. A local display is also available for phase balancing and for easy start-up and provisioning of servers. New ePDU G3 Metered Input models feature best-in-class technologies, including ±1% billing ...
Model BECOPAD - Depth Filter Sheet
Eaton's pure BECOPAD depth filter sheet is available for non-critical industrial and non-pharmaceutical processes where the main focus is on maximum filtration outputs combined with optimal clarification and highest particle retention ...

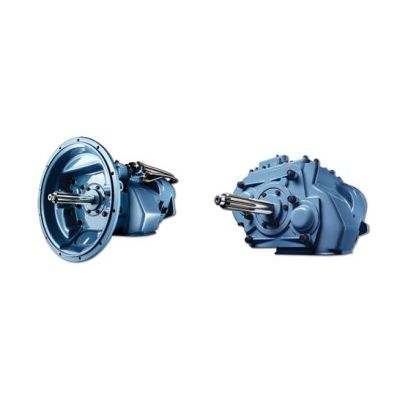

FLEX and Standard Reman Transmissions
Eaton’s Fuller Reman is second only to a new ...

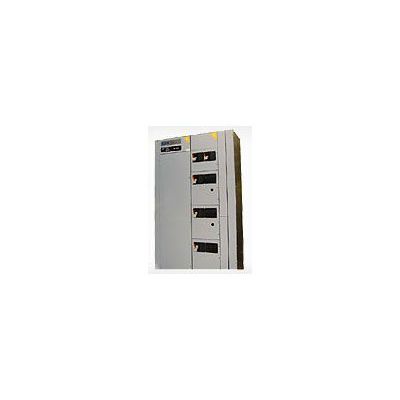

Freedom Arc-Resistant Motor Control Center (MCC)
This enhanced version of Eaton’s flagship Freedom MCC includes additional features specifically designed to contain the arc blast energy should an arc flash event be triggered within the assembly. The Freedom Arc Resistant MCC has a Type 2 accessibility rating, meaning that arc resistant designs or features are present on the front, back, and sides of the assembly. This Type 2 rating translates to enhanced safety around the entire perimeter of ...
Transmissions
Procision Dual-Clutch Transmission
The newest member of the Eaton transmission lineup is the all-new Procision 7-speed dual-clutch transmission. For medium-duty truck owners, the smart features in the Eaton Procision 7-speed transmission deliver more savings and driver confidence than the ...
Eaton - Model XCEL 45 - Steering Units
Get smooth, reliable steering in a variety of sizes and options with XCEL 45 steering units from Eaton. Including open center, load-sensing capabilities and six integrated valve options—manual steering, check, inlet relief, inlet check, cylinder relief, load sensing relief and anti-cavitation—the XCEL 45 provides operators with the steering experience they want, and engineers with all of the varied configurations they ...
Eaton - Model SmartWire-DT - Control Panel Wire
Eaton’s SmartWire-DT is the intelligent control panel wiring solution. SmartWire-DT is an innovative product that reduces panel complexity by consolidating complex circuit wiring into a single, durable 8-pole cable. Connecting is as simple as adjust, crimp and connect. Beyond simplifying the wiring process, SmartWire-DT streamlines testing, and reduces commissioning and troubleshooting, saving time and ...
High Flow Mechanically Cleaned Strainers
Model MCS 500 - High Flow Mechanically Cleaned Strainers
The MCS-500’s magnetically coupled actuation eliminates the need for dynamic seals. This technology provides quick and easy access for maintenance, reduces potential leaks, and requires few moving parts while providing a long service ...
Model MCS 1500 - High Flow Mechanically Cleaned Strainers
Eaton’s MCS-1500 is perfect for high-capacity straining needs. Its magnetically coupled actuation eliminates the need for dynamic seals. This technology provides quick and easy access for maintenance, reduces potential leaks, and requires few moving parts while providing a long service ...
Eaton - Model FD85 Series - Connect Couplings
The Eaton FD85 Series is a thread to connect coupling most commonly used in Oil and Gas applications, but can also be found on demanding applications on both mobile and stationary equipment where operating pressures of 5,000 psi are ...
Eaton - Model HKFR Series - Hydraulic Coupling
Eaton’s HKFR Series is a quick disconnect hydraulic coupling for hazardous Blow Out Preventer (BOP) service in the Oil and Gas Industry. The HKFR Series meets or exceeds the ISO 7241-1 B ...
Functional Safety Products
Safety Relays
Safety relays are intended to reliably monitor the signals from safety devices at all times and switch off quickly in an emergency. Eaton’s ESR5 safety relays provide optimal safety and a high degree of reliability for plant machinery. The ESR5 enables applications to meet the highest safety ratings in accordance with EN954-1, EN ISO 13849-1 up to PL e, and IEC 62061 up to SILCL ...
LS-Titan Safety Limit Switches
Eaton's LS-Titan Safety Limit Switches offer economic insulated plastic or rugged metal enclosures designed for worldwide applications. Modular, plug-in operating heads and bodies make LS-Titan a flexible switching solution. These switches are suitable for use in safety applications designed to protect workers or ...
Model M22 - Pushbuttons
This attractive, functional line of pushbuttons features a space-saving construction that enables fast assembly. The complete illuminated M22 line offers LED light units to ensure high-quality brightness and up to 100,000 hours of illumination. Because of the rugged design of these pushbuttons, most operators and contact blocks exceed five million mechanical ...
CSM 02 - Contamination Sensor Monitor
The CSM 02 multi-analysis system from Eaton monitors the hydraulic and lubrication systems’ fluids by determining the solid contamination and optional water saturation, temperature, viscosity and relative dielectricity. It can be used in stationary and mobile operations and operates in an off-line cycle independent from the system being ...
Eaton - Environmental Monitoring Probe
The Eaton Environmental Monitoring Probe (EMP) enables you to remotely monitor environmental conditions as easily as you monitor power conditions. Using a standard Web browser, you can view the ambient temperature and humidity of the remote environment, as well as the status of two additional contact devices, such as a smoke detector or open-door ...
Eaton - Model Dura-Koteâ„¢ - Plating Technology
Corrosion resistance is a necessity on nearly every application of hydraulic fluid conveyance products—unplated carbon steel fluid conveyance products can begin rusting within hours of exposure to the elements. Now Eaton, a world leader and innovator in power management and hydraulic systems, has raised the bar on corrosion resistance. Introducing Dura-Kote plating technology, delivering significantly higher level of corrosion resistance on ...
Eaton - Model XV and XP Series - Visual Designer
Eaton’s XV and XP Series of operator interfaces offer high performance platforms that provide unmatched flexibility. Features slim OEM design and a variety of communication port options that include onboard Ethernet on all models. With screen sizes ranging from 3.5 to 15 inches, vast communications capabilities, and a single development software package, the XV and XP Series represent a complete solution to any HMI ...
Arcflash Reduction Maintenance System
A circuit breaker equipped with an Arcflash Reduction Maintenance System can improve safety by providing a simple and reliable method to reduce fault clearing time. Work locations downstream of a circuit breaker with an Arcflash Reduction Maintenance System unit can have a significantly lower incident energy ...
Eaton - Model HP30 - High-Pressure Motor
New Eaton HP30 high-pressure motor is the workhorse behind the SIMCO 2800 HS (HT) drilling rig. “While Eaton’s 10,000 Series motor served us well for many years, we really like the updated features of the HP30 motor. The HP30’s 60/40 split of torque and speed better meets our needs for mud rotary drilling versus the 50/50 split of the 10,000 ...
Inductive Proximity Sensors
Model E57P Performance Series - Inductive Proximity Sensors
With unmatched high noise immunity and short circuit protection, the E57P Performance Series delivers top of the line reliability. Manufactured to withstand harsh environmental conditions as well as otherwise damaging mechanical impacts, the E57 is rugged ...
Model E57PS Performance Short Body Series - Inductive Proximity Sensors
The same reliability and durability found in the E57PS Performance Series – just shorter. This product is a great choice for applications where limited space is an ...
Electric Vehicle Hyper Charger
The DC hyper charger for electric vehicles is scalable from 250 KW to one MW. It has the highest energy density in its class. On a recent demonstration route, the charger recorded an average of eight charges and 240 miles per day utilizing 100 percent on–route charging. Designed to provide fleets of all sizes, including mass transit vehicles, with reliable and efficient off-board charging, making the DC hyper charger more practical for ...
AxisPro - Servo Performance Proportional Valves
Built on the proven KB Servo Proportional Valve technology, Eaton’s next generation AxisPro™ proportional valve provides multiple levels of performance to meet the demands of a wide range of applications. These four-way solenoid operated proportional valves offer high dynamic performance which enables them to be used in closed-loop applications previously only possible using conventional servo ...
Model PowerXL DE1 - Variable Speed Starter
The PowerXL DE1 variable speed starter is a product that bridges the gap between a standard electromechanical starter and a variable frequency drive. With industry-leading ease-of-use and a narrow, compact housing, the DE1 is designed to be used in flexible applications with value propositions unique to each ...
Model AN19 - Competitive Retrofit Kits
Replace Square D and Rockwell starters with Eaton’s AN19 starter with solid state overload relay. All parts included in kit to allow for quick and easy starter replacement. No panel drilling required, same hole pattern can be used for mounting. Available for Size 1-5 starters, with 120 VAC ...
Motorized Remote Racking (MR2)
Eaton's MR2 motorized remote racking system provides a means of remotely racking any VCP-W drawout circuit breakers and/or auxiliary drawers used in metal-clad switchgear. The addition of MR2 system helps mitigate arc flash exposure for the ...
Model XP500 with Visual Designer - Panel PCs
The XP500 series from Eaton sets a new standard for advanced intuitive HMI and SCADA technology. Capacitive multi-touch displays allow the use of multiple fingers to zoom, scroll and swipe. It's about time that the gesture controls that have benefited smartphones and tablets came to the industrial world. Facilities can also leverage multi-touch functionality to prevent accidental commands by requiring the user to press multiple control fields at once ...
Model VS 5 - Electronic Filter Clogging Indicator
Electrical clogging indicators are ideal for situations where the filter housing cannot easily be viewed in the plant. When the filter element becomes clogged, an indicator light will go off in a central command center. It is also possible to program these indicators to shut the system off ...
Eaton - Model AF/GF - Dual Purpose Arc Fault/Ground Fault Circuit Interrupter
Eaton is expanding its line of arc fault and ground fault solutions to include the dual purpose arc fault/ground fault (AF/GF) circuit interrupter for residential and light commercial applications. The AF/GF circuit interrupter was developed in response to the 2014 National Electrical Code (NECT) that now requires AFCI protection in kitchens and laundry areas as well as the historical requirement of ground fault protection. Eaton’s AF/GF circuit ...
Eaton Fuller - Rebuilder Bulk Packs
Part ordering and stocking have never been easier than with Eaton Fuller Rebuilder Bulk Packs. These Bulk Packs allow high-volume rebuilders to order parts less often and keep a consistent level of parts always ...
Enclosed Manual Motor Starters
The enclosed manual motor starter is a cost-effective solution offering local and remote control capability, overload protection, and running light indication on small single-phase motor applications for 10% less than competitive ...
Model 72 - Basket
The Eaton Model 72 simplex basket strainer is perfect for applications in which the line can be temporarily shut down for strainer basket cleaning or changeout. A reason for its popularity is the unusually large basket capacity. The free straining area with a perforated basket is a minimum of six times the cross sectional pipe area. The basket seats are precision machined to give a tight seal and prevent any material from bypassing the basket. ...
Model DCF-3000 - Disc Cleaning Filters
The dual cleaning disc and twin actuator design of the DCF-3000 mechanically cleaned filter can be fabricated in a variety of materials and options with temperatures up to 400°F. It is ideal for highly viscous, abrasive or sticky liquids with flow rates of up to 500 GPM. For water-like liquids, it can handle flow rates up to 1500 ...
Model CLS100, CLS180, CLS250, & CLS350 - Sectional Mobile Valves
Eaton introduces the newest load sensing valve in the industry, the CLS Sectional Mobile Valve. The new CLS mobile valve portfolio provides customer flexibility by offering four (4) models in the CLS100, CLS180, CLS250, and CLS350 to accommodate different flow requirements. With one of the smallest envelopes in the industry, CLS is highly modular with a maximum of 10 working sections, available mid-inlet / custom manifolds, patented load sense bleed ...
Model 210+ - Electronic Trip Units
The Series C F-Frame molded-case circuit breaker is equipped with the 210+ electronic trip unit and features LSI and LI protection settings. The F-Frame breaker is NEMA, UL and CSA ...
Beco Protect - Model CS - CellStream Depth Filter Cartridges
BECO PROTECT CS CellStream depth filtercartridges from Eaton’s Begerow Product Line are the first depth filter cartridges to be made of the proven and adapted BECOPAD® depth filter sheet material. The unique method of wrapping maximizes the filter area and additionally offers outstanding mechanical and thermal stability for all beverage filtration ...
Eaton - Model DCF 400, 800, 1600 - Mechanically Cleaned Filter
Considered the most efficient mechanically cleaned filter on the market, the Eaton DCF-Series of mechanically cleaned filters is ideal for highly viscous, abrasive, or sticky liquids. The DCF mechanically cleaned filters operate at a consistently low differential pressure and deliver simple, reliable operation in which a low initial investment is a key driving ...
