EBTRON products

The TAMCO/EBTRON FAN-IQ package combines EBTRON’s Gold Series GTx108e-F high-performance airflow measurement technology with TAMCO Series 7600, 7600 CW, and 7600 CWA Heavy-Duty Backdraft Dampers, providing unprecedented flexibility in airflow control. Whether the application is on the intake, exhaust, severe cold, or salt spray, there is a TAMCO/EBTRON FAN-IQ solution.

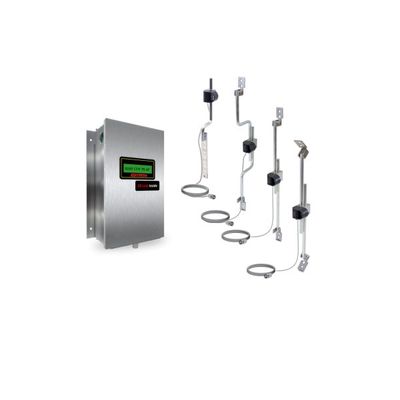

The EF-x2000-U is a cost effective measurement solution for smaller rooftop packaged units, fan coils and classroom ventilators. Available with adjustable standoff or insertion mount universal probes. Dual airflow output capability makes it ideal for outdoor air and exhaust airflow measurement in RTUs with powered exhaust and in energy/heat recovery ventilators.

The HTx104-T is EBTRON’s measurement solution for round ducts between 4 and 16 inches in diameter when a remote display is desired. Ideal for small duct airflow measurement and airflow tracking applications. More output circuit protection than the EF-x2000-T with a true 4-20mA output option (HTA104-T) make this the best choice for all small duct measurement applications.

The GTx116e-PC is EBTRON’s top-of-the-line solution for accurate and repeatable measurement in ducts and plenums. Ruggedized RH sensor option (/H), onboard barometric pressure sensor and velocity-weighted temperature results in accurate relative humidity,  enthalpy and dew point calculations. Ideal for supply, return and outdoor air intake applications on systems with an airside economizer. Bluetooth® low energy technology interface.

The GTx108e-F/SI and GTx108e-F/DI are EBTRON’s solution for accurate and repeatable airflow measurement in SWSI and DWDI fans. Airflow, temperature and/or airflow alarming are available on all models. Does not affect fan performance. Bluetooth low energy technology interface.
