Echoflex Solutions Inc. products

The Echoflex Utility Room Water Leak Detector (U-WLD) is a simple and effective wireless device designed to monitor spaces for water leaks and flooding. When water is detected, a signal is sent to immediately alert a receiver or valve to shut off water or take other steps to mitigate water damage.

Echoflex’s RCT-1H-UW CO2 Sensor is a wireless, self-powered indoor sensor that provides accurate monitoring of CO2, temperature, and relative humidity. It is designed for commercial facilities and works with common BEMS systems so they can run HVAC systems more efficiently. The RCT-1H-UW is easily calibrated in ambient air and has an integrated self-calibration feature. It also has a built-in absolute pressure sensor that corrects the CO2 reading for altitude. The current CO2 level can be displayed at the sensor via LED indication. Like all Echoflex gear, the RCT-1H-UW CO2 sensor features excellent transmission range, advanced diagnostics, and efficient solar power utilization. The sensor is designed to hold a full charge and operate even after days in total darkness.

RTS temperature/humidity sensors are wireless, self-powered indoor sensors that feature excellent transmission range; advanced diagnostics and efficient solar power utilization. These sensors are designed to operate on a full charge for days in total darkness. The RTS sensors are in the class of the most technically advanced in the wireless controls industry. RTS models options offer variations of temperature only, temperature set point, relative humidity, occupancy override, and fan speed. The RTS works in conjunction with Echoflex`s Base Board Controller or the Echoflex thermostat to control heating equipment. Many RTS’s can be used to average temperature control of large spaces. LED indication of radio range confirmation and solar energy harvesting level evaluation are standard features. (Range confirmation requires F series of controller, 902 MHz only)

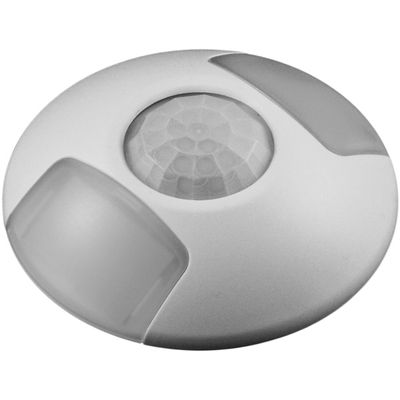

 The Echoflex RVS is a solar powered, passive infrared, wireless vacancy sensor. Optimized for spaces with ceiling heights of 8 to 10 feet, the RVS provides automatic OFF control, meeting today’s strictest energy codes. The Resonate Vacancy Sensor combines a sleek, non-intrusive design with advanced power management circuitry to minimize solar harvesting requirements. The RVS operate as a self-powered vacancy sensor in low light conditions. The RCS is identical to the RVS with the addition of a battery to provide power for support of auto-on occupancy sensor applications. The Resonate Vacancy Sensor and Resonate Ceiling Occupancy Sensors incorporate Echoflex’s latest diagnostic and configuration features including range confirmation, solar harvesting level indication and walk-test mode to ensure reliable operation.

The TAP-41 is a wireless, self-powered photo sensor with correlated color temperature (CCT) sensing technology. Designed for indoor use, the TAP-41 sensor has two selectable light intensity ranges. One range supports light intensity levels suitable for monitoring fixture output for closed loop daylighting. The second range is ideal for monitoring exterior light levels for open loop daylighting control.

The TAP-31 is a wireless, self-powered photo sensor designed for indoor use. It provides a reliable and simple method for increasing energy savings by adding daylight harvesting capability to your Echoflex lighting control system. With two selectable ranges – 0-1024 lux (95 fc) and 0-65535 lux (6090 fc) – the TAP-31 is perfect for open- or closed-loop daylighting applications. The self-powered TAP-31 uses solar cells for power and will accept a coin cell battery for continuous operation in very low light conditions. The TAP Photo Sensor provides multiple mounting options, including integrated magnets for T-Bar, wire straps for ceiling tile, and screw holes for hard-lid ceilings. And with an aesthetically pleasing, low-visual-impact design, the TAP-31 will fit with any décor.

Elaho Station Power Supplies provide up to 1640 feet (500 meters) of power for up to 16 Elaho control system stations, responsive controls, as well as up to 16 power controllers and power control panels. Elaho Station Power Supplies come in a variety of form factors and mounting options making them ideal for healthcare facilities, office buildings, retail locations, houses of worship, schools, and more. Plug-and-play. No required software or programming means the setup of your Elaho system is easy. Elaho Station Power Supplies offer flexible infrastructure and topology-free control wiring making overall setup remarkably stress-free. t`s easy being green. The Elaho control system was specifically developed with your energy concerns in mind.
