Eco Sensors Division of Interlink Electronics, Inc. products

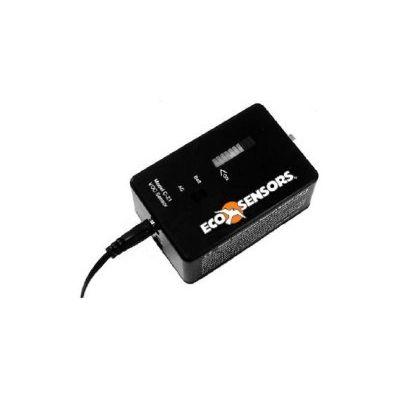

Includes Audio Alarm, Battery operation and Provision for External Alarm and Data Logger. For paint shops, printers, dry cleaners, woodworkers, vehicle repair facilities, chemical production areas and wherever indoor air quality monitoring is required: the Eco Sensors® Model C-21 gas sensor helps you comply with the new VOC air quality regulations for hydrocarbon gases and solvent vapors.

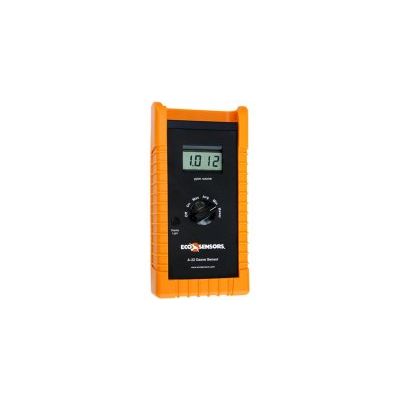

The Eco Sensors Model A-21ZX portable ozone sensor provides a reliable and inexpensive way of checking generators, valves, piping and general environments for ozone leaks and for estimating ozone levels. It can be used as a permanent or portable monitor indoors, and offers a wide detection range not normally found on portable devices.

For monitoring ozone levels near small ozone generators. Ideal for light commercial applications such as bars and restaurants, hotels, photocopy centers, water bottlers, fumigation, research projects, light manufacturing, swimming pools, and residential and wherever ozone exposure is possible. For permanent on-site use and for portable work by field engineers and installers. The EZ-1X has a fast and continuous response. It is rugged and versatile. There are no touchy controls.

A general purpose sensor and monitor. Designed for rugged indoor field use, factories, pilot plants, process facilities, and sensor and monitoring uses of all kinds. Uses the same precalibrated sensor modules as our OS-4 permanent monitor and controller. All digital technology.

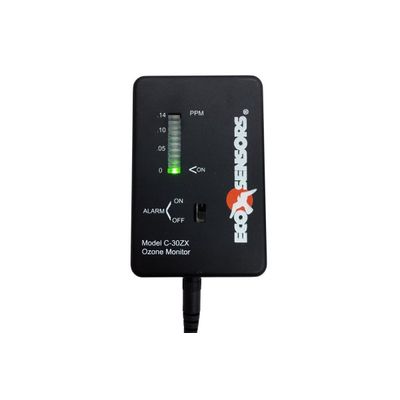

For water treatment plants, pulp bleaching mills, ozone generator monitors, photocopier and laser printer centers, fumigation projects, HVAC and indoor air quality systems, vehicular pollution monitors, research labs and pilot plants, and wherever ozone exposure is possible: the C-30ZX has a very fast and continuous response. It is rugged and versatile. There are no touchy controls.

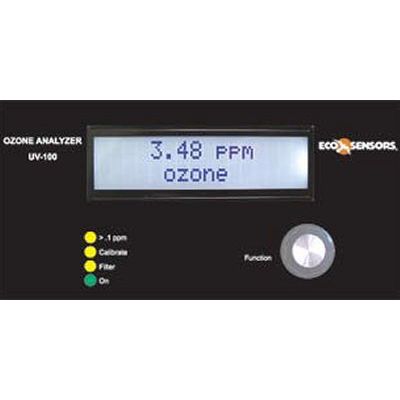

The Eco Sensors model UV-100 ozone analyzer is for general purpose measurement of ozone in air. Its range is .01-999 ppm (v) with 2% accuracy, and it includes a built-in data logger. The UV-100 weighs only 2.1 kg (4.7 lb), it is powered by an AC adapter or 12 V external battery, and is equally versatile for the laboratory or for process monitoring. The outputs are digital display, 0-2.5 VDC and 4-20 mA. The instrument features LEDs to indicate calibration is due, the sample line filter should be replaced, and that the sampling area is above the danger limit of .1 ppm. Lead time for the UV-100 is 4 weeks or less. Please plan for this when placing your order. We cannot offer expedite service.

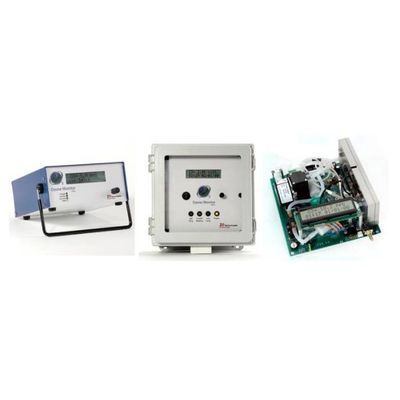

For industrial ozone applications not serviced by the UV-100, Eco Sensors has partnered with 2B Technologies to offer the Model 106-L, 106-M, 106-MH and 106-H Ozone Monitors, where L, M, MH and H refer to Low (0-100 ppm), Medium (0-1,000 ppm), Medium-High (0-10,000 ppm) and High (0-20 wt%) ozone concentrations, respectively. These instruments have different optical path lengths in order to accommodate an extremely wide range of ozone concentrations, spanning more than eight orders of magnitude. Additionally, the Model 106-H was designed with a flow through path that can be pressurized to up to 50 psi for in-line measurements with ozone generators. All three models are available in either a standard enclosure or NEMA enclosure. Please call us for pricing and availability.

The SM-500/RME-O3 is a new and improved Calibrated Digital Ozone Sensor Module in a compact form factor! The SM-500 is a calibrated ozone sensor instrument that utilizes a state-of-the-art electrochemical (EC) ozone sensing element. The SM-500 can be paired seamlessly with Eco Sensors’ OS-4 & OS-6 ozone controllers or it can be configured as an independent digital ozone instrument via RS-232 or USB serial communication.

The SM-EC is an electrochemical ozone sensor module for use with our OS-4 or OS-6 digital ozone controller, or as a stand alone module using the RS-232 output. This technology from Eco Sensors provides accurate ppb-level detection and resolution over a wide (.02-20 ppm, or 1-50 ppm) concentration range. The sensor module is compensated for temperature and humidity effects, with little to no cross sensitivity to VOC’s. The SM-EC makes our digital instruments more accurate at both ppb and high ppm levels of ozone, enabling improved monitoring and control for our users.

SPARROW is a smart phone connected carbon monoxide monitor for CO safety and air quality analysis.  SPARROW and the SPARROW app work together to monitor CO in real-time and provide both high level safety alerts and low-level air quality warnings.
