Ecolab Engineering GmbH products

Electro-pneumatically operated time control unit with process control and illuminated LC-display. Metering time setting 0.01 to 99.99 sec. Tank pressure adjustable from 0 to 1.6 bar optional from 0 to 3.8 bar.

The rotary gun is needed to dispense products into bores with a diameter ranging from 8 to 200 mm. It is vital to position the work piece onto which a product is dispensed exactly, especially when dealing with small bores. The dispensing procedure is as follows:

Pneumatic metering pump incl. control by external 3/2-port directional control valve. Optional: Pneumatic metering pump incl. control by integrated 3/2-port solenoid valve

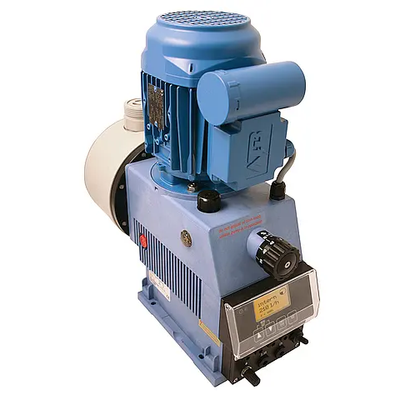

The TurboPUMP dosing pump series is a range of electric motor-driven diaphragm dosing pumps for simple dosing tasks at low system pressure.
As an alternative to customary peristaltic squeeze pumps, the TurboPUMP offers all the advantages of diaphragm metering, such as long service life, low maintenance and metering accuracy. The asynchronous motor is protected against overheating by an integrated thermal protection switch. The use of a spring accumulator ensures a lower noise level and extends the operating life.

The TurboSmartPump II is the consistently enhanced version of a tried-and-trusted Ecolab pump. For example, improvements such as externally accessible metering volume settings, a metering stroke indicator, and optimised setting accuracy in the lower dispensing range have been implemented. Thanks to the new housing concept with frontal arrangement of the pump head, the design is extremely compact. Using the U-connector included in the scope of supply, several pumps can be mounted, thus saving space in the array.

The measurement and control device Versatronic provides, in addition to the simultaneous processing of up to 4 measurement and control channels, also various communication interfaces such as RS 485, Profibus, USB, Ethernet. System statuses can be called-up via remote access at any time by an integrated web server.  A paperless recorder (optional) is able to record the measured-value trends and switching states during a period of up to one year. By using an extensive evaluation software, the recorded data can be analyzed and visualized comfortably.

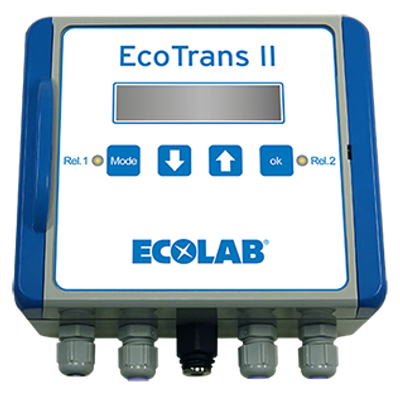

The EcoTrans II measurement transmitter records measurements in a range from pH 0 to pH 14 and converts these into a 4 - 20 mA standard signal (pH 0 = 4 mA, pH 14 = 20 mA). The current measured value will be displayed by a LCD display. The calibration is carried out by using the respective buffer solutions (pH 4 and pH 7 for acidic media, pH 9 and pH 7 for alkaline media) by means of a calibration potentiometer.
