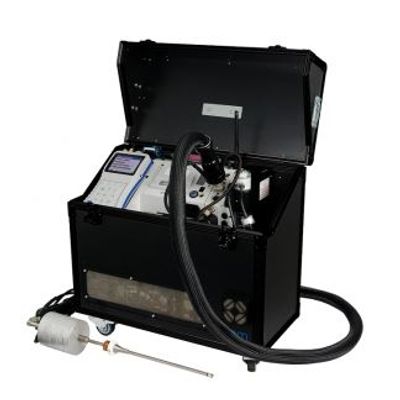

The J2KNpro Series represents the ultimate work horse for industrial gas analysis. It`s performance and accuracy is unsurpassed in the field of portable emissions and combustion analysis. Offers wireless connectivity, multiple reporting tools, and can be used for CTM-030 & CTM-034, ASTM D6522, ZZZZ, JJJJ, SQAQMD 1110.2, SCAQMD 1146.1, MSAPR testing.

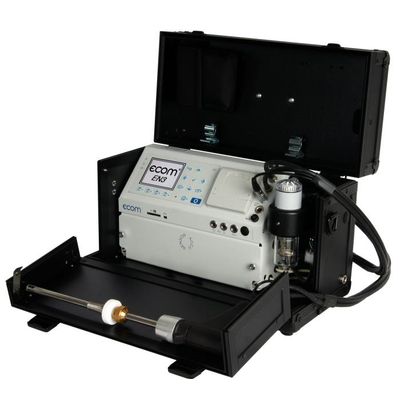

The ecom-EN3 is a compact portable combustion analyzer, offering features found on larger more expensive units. Housed in a rugged aluminum frame and hard-side case, the EN3 measures up to 6 gases, from 02, CO, NO, N02, S02 and CxHy, plus probes for temperature and stack draft / pressure. The ecom-EN3 also calculates C02, efficiency and excess air. A strong, internal pump and peltier gas cooler with automatic condensate drain ensures proper sample conditioning, leading to better accuracy and longer sensor life. An on board printer, SD Memory Card and wireless Bluetooth are standard features. Common applications for the ecom-EN3 include set-up, maintenance and emission monitoring of natural gas, diesel, and oil fired boilers, burners, and reciprocating engines. The compact size, simple operation, and long battery life (6-8 hours) make the ecom-E3 a perfect tool for field technicians.

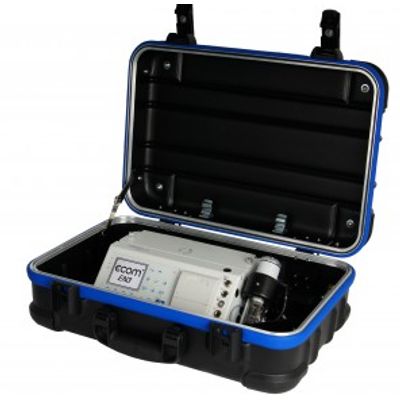

The ecom-EN3-F is a compact portable combustion analyzer, offering features found on larger, more expensive units. Housed in a rugged aluminum frame and hard-side case, the EN3-F measures up to 6 gases, from O2, CO, NO, NO2, SO2 & CxHy plus probes for temperature and stack draft / pressure. The EN3-F also calculates CO2, efficiency and excess air. A strong, internal pump and peltier gas cooler with automatic condensate drain ensures proper sample conditioning, leading to better accuracy and longer sensor life. An on board printer, SD Memory Card and wireless Bluetooth are standard features. Common applications for the ecom-EN3-F include set-up, maintenance and emission monitoring of natural gas, diesel, and oil fired boilers, burners, and reciprocating engines. The compact size, simple operation, and long battery life (6-8 hours) make the ecom-EN3-F a perfect tool for field technicians.

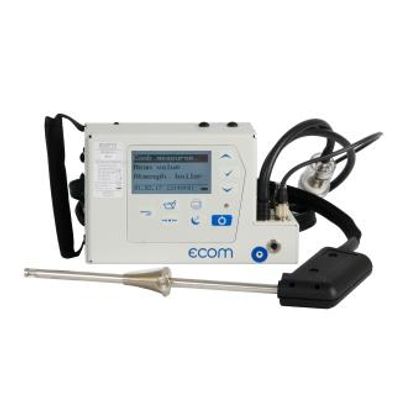

The ecom-B Plus is an easy to use handheld gas analyzer designed for commercial and industrial combustion monitoring in a variety of applications. It can be fitted with up to 3 gas sensors, measuring O2, CO & NO, plus Stack and Ambient Temperatures, and Stack Pressure & Draft. The ecom-B Plus also calculates CO2, Efficiency, Losses, Excess Air and Oxygen correction 0-20%.

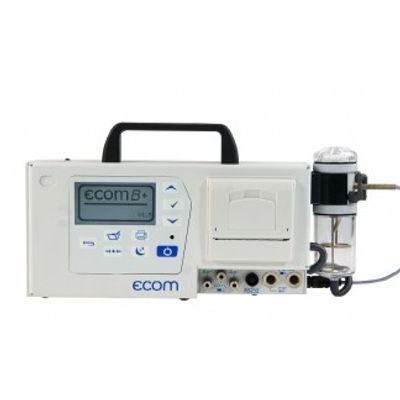

Functioning as a durable case mounted analyzer; the ecom-B is built for boiler tuning and efficiency. Powerful magnets on the back of the analyzer allow the technician to work hands free during any combustion analysis for increased efficiency. Like all of our analyzers the ecom-B utilizes the newest technology and world-class engineering, ensuring your testing is easy and accurate. Available with up to three sensors, this ready to run analyzer has everything you need in one compact, robust and easy to carry case.

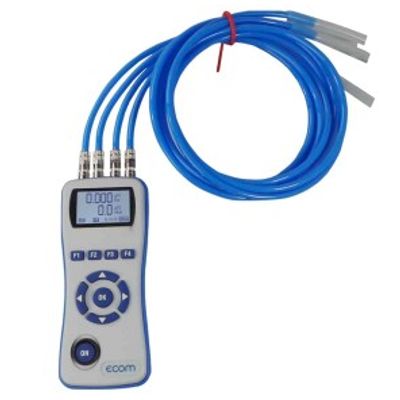

For pressure measurement in various applications. Two sensors and measurement ranges for parallel or separate measuring. Min./max. feature (saves the lowest and highest measured reading). Data hold (manual intermittent storage of a particular reading) -Adjustable damping. Optional measuring routines (TRGl tests, leak tests in the gas valve etc.). Adjustable parameters for individual tests. Data storage and logging.

MEASUREMENTS AND ADJUSTMENTS ON ENGINES: Gas pressure control (± 32 iwcto 145 PSI). Differential pressure measurements in the intercooler (± 8 to 281 iwc).

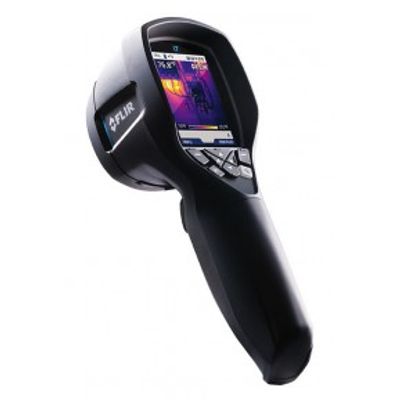

FLIR Ex-Series cameras are powerful troubleshooting tools for building, electrical, and mechanical applications. With resolution options up to 320 » 240 infrared pixels and the ability to accurately measure temperatures from -20!C to 550!CM!F to 1022!F (E6-XT with Wi-Fi and E8-XT with Wi-Fi), the Ex-Series has models to fit your target size, working distance, visual detail needs, and budget.

Dimensions housing (WxHx D) approx. 6x 1.4x .9 in Swan-neck length approx. 14 in Weight approx. .5 lb.

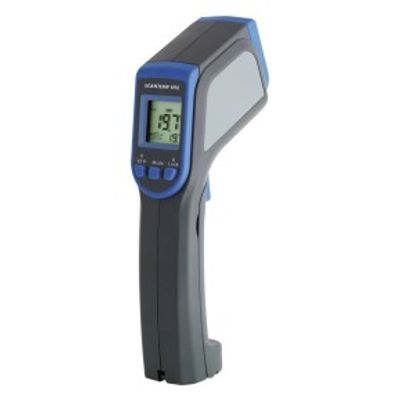

Product features: Non-contact measurement with humidity sensor. Large display area: Simultaneous display of temperature and humidity reading or Max/ Min values. With laser sighting and back light.
