ecom GmbH products

O₂/CO (H₂ comp.) Longlife sensors (lifespan 5-6 years by normal operation). Automatic CO switch-off and fresh air purge (without measurement interruption). Robust and light aluminium housing fitted with magnets on the back. Integral lithium-ion battery with extended operation time. Complete with sampling probe incl. fication cone and 3-chamber tubing. T-Room probe. Charger. Condensate trap with moisture-absorbing pad and optical monitoring. Internal memory. Calibration Certificate - generated after 100% sensor calibration in climatic chamber. Free PC Software.

O2 /CO (H2 comp.) Longlife sensors (lifespan higher than 4 years by normal load). Automatic CO switch-off and fresh air purge (without measurement interruption). Robust protection aluminium housing with stable carrying grip and fixation for carrying grip. Operation as wall-positioned instrument: powerful magnets on the back for fixation on all metal surfaces. Operation as floor-standing instrument: foldable and slip-proof tilt stand.

Probe, sampling tubing, printer, transport case with carrying strap. Longlife sensors. CO sensor overload protection without measurement interruption. Electronic condensate monitoring. Low-maintenance, high-performance pump. TFT color display and backlit keypad. Powerful Lithium-Ion battery.

Flue Gas Analyser with Integral Soot Measurement. Compact, accurate, robust, safe, efficient, versatile, full equipment. Integral soot measurement: perfect for oil-fired heating plants. Longlife sensors. CO sensor overexposure protection without measurement interruption. Electronic condensate monitoring. Low-maintenance, high-performance pump. Powerful Lithium-Ion battery. TFT color display and backlit keypad. Aluminium housing (ultra-light) and aluminium-framed transport case.

For Adjustments of Gas Burners/Gas Heatings. Four changeable units: hPa/mbar, mmH2O, psi, mmHg. Ranges: ± 200 hPa, ± 2038 mmH2O, ± 2.9 psi. and ± 150 mmHg. Accuracy: 1%. Power supply: 2 one-way batteries AA 1.5 V (Mignon). Dimensions (H x W x D): approx. 106 x 64 x 28 mm. Weight: approx. 150 gr (with batteries). Scope of delivery: ecom-UNO, batteries, protective pouch.

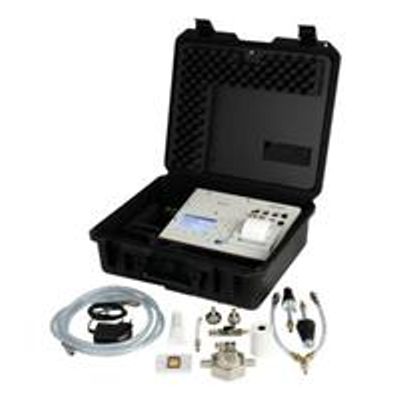

Fully automatic pressure checks. Internal pump for pressure build-up up to 1.5 bar. Integral thermal quick-printer. Fully automatic leakage rate determination within a few minutes  (gas sampling not required). Suitability check  in no time. Safe and fully automatic check routines. For gas (TRGI), liquid gas (TRF), water (TRWI) and sewage pipes checks. For further measurements up to 40 bar (with external sensors). PC software included in delivery scope.

For pressure measurements at gas burners. For tightness check of gas fittings (± 100 to 150 mbar). Check of gas connection pressure. Measurement of gas adjustment pressure. Adjustement of gas pressure controller. Adjustment of air pressure controller.

For pressure measurements at gas engines. Gas pressure control. Differential pressure measurement at air intercoolers. Measurement of flue gas overpressure. Differential pressure measurement at blow-by-filters. Measurement of crankcase pressure. Suitable for pressure measurements at gas heatings / burners. Thermal printer as accessory. Min./Max. function (storage of lowest or highest value). Freeze function (manual temporary storage of a specific measurement value).  Damping adjustable. Changeable parameter for specific tests. Data storage and data logging.

Indication range up to 0.5% vol. CH4. 3 freely adjustable sensitivity levels. Reaction time: < 2 seconds. Flexible swan-neck with movable sensor head. Indication: display size approx. 20 x 7 mm, backlit, diagramm. with 1-14 bars (10 bars = approx. 1000 ppm CH4). Sensor temperature compensation (-5°C to 40°C). Acoustic signal regulation via ON/OFF function resp. via. earphones output (3.5 mm jack plug). Power supply: 2 x AAA batteries (= incl. in scope of delivery). Spare sensor for quick exchange (= incl. in scope of delivery). Testing bottle (= incl. in scope of delivery). Protection sleeve (= incl. in scope of delivery). Housing dimensions: approx. 155 x 35 x 22 mm. Swan-neck length: approx. 355 mm. Weight: approx. 200 g.

ecom-AK - Read-out head for digital firing automates. Automatic recognition of firing automate model. Read-out function for errors and operation stands. Integral display.
