ecoTech Umwelt- Meßsysteme GmbH products
Hydrology

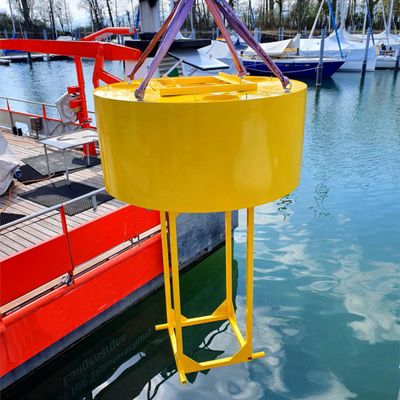

Measuring Buoy for Individual Tasks
ecoTech measuring buoy (type Bodensee) with three insert tubes allowing the connection of a data logger, power supply or measuring devices. Equipped with ring screws to attach anchor lines so that the buoy may be attached to the lake bottom. The application areas are natural lakes and reservoirs of any size.

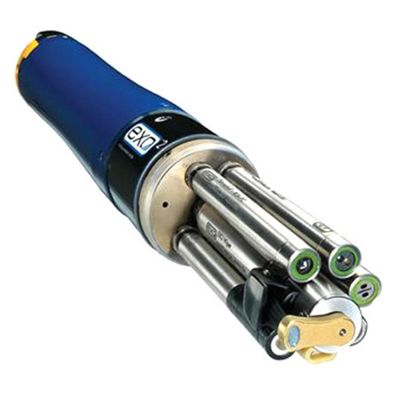

Multiparameter Probe
High-performance system to monitor water quality under harsh operating conditions. Continuous water quality monitoring of natural waters, including estuaries and oceans.

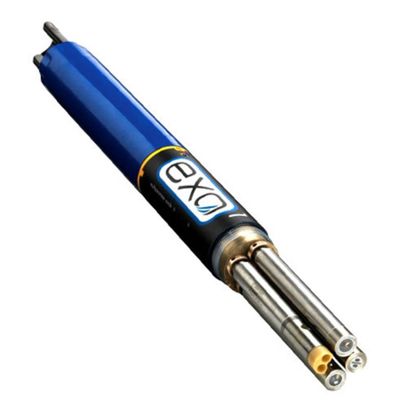

Multiparameter Probe
High-performance system to monitor water quality - even under harsh operating conditions. Continuous water quality monitoring of natural waters includin gestuaries and oceans.
Soil Science

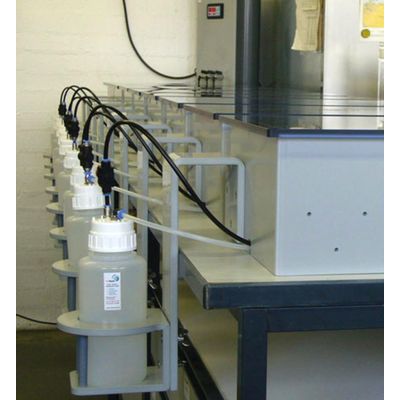

Laboratory Station for Soil Moisture
Determination of pF curves within the range of pF 1 (10 hPa) to pF 2.9 (ca. 750 hPa) with precise vacuum setting. Desktop device with integrated vacuum pump, Very short prep time; suction plates are immediately ready for use following watering, Precise vacuum control with 1 hPa resolution, Simultaneous display of system pressure and limiting values, Adjustable limit values, Rapid drainage of soil samples, Protective housing with transparent lid, Up to five pF pressure step modules and/or additional pF suction plate modules can be connected, Covers the entire pF range (pF 0 - pF 4.2) in combination with membrane apparatus,
Vacuum Suction Plate Module for pF Curve
Determination of pF curves with vacuum. Extension module for pF laboratory station and pF pressure step module, simultaneous use of different pressure steps. Up to 40 soil sample rings (100 cm³), Extends sample capacity and pressure step spectrum, Includes sampling bottle with level adjustment, Precise adjustment of vacuum and drainage level, Optional: Module with sample saturation,
Meteorology

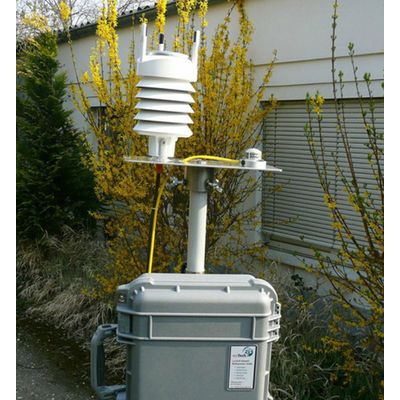

Mobile Weather Station
Mobile weather station with integrated data logger to measure wind velocity, wind direction, precipitation, air temperature, relative humidity, barometric pressure, global radiation and soil temperature. The sensor equipment contains a Meteo MS multi sensor, a silicon pyranometer and a digital Pt1000-temperature sensor.

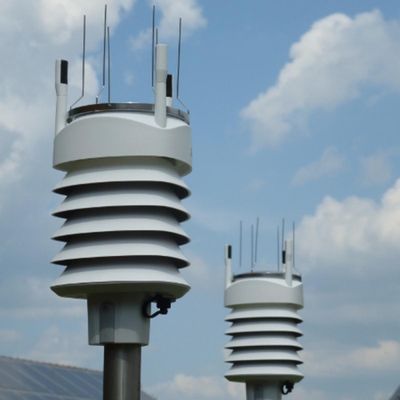

Multi Sensor for Weather Monitoring
Meteo MS measures wind direction, wind velocity, precipitation, relative humidity, temperature and barometric pressure in one compact sensor. A digital SDI-12 interface is used to connect to a data logger. Robust and low-maintenance, no moving parts, Low power input, Operational down to -52°C due to optional heating function, Simple assembly

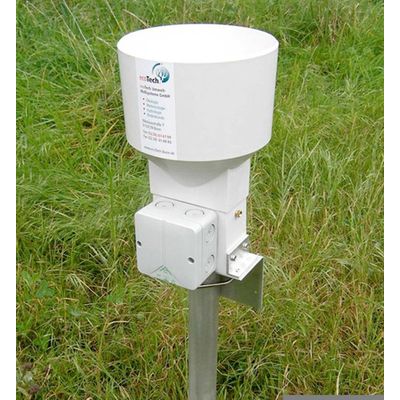

Tipping Bucket Rain Gauge
Plastic tipping bucket to measure liquid precipitation at weather stations. Precipitation is determined by a calibrated tipping spoon and emitted as an impulse signal. Affordable, Weather-resistant plastic housing, Automatic function with optional integrated data logger

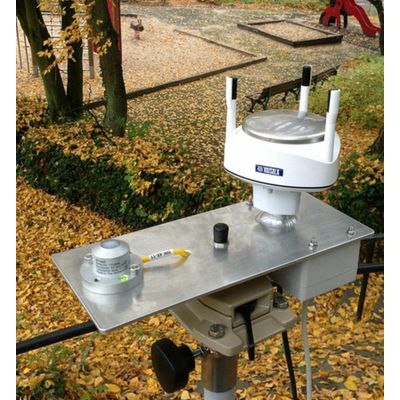

Silicon Pyranometer for Radiation Measurements
Cost-effective solar sensor to measure global radiation, for use in all weather conditions. A silicon photocell transforms the incoming radiation into an analogue mV signal. Affordable pyranometer for routine measurements, Compact and light, Easy to use, low maintenance required, Can combine 2 sensors to function as an albedometer
