Ecotecnica Europe S.r.l. products

Shear force t 1200. Vertical hold down force t 120. COMPRESSION BOX. Compression box length mm 8000. Compression box width (with wings open) mm 2850. Bale’s dimentions mm 1000×800. Oscillanting wings N° 2. Cylinders on each wing N° 3. Compression force (wings) t 480.
Longitudinal compression force t 180. Shear baler total weight kg 160000

Compression box length: mm 7200, Compression box width (with wings open): mm 2850, Bale’s dimentions: mm 1000×800..

Compression box length: mm 7000, Compression box width (with wings open): mm 2600, Bale’s dimentions: 900×700.

Compression box length: mm 6200, Compression box width (with wings open): mm 2555, Bale’s dimentions: mm 900×700..

Shear Force t 600. Shear cylinder N° 2. Vertical hold down force t 60. COMPRESSION BOX. Machine length (A) mm ~14500. Compression box length (B) mm 6000. Machine width (L) mm 2500. Compression box width (covers open) mm 1730. Bale’s dimentions (C-D) mm 850×650. Height during transport (H) mm 4200. Number covers N° 2. Cylinders for each cover N° 3. Compression force (covers) t 420. Longitudinal compression force t 150. Jack lift. Semi-trailer

Machine length: ~14000, Compression box length: mm 5300, Machine width: mm 2500, Compression box width (covers open): mm 1730, Bale’s dimentions: mm 850×650..

COMPRESSION BOX. Compression box length mm 5000. Compression box width (with wings open) mm 2100. Bale’s dimentions mm 600×600.
Oscillating wings N° 2. Cylinders on each wing. Compression force (wings) t 240. Longitudinal compression force t 130. Expulsion door X. Radio remote control     X

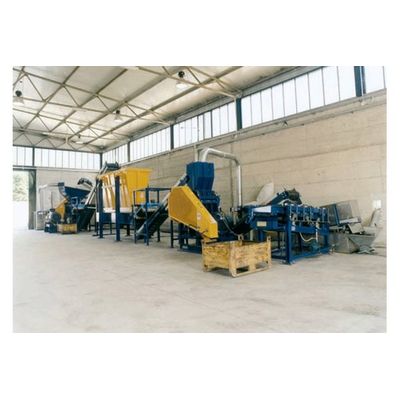

Complete range of grinding systems for electrical cables, with rubber or plastic armour. Outuput capacity from 300 up to 4000 kg/h.

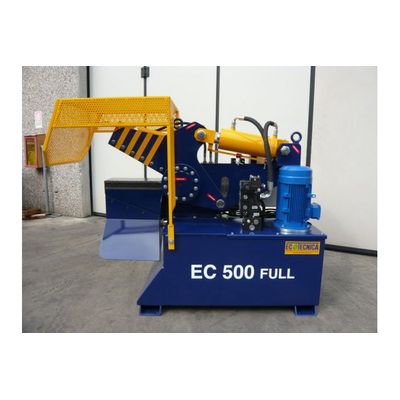

Blade’s length: 500 mm, Shearing force: N 345.000, Electric motor: 7,5 KW.
