ED-VAN Vantilator Sanayi Ve Ticaret Ltd Sti products

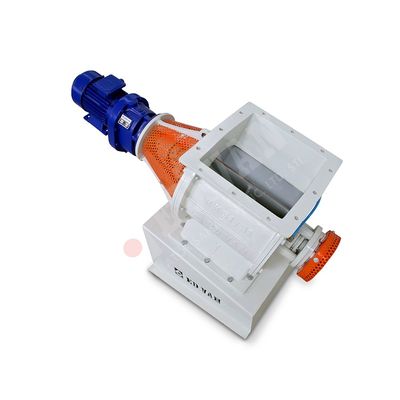

From 4lt/rpm to 100lt/rpm capacity. Industrial type air locks; are often referred to by various names such as rotary valves, feeders, star valves. Industrial Type Air Locks; Discharge air locks under jet pulse filter, discharge air locks under cyclone, discharge air locks under silo, dosing locks, process locks, locks suitable for special projects. Production material; Cast (cast, sphero, stainless) Sheet construction (St 37/2, St 52/3, Hardox, AISI304/316/321/309/310). According to the process; They can be used as dosing and discharging elements. According to the working conditions; they are offered with different features based on their drive-type, bearings and blade tips.

Capacity Range: From 100 m³/h to 700.000 m³/h flow rate. Pressure Range: from 10 mmWC to 3500 mmWC pressure. Centrifugal fan is defined as a mechanical device that moves air or other gases. Centrifugal fans increase the air/gas flow volume by using the kinetic energy of the impellers. In turn, it moves the air against the resistance caused by ducts, valves, and other components. Centrifugal fans displace the air radially and change the direction of the airflow by 90° degrees. They are durable, quiet, reliable, and capable of operating in a wide variety of conditions. Industrial Type Centrifugal Fans: Low, medium, and high pressured fans, boiler fans, flue fans, circulation fans, paint shop exhaust fans, acoustically/thermally insulated fans, hood fans, roof fans, plug fans, filter aspirators, pneumatic conveying fans, chopper fans with cutting blades, wear resistant fans, heat resistant fans, custom fans.

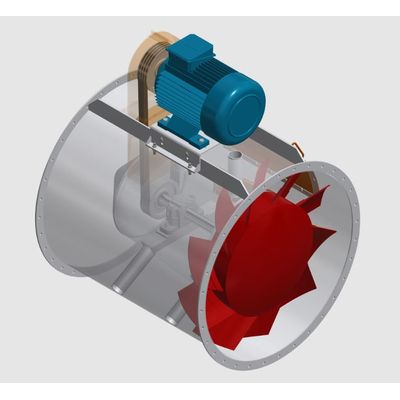

From 100 m³/h to 150.000 m³/h flow. Pressure Range: from 5 mmSS to 130 mmSS pressure. Axial fans are types of compressors that increases the pressure of the air passing through it. The blades of axial flow fans force air to move parallel to the line in which the blades rotate. In other words, the flow is axially in line with the shaft whroughout the whole fan. Axial fans are often used for ventilation in processes. In addition, project-based custom production axial fans are also manufactured. Industrial type axial fans: wall type, duct type, roof type, ventilating fans, hot air exhaust fans, cooling fans, steam exhaust fans, shell cooling fans, special type fans to operate at high temperatures, fans for special projects. Industrial type axial fans: can be manufactured with different blade numbers and profiles based on flow and pressure variables.

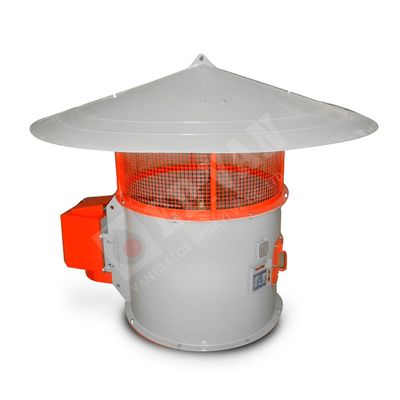

Capacity Range: from 100 m³/h to 50,000 m³/h flow. Pressure Range: from 5 mmSS to 130 mmSS pressure. It is a type of fan mounted on the roof of the plants for ventilation purposes. It can be manufactured with different properties considering the capacity, process, and space requirements. Industrial-type roof aspirators can be manufactured with different blade profiles and numbers based on flow and pressure variables.

Jet filters with a filtration surface area of 5 m² - 7000 m² are designed and produced within our company. Jet pulse filter is an air pollution control device that separates particulate matter from air or gas. Filter bags made of polyester felt are used as filtering elements. System elements consist of screw conveyor, airlock, and centrifugal fan. It can be used with the cyclone unit depending on the system requirement. Jet filter unit works with 6 – 7 bar air pressure. Compressed air entering the system vibrates via a solenoid pulse valve with a remote electronic control card and ensures the cleaning of the filter elements.

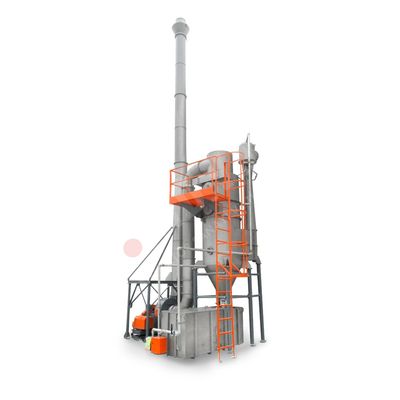

Capacity Range: 1000 m³/h to 50.000 m³/h flow rate. Wet Scrubbers, which are another type of dust collection unit, are effectively used in processes where there is a risk of dust and gas mixture and spark in a humid environment. As a result, it is a process which collects the particles with the intense interaction of sucked air with water. The part that ensures the correct operation of the system in the product is the pump

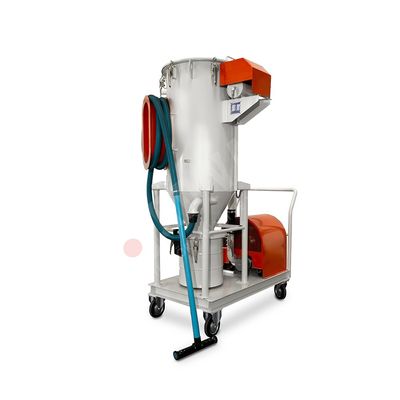

The company designs and manufactures mobile type cleaning units with flow rate of 100 m3/h - 500m3/h within its own organisation. Jet type pulse filters are air pollution control devices that separate particulate matters from the air or gas. Filter cloths made of felt are used as filter components. System components are comprised of a screw conveyor, air lock and centrifugal fan. Depending on the system requirement, they may be used together with the cyclone unit. Jet filter unit operates at an air pressure of 6 – 7 bars. Compressed air entering the system achieves vibration via an electronic remote control card with a solenoid impact valve and ensures the filter components to be cleaned.

Capacity Range: From 550 m³/h to 66.000 m³/h flow rate. Being included in the category of industrial dust collectors, the cyclones are used directly or before the jet filter to collect solid particles. Cyclones operate on the dust separation principle, after a cyclonic movement at the inlet. Air lock and weighted cover can be counted as equipment of the unit. The cyclone collects coarse-grained materials based on their structure, as fine materials in dusty air can be removed outside. If this value is within acceptable limits, the cyclone itself can be used as a dust collector.

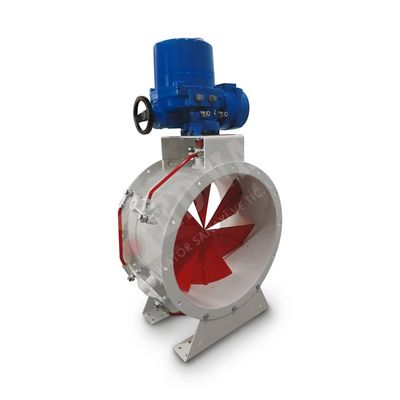

Drallegler Valve, Butterfly Valve, Volumetric Valve. According to the production material: Carbon steel (St 37/2, St52/3 etc.) Stainless steel (AISI 304/316/321/309/310).

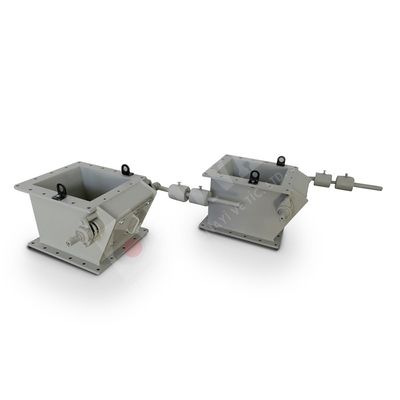

Weighted Valve, Slide Valve, Pendel Valve, Y Valve. According to the production material; Carbon steel (St 37/2, St52/3 etc.) Stainless steel (AISI 304/316/321/309/310).
