7 products found
Edinburgh Instruments - TECHCOMP Group products
Lasers and LEDs
Edinburgh - Picosecond Pulsed Diode Lasers Device
The EPL picosecond pulsed diode lasers are a family of high performance, cost effective excitation sources for fluorescence lifetime measurements.
Edinburgh Instruments - AGILE Picosecond Pulsed Light Source
AGILE® is a wavelength-tunable, high brightness supercontinuum laser providing picosecond pulses with variable kHz to MHz repetition rates. It features a broadband spectral output from <400 nm to >2000 nm and pulse repetition rates from 10 kHz to 1 MHz, making it the ideal light source for the majority of fluorescence lifetime applications. Using the Time-Correlated Single Photon Counting (TCSPC) technique, fluorescence lifetimes from a few picoseconds to microseconds can be accurately resolved. It is also compatible with Multi-Channel Scaling (MCS) mode for lifetimes extending beyond the microsecond range. Coupling AGILE to a monochromator provides continuous wavelength tuning across the visible and near-infrared spectrum with output power and temporal profile comparable to individual, single wavelength, picosecond pulsed diode lasers.
Edinburgh Instruments - Pulsed LEDs - EPLED Series (UV/VIS)
Sub-nanosecond pulsed LED light source Optimised for TCSPC Pre-set Repetition Frequencies from 20 KHz to 20 MHz External Trigger Facility Optimised Collimated Beam Spectrally Purified Output Built-In Drive Electronics

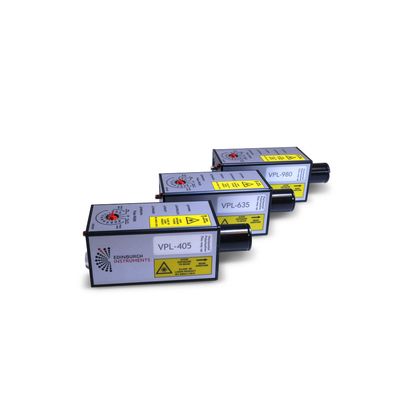

Edinburgh Instruments - Variable Pulsed Lasers - VPL Series (VIS/NIR)
Optimised for MCS 14 Pre-Set pulse widths from 50 ns to 1 ms External trigger capability Adjust pulse width and repetition rate with input trigger pulse Operation in CW mode Spectrally Purified Output Compact plug-and-play design
Edinburgh Instruments - Variables Pulsed LEDs - VPLED Series (UV/VIS/NIR)
Optimised for MCS; 14 Pre-Set pulse widths from 50 ns to 1 ms; External trigger capability; Adjust pulse width and repetition rate with input trigger pulse; Operation in CW mode; Spectrally Purified Output; Compact plug-and-play design
Edinburgh Instruments - High Rep. Rate/Power Lasers - HPL Series
Optimised for TCSPC; Repetition rates up to 80 MHz; Standard and high-power operation mode; External trigger capability; Spectrally purified output; Compact plug-and-play design
