Edmund Bühler GmbH products

The shaker KM CO2 made of stainless steel was especially designed for use in incubators with up to 20% CO2 concentration and up to 95% humidity. This guarantees the optimum development of your cell cultures. Because of the ribbon cable a feedthrough is not required in the incubator.

The shaker KM CO₂ made of stainless steel with orbital shaking motion was especially designed for use in incubators with up to 20% CO₂ concentration and up to 95% humidity. This guarantees the optimum development of your cell cultures.

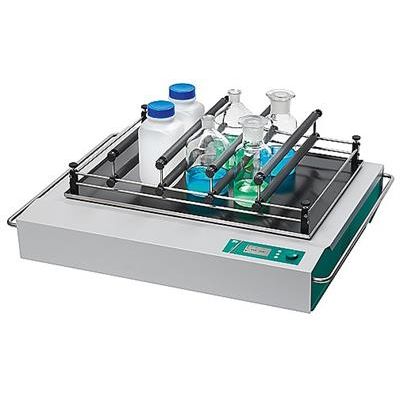

The orbital shaker SM 30 A is ideally suited for high loads up to 30 kg and for mixing difficult media. The wide choice of rack systems ensures optimal fastening of different vessels.

Big heavy-duty shaker VKS 75 A control with digital display and programmable control has  an orbital shaking motion, a speed range of 30 – 200 rpm and a stroke of 26 mm. The VKS 75 A control is ideally suited for high loads up to 75 kg.(floor installation only!)

Designed for melting samples of approx. 5-20 g up to 3500°C, sufficient for most laboratory purposes. Small melting chamber ensures fast evacuation and low gas consumption. Freely movable, water-cooled electrode. Dismountable, water-cooled copper crucible plate with trough-shaped moulds. Crucible plates with customized moulds on request. Reliable, contactless ignition of the arc. Powerful arc melting generator, integrated in the housing. Pressure manometer and valves for evacuation and gas inlet into the arc melting chamber.

Long-term heat treatments of alloys and compounds in high vacuum or inert gas. Double-walled, water-cooled high vacuum chamber   with tungsten heating elements and heat shields. Max. temperature: 2400°C. Pyrometric temperature measurement (option). Incl. power and control cabinet.

Laboratory scale system for max. 5 or 10 g per run. Copper spinning wheel  ø 200 mm. Complete system consisting of a high vacuum chamber, rack system, adequate high vacuum pumping system (including turbomolecular or diffusion pump),  and RF generator (different models available, 5 - 6 kW).

XRD chamber for operation in well-defined atmospheres (e.g. inert gas, N₂, air,  oxidative mixtures up to 1 bar) or in high vacuum down to 10^-5 mbar.

Well suited for crucible-free melting of reactive alloys with high melting points (max. 2500°C) (levitation melting). Splat size: thickness 20 – 100 µm and ø 10 – 30 mm, depending on the sample volume. Special compact RF generator (5 kW), optimized for levitation melting. Cooling rates of up to 10⁶ K/sec.

For controlled, inductive melting and alloying in high vacuum or argon gas atmospere. Water-cooled copper tube with moulds for max. 20 g,  encapsulated in a quartz tube so as to be vacuum tight. Optimized homogenization of metals with low or different melting points. Induction coil with linear guide across the sample for intensive mixing. Fast pump-down times. Compact system in a moveable rack with built-in generator, turbomolecular pump and high vacuum gauge. Safety hood, safety switch for generator, cooling water flow control.
