EFE products

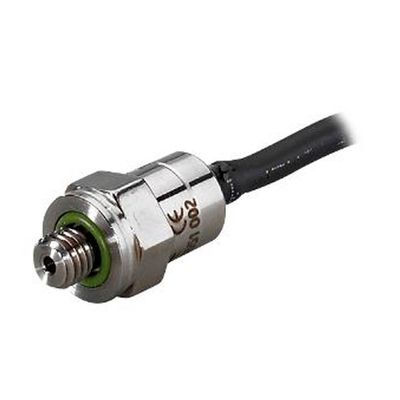

The PDC167 pressure sensor features the latest technological innovations developed by EFE. The PDC167 pressure sensor features the latest technological innovations developed by EFE. The all stainless steel thin film pressure sensing element makes it compatible with most industrial fluids, including the most corrosive. The built-in electronics deliver a high level signal 0.5-4.5V. This smart module allows a correction of the sensor’s measurements in pressure and temperature over the compensation range. It is thus endowed with extreme precision: the total error band is ±0.5% for the entire range from -55 to +125°C. This precision does not limit the dynamics of the sensor :the bandwidth of the signal being as standard 1kHz @-3dB. Miniature and robust, the PDC167 is particularly suitable for embedded use combining temperature, vibrations, shocks and where size and mass are at premium.

The PHE860 series is designed to operate in the harshest environments, including wide operating temperature, mechanical shocks and vibrations

The PCM160 series sensors allow simultaneous measurement of pressure and temperature at a single point.

Operating up to 250°C, PET160 is a ruggedized pressure sensor dedicated to extreme temperature.

The PDM220 series pressure sensors provide accurate differential pressure measurement of gas and liquids in ranges from 250mbar up to 600bar. he PDM220 series pressure sensors provide accurate differential pressure measurement of gas and liquids in ranges from 250mbar up to 600bar. Standard unamplified and amplified analog outputs are available : mV/V, 0.5-4.5Vdc, 0-5Vdc and 2-wire 4 to 20mA current loop. They are suitable for uni or bi-directional measurement. Their construction being all stainless steel, they are compatible with most media, including corrosive fluids used in automotive and aerospace industries.
