E.H. Wachs products

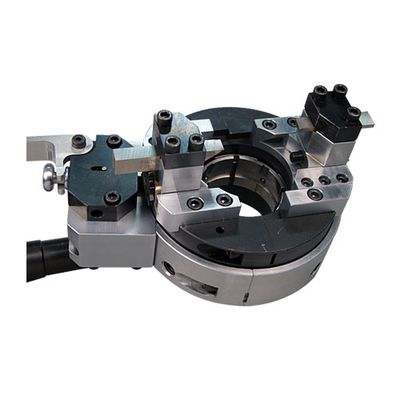

SDSF 1.0 Small Diameter Split Frame designed for pipe and tube from .5in to 1in O.D. (DN15-25). 6 models are available to cold cut, bevel and counterbore pipe and tubing from .5in to 6.6in (12.7mm – 167.6mm) OD. Includes 1in frame, pinion housing, spare fastener kit, operating hand tools, manual and storage case. Tool slides, collets and drive motor sold separately. The SDSF series offers a lightweight and low profile design to fit into the tightest quarters, such as in pipe racks. Designed to cut, bevel and counterbore pipe up to .4375in (11.1mm) wall thickness, it splits in half and mounts via either self centering collets or with versatile extension legs. A double sided pinion housing is standard for versatile drive motor mounting.

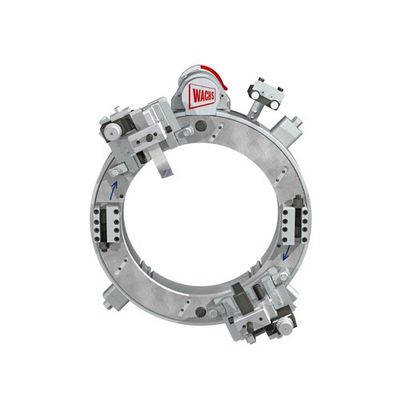

DynaPrep MDSF Split Frame 206 2in-6in OD (DN50 - 150) Base Kit, rotating split ring style OD mounted machine tool, is designed to perform. As an inline Pipe cutter - (parting), double parting (utilizing two cutting blades) or simultaneous cold cutting and beveling of inline pipe and elbows. As an inline Pipe beveler, beveling, compound beveling, and creating J-Preps with specific radius and precise lands, ideal for weld preparation. Pipe End Prep Counterboring of inside mating surfaces prior to welding. As a Flange Facer to face smooth flange surfaces, record groove flanges, and plunge cut RTJ ring grooves. Heavy Wall pipe machining up to a 2.5in (63mm) wall thickness.

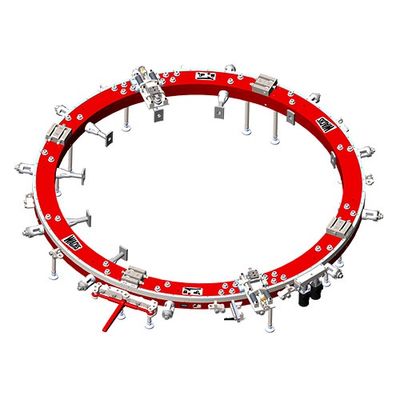

Wachs LDSF 75 Large Diameter Split Frame with hydraulic drive is designed for cold cutting, beveling, facing and counterboring on large diameter pipes, vessels and flanges from 60in-75in OD (1524mm-1905mm). It incorporates multiple advancements designed to make it stronger, faster to set up, and easier to operate. Picking up where our DynaPrep MDSF split frames leave off, four standard LDSF Large Diameter Split Frame sizes will cover a range from 60in-120in O.D. (DN1500-DN3000). Each machine covers a 15in (381mm) diameter range and will simultaneously cut and bevel most wall thicknesses and materials.

SpeedPrep SDB 103/3 Small Diameter Beveler 110V 60Hz electric handheld end prep machine tool is designed to face, bevel and counterbore 1.16” (29.5mm) ID through 4.5” (114.3mm) OD tube and pipe. Includes HD electric drive, standard mandrel 1.16in - 4.18in (29.5 - 106.2mm) ID, 7 sets of leg extensions, operating hand tools, manual and storage case. Pneumatic version pictured.

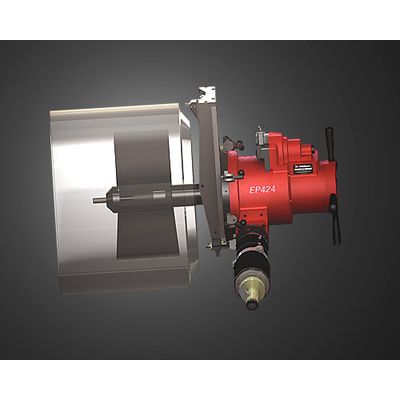

The Wachs SpeedPrep EP 424 End Prep with the AutoFeed system is a precision I.D. mount end prep machine tool designed to bevel, compound bevel, J prep, face and counterbore pipe, fittings and valves. Utilizing our revolutionary AutoFeed mechanism that feeds simultaneously in the axial and radial planes, the EP 424 is able to machine any bevel or compound bevel without templates, incline tool slides or work stoppages. With the AutoFeed system, it`s now possible to set the bevel angle and land that works best for your application, all without work stoppages or additional stoppages. Powerful enough to form tool from 4 inch - 16 inch (DN100-400) through Schedule 160, it will single point from 4 inch - 24 inch (DN100-600) up to a 6.5 inch (165mm) wall thickness.

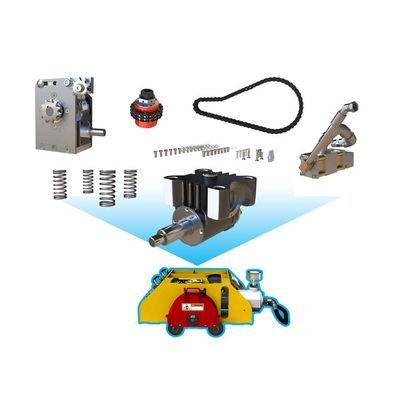

If your existing Trav-L-Cutter Model E is in need of repair, or you are looking to bring your existing machine up to the newest Trav-L-Cutter Super Duty specification, Wachs offers the Trav-L-Cutter Super Duty (TLC SD) Upgrade Kit for select Model E Pneumatic machine tools.

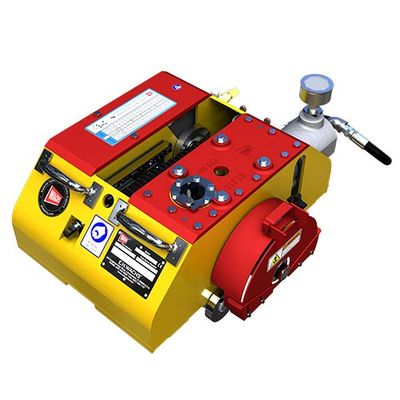

Wachs Trav-L-Cutter, or "Travel Cutter," is a portable inline pipe and pipeline cold cutting and beveling milling machine with 6in-72in O.D. (DN150–1800) on most pipe and vessel materials and schedules (optional drive chain sections required for OD greater than 48in). Secured to the pipe by a special mounting/drive chain, the Trav-L-Cutter drives itself around the pipe as it simultaneously cuts and bevels, providing a machined surface ready for welding. It`s designed for severing and beveling all common pipe materials, wall thicknesses and sizes. Now in its fourth generation, Wachs newly updated Trav-L-Cutter Super Duty, or SD, is reengineered with improved performance to make it more durable, more controllable, and more powerful. While externally identical to the previous model apart from its red top covers, it features new internals designed to make a tough machine tool even tougher.

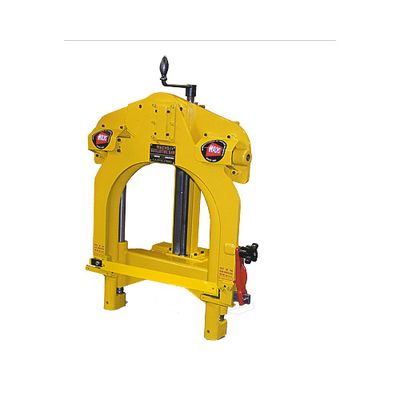

Guillotine® Super C Hydraulic drive reciprocating pipe saw designed to cut solids, multi-stranded casing strings and nested materials from 2in - 12in (DN50-300 or 5 to 30 cm) with choice of horizontal or vertical mounting. Complete with blade, storage case, operating hand tools and manual. E.H. Wachs family of portable Guillotine pipe saws are designed to cold cut 2in - 32in (DN 50-800) pipe, as well as solids such as bar stock, rails and beams. Their compact design and easy setup make it the ideal saw for contractors, pipeline operations, refineries, petrochemical and processing plants and anywhere a fast, safe cut is needed. In use virtually everywhere, Wachs Guillotine reciprocating saws are strong yet light, simple to mount, simple to operate and simply bulletproof. It’s no wonder that when pipe saws are first mentioned, the “Wachs Saw” is mentioned first.

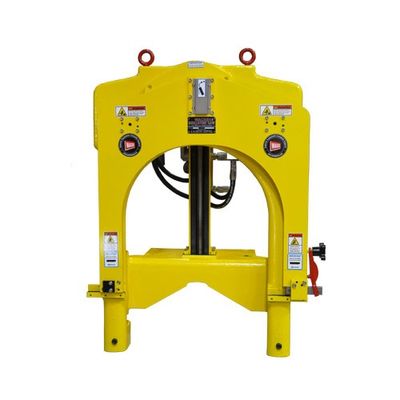

Guillotine Model D hydraulic drive reciprocating pipe saw designed to cut solids, multi-stranded casing strings and nested materials from 6in - 18in (DN150-450 or 15cm - 46cm) or up to 16in (DN400 or 41cm) on ductile pipe, with a choice of horizontal or vertical mounting. Complete with HD drive, blade, operating hand tools and manual. E.H. Wachs family of portable Guillotine pipe saws are designed to cold cut 2in - 32in (DN 50-800) pipe, as well as solids such as bar stock, rails and beams. Their compact design and easy setup make it the ideal saw for contractors, pipeline operations, refineries, petrochemical and processing plants and anywhere a fast, safe cut is needed. In use virtually everywhere, Wachs Guillotine reciprocating saws are strong yet light, simple to mount, simple to operate and simply bulletproof. It’s no wonder that when pipe saws are first mentioned, the “Wachs Saw” is mentioned first.

Guillotine® Super D hydraulic drive reciprocating pipe saw designed to cut solids, multi-stranded casing strings and nested materials from 10in - 24in (DN250-600 or 25cm - 61cm) or up to 22in (DN550 or 56cm) on ductile pipe, with a choice of horizontal or vertical mounting. Complete with blade, operating hand tools and manual. E.H. Wachs family of portable Guillotine pipe saws are designed to cold cut 2in - 32in (DN 50-800) pipe, as well as solids such as bar stock, rails and beams. Their compact design and easy setup make it the ideal saw for contractors, pipeline operations, refineries, petrochemical and processing plants and anywhere a fast, safe cut is needed. In use virtually everywhere, Wachs Guillotine reciprocating saws are strong yet light, simple to mount, simple to operate and simply bulletproof. It’s no wonder that when pipe saws are first mentioned, the “Wachs Saw” is mentioned first.
