Ekogrid Oy products

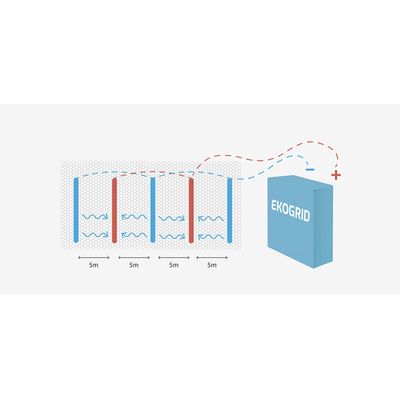

EKOGRID technology can be installed almost anywhere. It is very efficient to use in porous ground and is cost competitive in situations with deep contamination or contamination under built infrastructure. EKOGRID in situ remediation has none of the negative factors related to mass transfer or the use of chemicals. The customized electrokinetic field is created using a series of steel electrodes that are set apart and installed in the ground to be treated.

EKOGRID technology can be installed almost anywhere. EKOGRID is effective for the treatment of soil after it has been excavated. This treatment can be done on-site, ex situ at a treatment center and/or using: Biopiles Biocells Biocontainers The customized electrokinetic field is created using a series of steel electrodes that are set at intervals and installed in the excavated soil to be treated.

EKOGRID™ technology can be used in conjunction with other remediation methods when treating contaminated soils and groundwater. The most frequently used combinations to date include coupling EKOGRID with pump & treat systems and with other additive based enhanced bioremediation solutions. In standard remediation (induced electrolysis) mode, EKOGRID™ pulses are equally timed in both directions between the electrode rows. In addition to inducing electrolysis the low voltage current makes the charged contents of the pore water move back and forward resulting in the electrokinetic mixing effects at the soil particle level but no bulk movement in the direction of any electrode.
