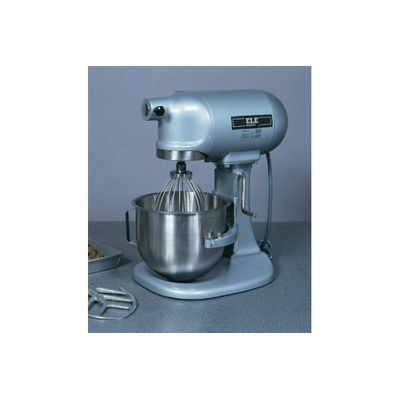

The mixer has two electrically switched mixing speeds which obviates the need to switch off during speed selection. The mixing head comprises a beater which contra-rotates about a central shaft using planetary gearing. A lever-acting lifting device facilitates the insertion and removal of the bowl. This mixer is suitable for the mixing of soil samples, mortar, bituminous mixtures and associated materials where comparatively small samples are being prepared. Supplied with stainless steel bowl, beater and whisk.

Air Entrainment Meter B Type Complete with Carrying Case. Supplied with Aluminium Tamping Bar. The proper control of entrained air in concrete is recognized as one of the most important functions in modern concrete manufacture. For the concrete engineer, the ELE Precision Air Entrainment Meter offers an instrument for the testing and designing of concrete mixes. The instrument is designed so that the operating parts form an integral unit. The container is rigid, thus providing an accurate device for the performance of unit weight testing. For convenience, the tare weight in grams is stamped on the bottom. When used with the supplied nomograph, the air meter provides quick and easy particle density and percent of free moisture in aggregate determinations.

Specifically designed for measuring crack width in concrete, this high definition microscope operates via an adjustable light source provided by high power batteries. Supplied in a pocket sized carrying case. Crack Detection Microscope Magnification X 40 Measuring Range of 4mm In 0.02mm Divisions

Capacity litres 0.75. EN 413-2 Yes. BS 459-2 Yes. Description Air Entrainment Meter.

This mixer is designed to mix mortars and cement pastes to the requirements of the above Standards. The mixing paddle has a planetary motion and is driven by a motor with a microprocessor based speed and program controller. The mixer can be operated either in an automatic or manual mode. When the mixer is used in the manual mode, the two mixing speeds can be changed by means of a rocker switch, without switching off the motor. In the automatic mode any one of the preset mixing programs may be selected.

Description Drying Oven. Capacity, litres 100. No. of shelves supplied 3. No. of shelf positions 4. Temperature Fluctuation +/- 0.75 °C. Internal Dimensions (length x width x height) mm 460 x 490 x 450 mm. Temperature Range °C 40 - 250 °C. Voltage Supply 220-240 V 50/60Hz. BS 2648 Yes. BS 598 Yes. BS 1377 Yes. BS 1924 Yes.

Designed to measure the asphalt binder content of hot mix asphalt (HMA) using loss on ignition, in accordance with AASHTO T 308-10, ASTM D6307-10 and BSEN 12697-39:2012. The integral microprocessor controlled weighing and calculation system is configurable to allow variations to the standard test method. Test result reports are available in both printed and software format. The high temperature afterburner minimises the production of noxious waste fumes. Supplied complete with 2 sets of sample baskets.

Hand Operated Pressure System. Complete with Pressure Gauge and Flexible Hose.

Capacity resolution 16000 g x 0.5 g. Pan size 225 x 300 mm. Mains and battery Yes. Dimensions (l x w x h) 340 x 320 125 mm. Weight 4 kg
