Electro-Tech Systems products

ETS can help you build a custom temperature and humidity environmentally controlled glovebox or chamber that meets your requirement for your research or process. High quality acrylic and polycarbonate enclosures are built to customer specifications up to 125 cu. ft. (3540 l). Chambers can be configured for any contained environment including: Sealed working chamber, Contamination control enclosure, Mixing chamber, Storage and conditioning, Testing of raw materials and powders for pharmaceutical, military, ESD, and R&D., Product Testing including electronic and biomedical devices

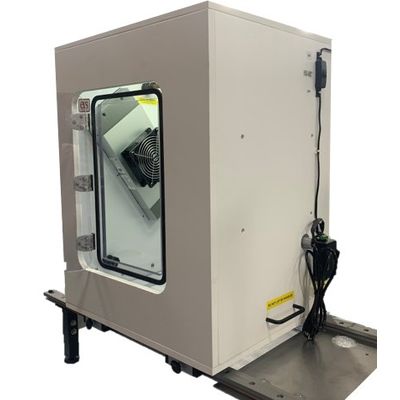

The ETS Model 5502 Environmental Chamber Series for Instron™ Universal Testing Machines addresses end-user needs to accurately control temperature and humidity during testing, providing a high quality, user-friendly solution at an affordable price. The Model 5502 series chambers are designed in cooperation with Instron™ and the customer to address the specific requirements for each application. All systems are custom designed providing consistent and accurate testing and data collection.

The new ETS Model 9903 is fully compliant with Specification ANSI/ESD/JEDEC JS-002-2018 and related methods offering both large and small disk calibration compliance. The system is designed to work as an add-on to all ETS 9910 Series ESD Simulators and brings fully compliant induced CDM testing capabilities to your laboratory and production department. The Model 9903 Charged Device Test Fixture is a completely integrated unit that provides the means of performing both direct charge and field induced CDM tests. The Model 9903 CDM Test Fixture consists of a magnetic stainless steel field induction plate/ground plane and a control module that controls the charging and grounding function. It contains the upper ground plane, spring-loaded discharge pin and the discharge button.

The Model 9910 PinPulse™ Electrostatic Discharge Simulator, which replaced the previous generation model 910, is a completely integrated system used to determine the ESD susceptibility level of electronic devices up to ±8kV in accordance with Mil-Std 883C Method 3015 and ESD STM 5.1 and 5.2. The Model 9910 ESD Simulator is a valuable tool for developing components for use in today’s military, industrial and consumer electronic applications. Electrostatic discharge (ESD) is a significant factor contributing to the disruption of electronic equipment or the premature failure of microelectronic devices in both the field and during the manufacturing process.
