Electronet Equipments Pvt. Ltd. products

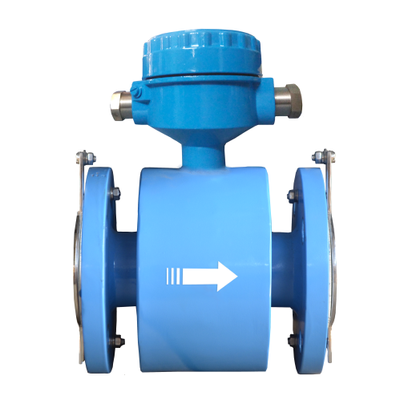

Electronet series ELMAG-TX22 are micro-controller based 2 wire full bore type electromagnetic flow transmitters specially used for various industrial applications. These flow transmitters accurately measure the flow rate of conductive liquids and slurries in closed pipes. Due to its simple and rigid design, the flow transmitter is an obstruction-less and maintenance-free instrument in place of conventional mechanical flow measuring device. The use of 'Pulsed DC' technology offers highest ability and better measuring accuracy in the form of electrical signal 4-20 mA DC linearly proportional to volumetric flow, The instrument is based on Faraday's law of electromagnetic induction. A magnetic field is generated by the instrument in the flow tube. The fluid flowing through this magnetic field generates a voltage that is proportional to the flow velocity and corresponding electrical output is provided with respect to ensuring voltage.

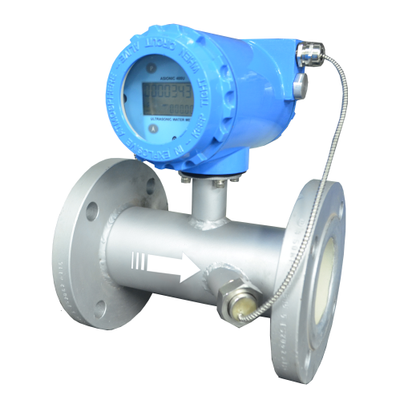

Electronet series ASIONIC-200 is a micro-controller based full bore type Ultrasonic Flow Meter, specially used for various industrial applications. These flow meters accurately measures the flow rate of liquid in closed pipes. Due to its simple& rigid design, the flow meter is an obstruction-less and maintenance free instrument in place of conventional mechanical Flow measuring devices. The system is well suited to most environments. Programming of the flow meter is simple and can be accomplished with 4 keys available on instrument, It provides access to an extensive range of diagnostic information. ELECTRONET manufactures several flow meter consoles to meet the specific requirements of various applications.

Electronet series ASIONIC - TX-22 are micro-controller based Two Wire Full Bore Type ultrasonic flow transmitters specially used for various industrial applications. These flow transmitters accurately measure the flow rate of conductive/ non conductive liquids in closed pipes. Due to its simple and rigid design, the flow transmitter is an obstruction-less and maintenance-free instrument in place of conventional mechanical flow measuring device. The use of 'Transit Time' technology offers highest ability and better measuring accuracy in the form of electrical signal 4-20 mA DC linearly proportional to volumetric flow. The instrument is based on Faraday's law of electromagnetic induction. A magnetic field is generated by the instrument in the flow tube. The fluid flowing through this magnetic field generates a voltage that is proportional to the flow velocity and corresponding electrical output is provided with respect to measuring voltage.

Electronet series PT-22S is Electronic Pressure Transmitter & Switche for fast, easy & trouble free operation. These switches are designed to cover a majority of industrial applications such as gas, liquid etc. Analog output is 4-20mA & Pressure switch output is 2Amp. Optocoupler phototriac & a power triac combination is used for switching, Optocoupler phototriac switch acts as an isolated driver and thus enables the driving of power triac by micro-controller.
