Electronsystem MD srl products
High Voltage Switchgears - Gas Density Controller
Electronsystem - Gas Density Controller
OPTIONS: Able to calibrate a “Self-diagnosis” contact for monitoring the reference chamber and alert user should leakage occur. The device would still function normally if there was a leak in the measuring bellow. Available with digital or analogue output signal for continuous monitoring (GDHC); typically used with remote monitoring devices which totalize fugitive SF6 emissions and/or provide SF6 refill maintenance forecasting. Customized gas connections. Low temperature version available (-60°C).

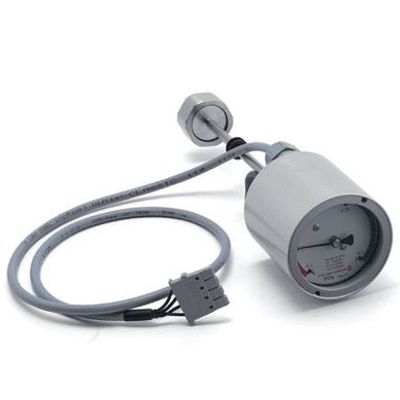

Electronsystem - Gas Hybrid Density Controller
The Gas Hybrid Density Controller is an evolution of the GDC device which integrates our SGM (Static Gas Monitor) device, making it two devices in one! The addition of the SGM, electronic density transmitter, provides an electronic signal to allow a continuous reading of the physical properties of the SF6.This includes, pressure, temperature, & density. The output can be configured for analogue or digital RS485 protocols; allowing simple integration with smart grid, data logging, and remote monitoring devices used to forecast predictive maintenance.
Medium Voltage Switchgears - Density Switches

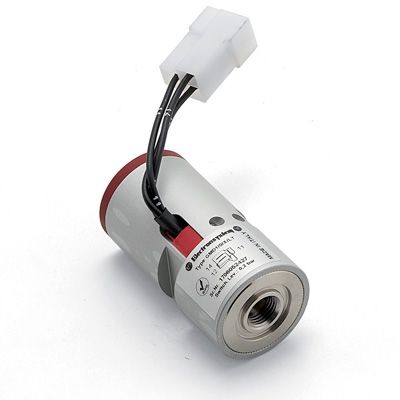

Electronsystem - Density Switche
Features & Benefits: Medium Voltage Switchgear. Gas density monitoring of SF6 switchgear. Up to 4 switching levels. Follows SF6 Isochor (temperature vs. pressure curve), even in liquid phase, meaning no false alarms in low temperatures. Pressure and reference chamber bellows made from stainless steel. Use of micro-switches to eliminate contact bouncing. Shock proof up to 50G on 3 axes. Maintenance free.

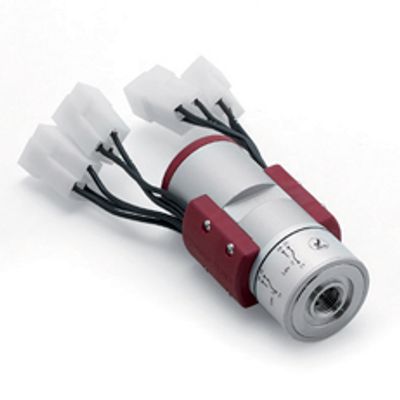

Electronsystem - Density Switches
Features & Benefits : Medium Voltage Switchgear. Gas density monitoring of SF6 switchgear. Up to 4 switching levels. Follows SF6 Isochor (temperature vs. pressure curve), even in liquid phase, meaning no false alarms in low temperatures. Pressure and reference chamber bellows made fromstainless steel. Use of micro-switches to eliminate contact bouncing. Shock proof up to 50G on 3 axes. Maintenance free.
Electronsystem - Density Switche
Whether the application requires multiple levels of protection, space limitations, or simply reducing leakage points, the GDMX is a great solution.The system provides two layers of protection by monitoring both gas density and arcing events. The multiple bellows system is used to monitor pressure and provide temperature compensation.
Medium Voltage Switchgears - Gas Density Controller
Electronsystem - Gas Density Controller
The CDM offers a plug-and-play solution for indoor MV switchgear to replace a standard gauge with a density monitor. The bellows based device features reference chamber technology, and up to 2 switching contacts, for remote monitoring, all housed in a compact housing.
Medium Voltage Switchgears - Pressure Gauges for MV Switchgear
Electronsystem - Pressure Gauge Meter
Features & Benefits : Case available in stainless steel or plastic or painted inox. Wetted parts available in stainless steel or brass. On-site display of the pressure standardised to 20°C. Pressure ranges from vacuum up to customers’ requests. Gas connectionscan be customized or according to EN837-1.
