Elektror Airsystems Gmbh products

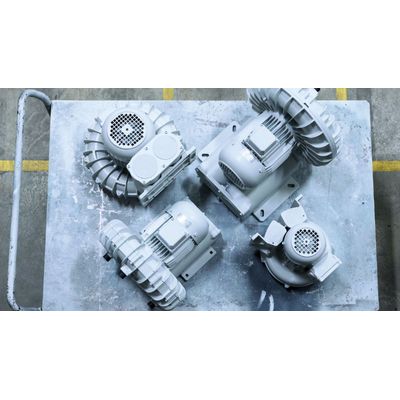

The side channel blowers from Elektror airsystems are equally suitable for high negative and positive pressures. Side channel blowers, also known as vacuum pumps or vacuum compressors, can generate significantly higher pressures than industrial fans. However, a side channel blower generates lower air flow than, for example, centrifugal fans. The operating principle of vacuum pumps has its own technology: the air gets sucked in through a fast rotary vane impeller. After this, the air in the side channel blower gets pushed and compressed outwards by the centrifugal force. It flows through the side channel back into the inner part of the vacuum blower and gets compressed again between two further blades. The second compression enables the pumps to generate significantly higher differential pressures.

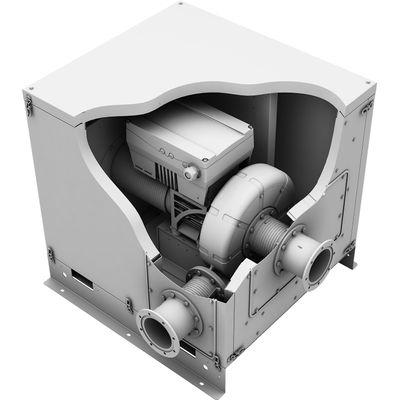

High-pressure applications at room volume with the Elektror BOX multifunctional sound insulation cover. With integrated active cooling, vibration decoupling and control. High-pressure applications at room volume with the Elektror BOX. High-pressure ventilation applications require high speeds from industrial fans. This means noise – often too much for the ergonomic requirements in the direct working environment. The BOX complete housing solution reduces noise by up to 29 dB(A)– virtually to room volume. Thanks to integrated compensators and rubber-metal buffers, a vibration-decoupled installation of the fans is also possible. In addition, the BOX features active fan self-cooling and a control system that can be integrated. The functional reliability of the fan is also increased because the intake air flow is protected from small parts.
