Elettrotec Srl products

Switch rating: 10A / 240Vac.  Contact: N/O - N/C.  Electrical connection: push-on terminals 6,3x0,8.

Type approval certificate ATEX - II 1 G EEx ia IIC T6. INTRINSIC SAFETY PARAMETERS. Working temperature -20°C to +70°C. Input voltage Vi 30V. Input current Ii 100mA. Max. input power Pi 0.75W. Input capacity Ci ~= 0. Input inductance Li ~= 0.

Materials: stem in Nylon and float in NBR. Actuation points: 1 or 2 .  Contact: N/C – N/O - SPDT.

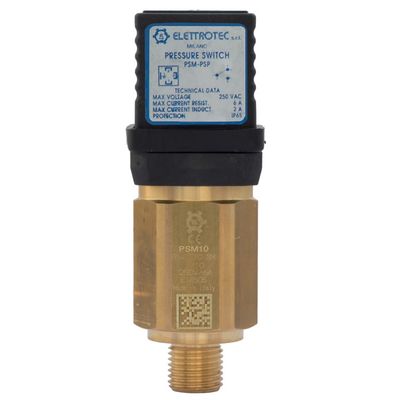

Switch rating: 1 A / 220 Vac – 3 A / 24 Vdc – 7 A / 250Vac. Electrical connection: DIN 43650 – PG09 or PG11. Working range: 2 bar – 5 bar – 7 bar – 10 bar. Max. static pressure: 450 bar. Set point tolerance: +/- 10%. Fixed differential: 30% of set-point. Temperature tange: -25 °C +140 °C (according to diaphragm/seal material). Contact: SPDT. Body material: Brass. Diaphragm/ Seal material: HNBR – FKM. Threads: G1/2″ – M22 x 1.5 – M20 x 1.5. Protection: IP67. Certification: CE. Options: Gold-plated contacts for low current – High current microswitch.

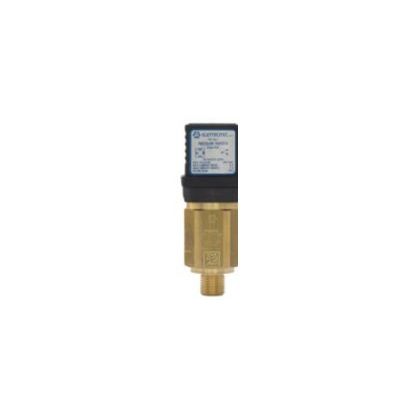

Parameters: Intrinsic safety. Electrical connection: DIN 43650 – PG09 or PG11. Input voltage: Vi 30 V. Input current: Li 100mA. Max. input power: Pi 0,75 W. Input capacity: Ci ~ = 0. Input inductance: Li ~ = 0.

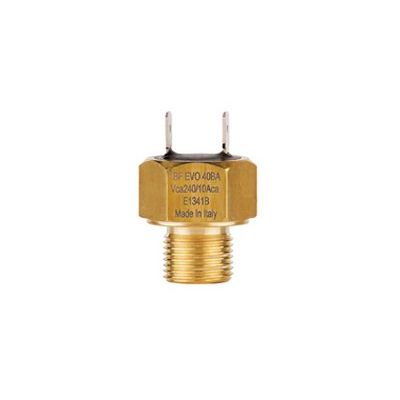

Switch rating: 0.5 (0.2) A – 48 Vac-Vdc. Electrical connection: Faston 6.3 x 0.8. Working range: -200 -900 mbar. Max. static pressure: 20 bar. HysteresiscFixed. Temperature tange: -30 °C +140 °C (according to diaphragm/seal material). Contact: NO – NC. Body material: Brass – Stainless steel AISI 316. Diaphragm/ Seal material: NBR – FKM – Silicone – HNBR – EPDM. Threads: G1/8 BSPT – G1/4 BSPT – M10 x 1 – M12 x 1.5 – G 1/4 BSPP – G 1/8 BSPP – 1/4 NPT – 1/8 NPT. Protection: IP00 fast on – IP54 with CAP 1 and CAP 10 – IP65 with CAP 3. Mechanical life: 106 operations. Dimensions: Body Ch 24 – Max. high 46 mm. Options: Set-point rising and falling – Gold-plated contacts for low current – Degreased for oxygen.

Switch rating: 10 A / 240 Vac – 05 A / 24 Vdc – 10 A / 12 Vdc. Electrical connection: DIN 43650 – PG09 (swivel plug). Working temperature: 25°C – 31°C – 38°C – 47°C – 60°C – 70°C – 80°C – 90°C – 100°C – 105°C. Accuracy: ± 5°C. Max. differential DT: 16°C. Environment temperature: -20°C to +120°C. Max. pressure: 200 bar. Contact: NO – NC. Body material: Anodized aluminium. Thread connection: G3/8″ – G1/2″ – M22 x 1.5 mm. Protection: IP65. Dimensions: Body Ch 27 – Height 74 mm (NTB) – 84 mm (NTBM). Options: Execution with optional magnet brass body.

ELETTROTEC offers know-how and flexibility in developing particular products to suit the most specific customers’ applications. Thanks to the long experience gained in different fields and with an eye constantly kept on innovation and evolution in technology, ELETTROTEC, beside a wide and comprehensive range of standard products, can supply customized solutions, as for special thread connections – either metric, taper or parallel -, IP67 executions with potted flying leads (with or without connectors) or with epoxy encapsulated caps already equipped with integrated plug.Do not hesitate to contact our Technical Department. We shall be more than pleased to help you find the right answer to your application requirements.

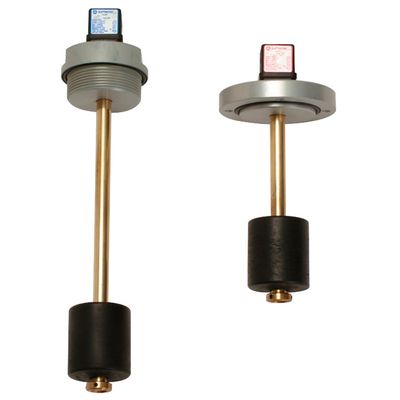

Body material: Brass. Float material: NBR. Mounting material: Anodized aluminium. Actuation point: LM1 – 1 actuation point contact NC/NO / LM2 – 1 actuation point contact SPDT / LMM1 – 2 actuation points NC/NO. Mounting: GA – Flange Ø 92 / GTA – Thread G2”. Electrical connection: DIN 43650 – PG09 – IP65. Switching capacity: LM1/LMM1 – 60W/VA / LM2 – 30W/VA. Current: LM1/LMM1 – 0.8A (resistive) / LM2 – 0.5A (resistive). Voltage: 220V – 50Hz. Temperature range: -10°C +80°C. Max. pressure: 10 bar. Fluid specific gravity: 0.7 kg/dm3. Fluid viscosity: 150 cSt. Certification: RINA – Lloyd’s Register – Germanischer Lloyd. Size: Max. lenght 2500 mm.

Body material: Stainless steel AISI 316. Actuation point: LM1 – 1 actuation point contact NC/NO / LM2 – 1 actuation point contact SPDT / LMM1 – 2 actuation points NC/NO. Mounting: GIA – Flange Ø 92 GTIA – Thread G2″. Electrical connection: DIN 43650 – PG09 – IP65. Input capacity: Ci ~= 0. Input induttance: Li ~= 0. Input current: Ii 215mA. Max. input power: Pi 0,75W. Input voltage: Vi 30V. Temperature range: -30°C +60°C. Max. pressure: 10 bar. Fluid specific gravity: 0.7 kg/dm3. Fluid viscosity: 150 cSt. Certification: ATEX – II 1 G Ex ia IIC T6. Size: Max. lenght 2500 mm. Safety parameters: intrinsic. Note: Current and power values refer to a single switch connection or to the sum of the whole connected switches.
