Elmed Ltd. products

The IUC10 model allows the measurement of the alternating current by changing it in a proportional tension signal. To a current measured in a field between 0 - 100 A an output tension of 5V DC corresponds. As the measurement method is inductive there is no electric connection between current to measure and corresponding signal. On the form there is a trimmer for the compensation of the measured signal. The unit is located in a plastic assembly container by DIN guide with possibility of quick release. The typical applications of the IUC10 form are the current measurement to test the electric motors working, the systems or instruments absorption measurement and all those application where the alternated current measurement is necessary.

IUC-20 allows to measure the input current of 1 TA. The instrument changes the input current of 0.5 Amp. In an output tension of  0-5V DC. The output tension is linear and galvanically separated. The application field is in the measurement and regulation technology.

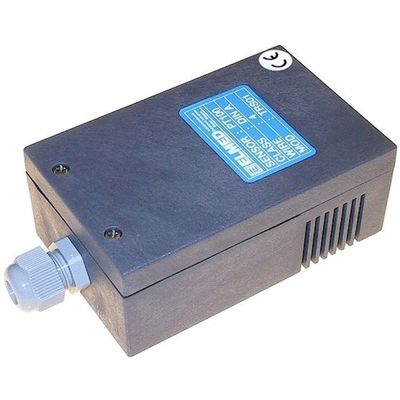

The TRS01 drill is used to measure the surrounding temperature. Thanks to its structure it is excellently used in difficult fields where a particular making strength. The temperature measurement zone is divided from the point of the electric contact so that it is possible to avoid oxidation of the connection terminals. These ones are in fact located in an IP65 area with PG9 cable access.  The measurement element, an excellent quality PT100, is a ceramic substrate model with surface covered by a passive film to  be protected. The wall assembly is realized by two screws. All the compliance with the EU norms are guaranteed. The main application fields are the temperature measurement for heating systems, air conditioning, systems for fruit treating and preservation, tobacco, food industry and weather analysis in general.

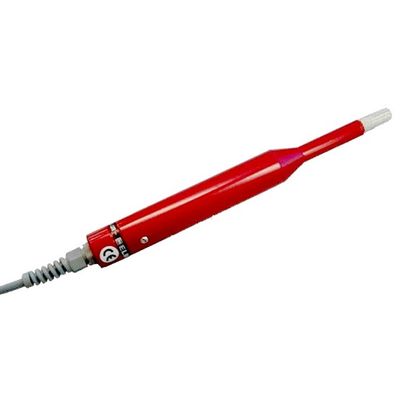

The EMS52 relative moisture transmitter is used to measure moisture and temperature in those applications where a notable precision, stability  durable stability and a good mechanic strength are required. The measurement system is capacitive including the electronic elements to condition the signal. To guarantee a long stability the hybrid technology on a ceramic film is used. The drill calibration is semiautomatic by climatic certificated room. It is possible to request the calibration certificate for every single drill so that it is possible to attest the maximum measurement mistake. The sensor is protected by a transpiring filter offering protection and speed in the response. All the EU norms are guaranteed and respected. The main application fields are the moisture and temperature measurement for air conditioning systems, fruit treating and preservation, tobacco, food industry and weather analysis in general.

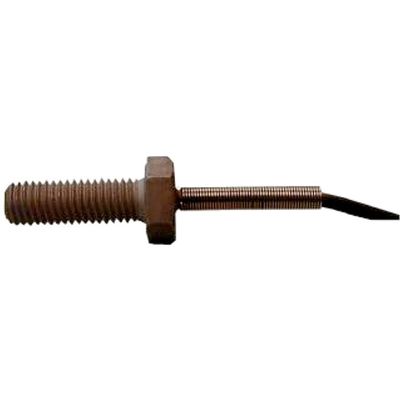

The PT100 probe temperature is used for the temperature measurement in the tube conducts. It is located inside of a 8mm strew.

The piezoceramic pressure sensor adapt  to the absolute pressare measurement. si adeguano alla misurazione della pressione assoluta. The measurement is realized inside a strong container so that the sensor can be used in different application fields and it needs no maintenance. By the measurement piezoresistive cell a low hystersis and a long high stability can be obtained.

These sensors are used to measure and control the water levels in the tanks  for water reserve. The measurement is realized inside a strong container so that the sensor can be used in different application fields that need no maintenance. By the piezoresistive measurement cell a low hysteresis and a long high stability can be obtained. The capillary pipe, which is on an electric cable, is used for the pressure difference between inside and outside.

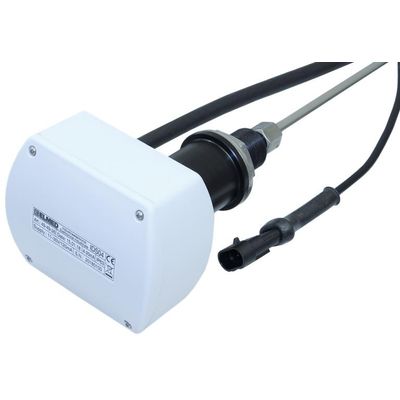

We at ELMED have produced the newly developed content sensor especially for connecting to controllers made by other manufacturers. Initially the big challenge was the lifespan of the sensor element. We overcame this by separating the medium from the sensor. Due to the high resolution of the in-built digital sensor, an integrated μController makes it possible to determine the content of the tank to the highest degree of accuracy. It is fitted to the top horizontal section of the tank. A stainless steel tube allows the level to be ascertained to just above the floor of the tank. The probe is maintenance free and can be retrofitted to any tank.

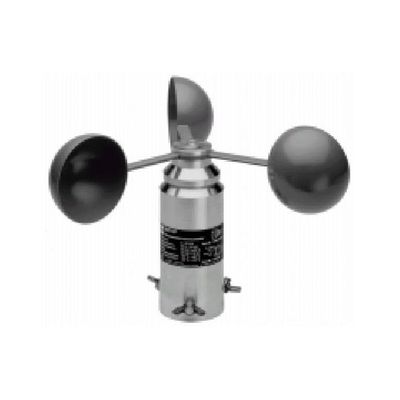

The anemometers are used for the measurement and the control of wind speed. The anemometer is protected against the atmospheric agents so that it can be used in every application field. The machine has standard heating automatically regulating and it is made of a generator of three-phase current with a rectifying link. The output tension is proportional to the revolution number in a minute and it can be used as output.

The anemometers are used for the measurement and the control of wind speed. The anemometer is protected against the atmospheric agents so that it can be used in every application field. The machine has standard heating automatically regulating and it is made of a generator of three-phase current with a rectifying link. The output tension is proportional to the revolution number in a minute and it can be used as output.
