The TraNET® FE 204 data acquisition device is a flexible and compact transient recorder or data logger and can be used for various applications. The TraNET® 204 can be equipped with 4 or 8 single-ended or 4 differential inputs. The devices are based on the Elsys data acquisition cards TPCE and therefore offer the same features and specifications. Sampling rate 2 – 240 MS/s per channel, Single ended or differential inputs, ± 50 mV to ±50V input range

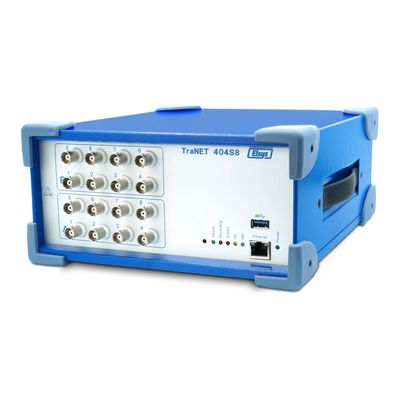

The TraNET FE 404 is the larger version of the TraNET FE 204 and can be equipped with up to 16 single ended input channels. Like all TraNET FE devices, the TraNET FE 404 is connected to a client computer via an Ethernet connection. Thanks to the integrated hard disk, autonomous long-term measurements are possible. The devices are based on the Elsys data acquisition cards TPCE and therefore offer the same features and specifications: Sampling Rate 2 – 240 MS/s per channel, Single ended or differential inputs, ± 50 mV to ±50V input range

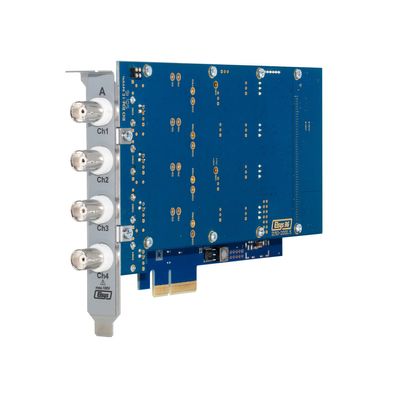

The Elsys TPCE DAQ cards are high precision and high resolution digitizer/data acquisition cards with complex trigger capabilities, a continuous data acquisition mode, differential or single-ended inputs, digital marker inputs as well as ICP/IEPE supply for piezo sensors. The various TPCE cards are in the short PCI Express (PCIe) format. A scalable measurement system can be started with one module. If required, expansion with up to 64 channels in one housing is possible.

The Elsys TPCE-LE DAQ cards are low cost high precision and high resolution digitizer/data acquisition boards with complex trigger capabilities, a continuous data acquisition mode, digital marker inputs as well as ICP/IEPE supply for piezo sensors (optional). The various TPCE-LE cards are in the short PCI Express (PCIe) format. The TPCE-LE cards differ from the TPCE cards in the following points: PCIe interface x1 instead of x4 (lower bandwidth for streaming applications), Resolution14 bit, 16 bit resolution available as option, Less input ranges: ± 100 mV to ± 25V, CMRR(Commen Mode Rejection Ration) > 60 dB vs. > 74 dB for the standard cards. Therefore, the TPCE card is recommended for differential measurements with high common mode noise.
