EMHKAM PUMPS products

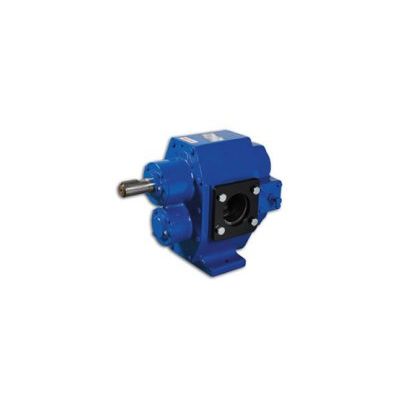

The Bevel Gear Pumps are constituted of two coactive helical gears , of silent operation. They are used in high viscous liquids such as crude oil, tar ,paper pulp, etc. They go with instuction manual for installation, use & maintenance and they are ATEX certified.

Gears of cast iron GG25, bronze or PTFE. Bypass valve of bronze, body of GG25, shafts of  42CrMo4 ,sealants (8) of NBR-VITON^® or mechanical seal(4)

Sliding vane pump 2” ATEX Electric motor 3Hp atex Reduction gear 600Rpm ATEX Flange with pipe joint Flat base with frame

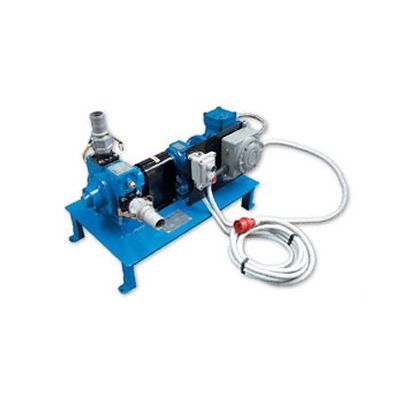

Sliding vane pump 2” ATEX Electric motor 3Hp atex Reduction gear 600Rpm ATEX Flange with pipe joint Flat base with frame Start-stop control unit with 7m antiexplosive camble Juction box with electomagnetic relay Automatic coupling Camble with plug

The 700 series rotary flow meter has a simple and efficient meter design consisting of a housing and three rotors that rotate in unison within the measuring chamber. The absence of wear, from no metal-to-metal contact inside the chamber, eliminates any deterioration in accuracy and provides a long service life. The rotors are supported by bearings inserted into two bearing plates, where at the end of each rotor shaft is a timing gear. The timed rotation between each rotor is then transferred through the calibration adjuster to the register, which will then give a consistent and superior measurement of accuracy.

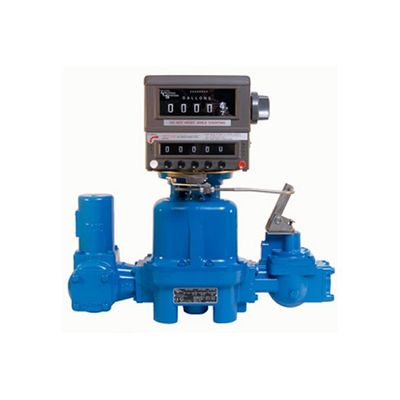

The 682 series flow meter is a true positive displacement meter that has a unique inline design consisting of three (3) reciprocating pistons operating within their respective measuring chambers, where each piston works in a manner similar to an automobile engine. The pistons are fitted to a wobble plate, which has a shaft extending from its upper surface and a valve pivot attached beneath it. The valve pivot drives a sliding valve from piston to piston as a known amount of product flows through each cylindrical bore, controlling the sequence of events in a
smooth mechanical motion. This smooth mechanical motion is then transferred through the calibrator to the register.

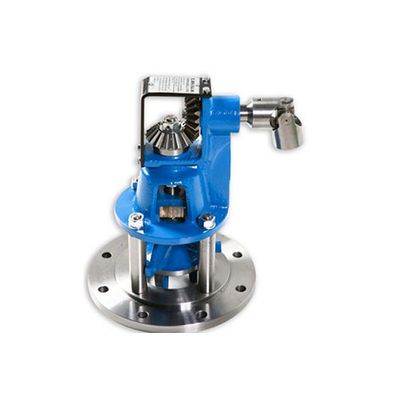

The Bottom Valve Type B100(DN100) has a H2 flange, sealant mechanism of GGG50, base of GS45.It is operated by a OPEN-CLOSE vertical handwheel with stuffing box of PTFE niperas a sealant. The product goes through hudraulic tests and is certified according to ADR 2007.

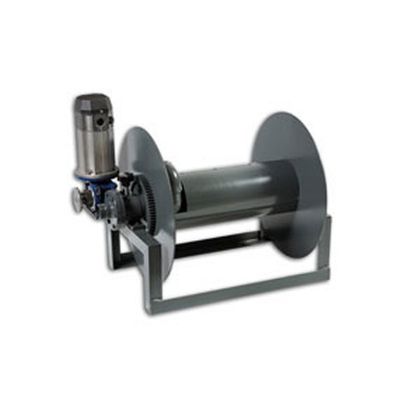

It is manufactured with strong base and two(2) trunnions. The transmission is made by gears 1:1 with the necessitous reduction.The pillow blocks are cast iron GG25.The sealants areNBR or VITON^®.The electric motor-reduction gear is direct current 24V or 12V with special throw in mechanism with gear.

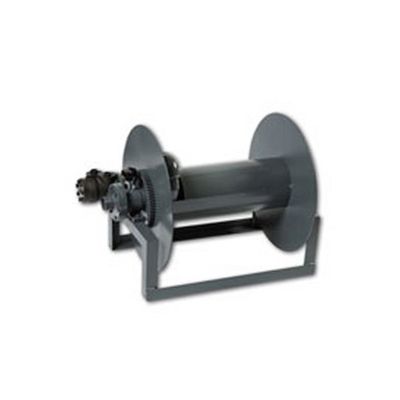

It is manufactured with strong base and two(2) trunnions. The transmission is made by gears 1:1 with the necessitous reduction.The pillow blocks are cast iron GG25.The sealants areNBR or VITON^®. Hydraulic motor  with gear.
