Empire Envirotech Pvt ltd products

Multi Rake screen is a mechanically cleaned medium or coarse screening equipment which is applicable to screen out the medium & coarse sized floating materials from the wastewater. The screenings are lifted, transported and discharged using rakes, that are also suitable for cleaning the filtration area.

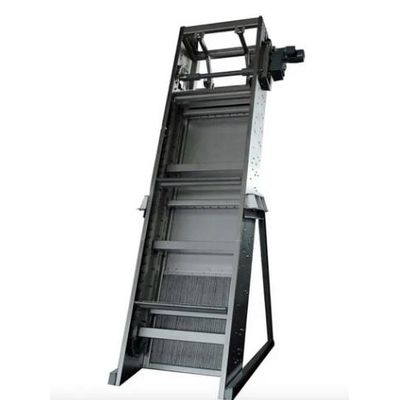

Step screen is a mechanically cleaned fine screening equipment which is applicable to screen out the finner sized floating materials from wastewater like bags, pouches, paper wastages, cloths, plastics many others. These screens operated either motor mounted on the shaft or hydraulically through power pack.

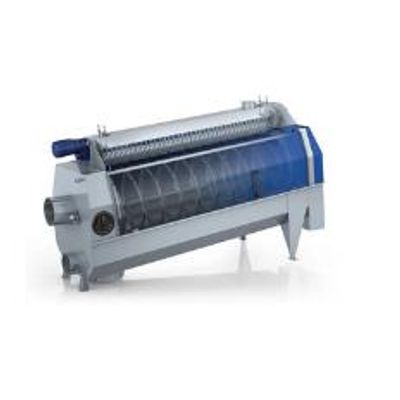

Drum screen is a rotary screen which works in externally and internally feed both. This is also a fine type screen which removes the finner sized materials from wastewater. Filteration area of these screens are constructed through wedge wire or perforated sheet.

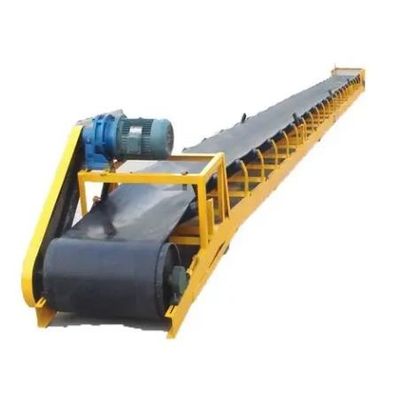

Flat Belt conveyor is very suitable for long distance transportation of screening. This is installed at the discharge points of the screens & screening conveyed to the discharge pit or screw compactor.

Screw conveyor is very suitable for non hazardous of screening. This is installed at the discharge points of the screens & screening conveyed to the discharge pit or screw compactor.

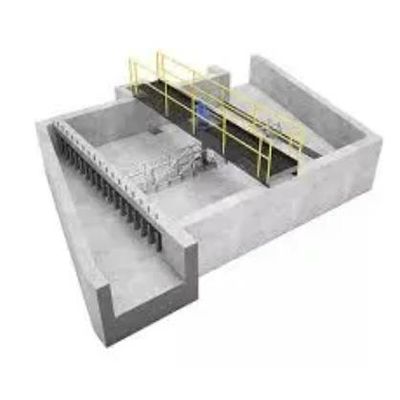

Detritors are the grit collection and washing chambers in which grit is settled down, scraped towards the collection pit then organic materials washed out through the organic return mechanism & then collected grit taken out through screw classifiers / reciprocating rake classifiers.

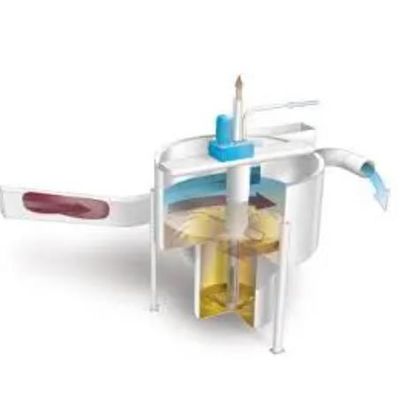

The vortex-type grit chambers (also called accelerated grit separation devices) utilize both gravitational and centrifugal forces for the separation of grit. This type of unit is designed to remove grits of specific gravity 2.5 or larger with sizes ranging from 0.15 (100-mesh) to 2mm(10-mesh).

Screening & Grit Removing (Mini Unit) is a combined equipment for screenings and grit removing; it represents the most economical solution to treat low flow rates. The incoming wastewater is filtered through a screw screen than goes into the settling tank. The internal baffle system allows an efficient separation of the sand.

Clarifiers/Clariflocculators are the settling tank where suspended/attached particle are settled down on the bottom of the tank then scraped it in a centered cone and then pumped out through sludge pump into the sludge thickner.

It is one type of clarifier. In HRSCC coagulants and the re-circulating sludge is mixed thoroughly in intimate contact for a long time in the cone sections of the clarifier. Influent from equalization tank is pumped to HSRCC. In HRSCC coagulant and poly is dosed, for proper suspended solids removal efficiency.
