EMWorks, Inc. software

EMS is an electromagnetic field simulation software which calculates fields (electric / magnetic / flux / potential / eddy currents), circuit parameters (inductance / capacitance / resistance / impedance / flux linkage), mechanical parameters (force / torque), and losses (eddy/core/hysteresis/ohmic). EMS is a Gold Certified Add-in to SOLIDWORKS® and an Add-in to Autodesk® Inventor® which enables you to simulate the most intricate electrical machines, motors, generators, sensors, transformers, high voltage apparatus, high power machines, electrical switches, valves, actuators, PCB’s, levitation machines, loudspeakers, permanent magnet machines, NDT equipment, inverters, converters, bus bars, inductors, bushings, or biomedical equipment.

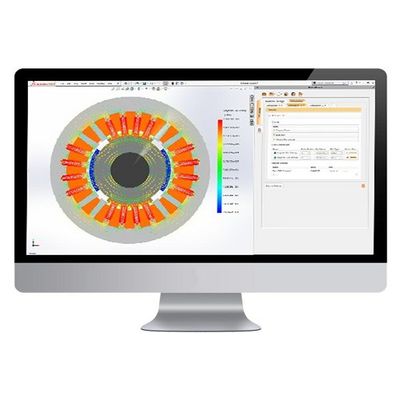

MotorWizard is a template-based motor design software which is completely integrated inside SOLIDWORKS. It allows SOLIDWORKS users to build and analyze different electric machine designs. It makes the study of the electric machines flexible and easy by giving access to a wide range of customizable dimensions and parameters that fully define the design of the electric machines. Equipped with integrated analytical and finite element-based solvers, the process of electric motor design becomes readily effortless, accurate and quick.

HFWorks is an antenna and electromagnetic simulation software for RF, Microwave, mm-wave, and high speed digital circuits. HFWorks solves electromagnetic radiation, electromagnetic waves, electromagnetic propagation, electromagnetic resonance, electromagnetic interference (EMI), electromagnetic compatibility (EMC), and signal integrity (SI) problems for RF/MW frequencies and beyond.  It uses state-of-the-art finite element solvers and meshing technologies to compute fields as well as antennas and circuit parameters. It can simulate single antenna elements as well as multiple array antenna configurations. HFWorks can also be used for time domain computations such as TDR and Eye Diagram. It can predict power handling capabilities of 3D structures and localize potential field breakdown areas. It also provides the capability to simulate RF microwave heating as a function of applied power.

EMWorks2D is a low frequency simulation software that uses FEM to solve magnetic, electric and transient problems. Both planar and axisymmetric invariance geometries can be handled in 2D, which can shorten the design process. It enables you to test and improve your designs in record time. Having an intuitive workflow, EMWorks2D integrates seamlessly into the SOLIDWORKS environment, for a truly effortless and engaging simulation experience. EMWorks2D can be used to predict the performance of transformers, actuators, electric motors, generators, permanent magnet, inductors, magnetic gears, busbars, sensors, bushings, capacitors, insulators, wireless chargers and more…
