Endecotts Ltd products

Endecotts woven wire mesh sieves are the most widely used test sieves for all types of laboratory sampling and particle size analysis.They are made with only the highest quality materials and are available in diameter sizes of 38, 100, 150, 200, 250, 300, 315, 350, 400 or 450 mm as well as in 3, 8, 12 or 18 inches. Woven wire mesh sieves can be supplied with aperture sizes ranging from 125 mm down to 20 microns in full and half height versions.

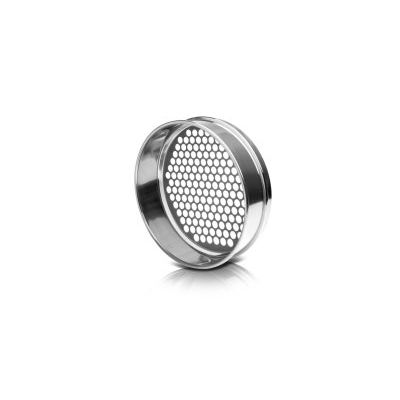

Endecotts manufacture a wide range of perforated plate sieves for the many industries that require them. These are available in diameter sizes of 200*, 300*, 400 and 450 mm.Aperture sizes range from 125 mm to 4 mm in square hole and 125 mm to 1 mm in round hole sieves.Perforated plate sieves can be supplied in frame materials of stainless steel or brass (*200 and 300mm) and are all manufactured to the highest engineering standards to ensure quality and accuracy. Woven wire sieves and perforated plate sieves are available to every national and international standard.  Quick links: International Test Sieve Series (ISO) American Standard Test Sieve Series (ASTM).

Endecotts produce a range of microplate sieves made from electro-formed nickel plate in stainless steel frames of 100 mm or 200 mm diameter. Endecotts microplate sieves feature unique self clearing apertures for the sizes from 75 to 5 microns. Microplate sieves are supplied with either round or square holes. Other sizes, sieve diameters and sieve depths can be supplied as required.
It is recommended that microplate sieves are used in conjunction with a liquid medium to assist the passage of extremely fine particles through the apertures. In certain cases where this is not possible it is often found that a compatible sieve shaker can speed up the analysis, while maintaining a high degree of accuracy.

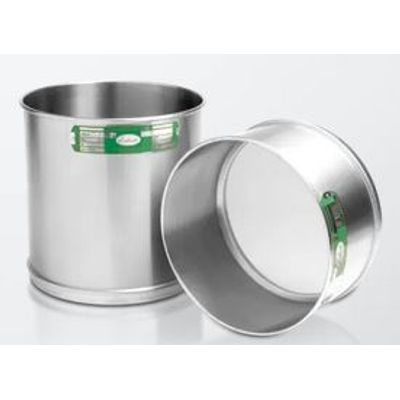

Wet washing sieves are extremely useful where samples need to be separated with the help of liquids. These sieves are available in 200 mm or 8 inch diameter (4 or 8 inches deep), with brass or stainless steel frames. Endecotts supplies wet washing sieves for a wide range of aperture sizes with optional support medium for fine mesh.

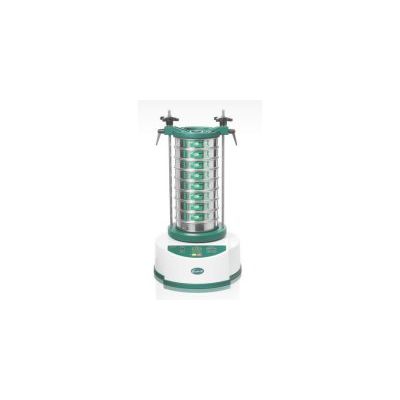

The new Octagon 200CL for precise, reproducible and error-free sieving processes competes with the most advanced sieve shakers in the world. Several unique features have been developed specifically for this sieve shaker, including the ‘Closed Loop’ amplitude control for ultimate reproducibility. The Octagon 200CL is designed to work with Endecotts’ SieveWare, the new software for easy evaluation and documentation of the sieving process.

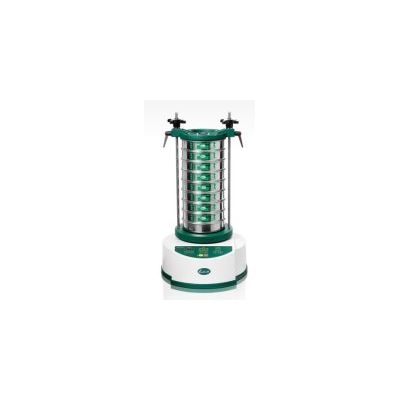

The sieve shaker Octagon 200 is suitable for all sieving tasks in laboratories as well as onsite and provides optimum sieving action for fast and reproducible results.It is robust, compact and sufficiently lightweight to be portable. Its electromagnetic drive combined with a 3D sieving motion ensures excellent separation efficiency in a short amount of time.  A digital display as well as a quick-release clamping system make operation very easy and straightforward.

The Minor 200 has been developed and manufactured to combine low cost with the benefits of a well-designed and engineered shaker.It incorporates many features usually found only on larger, more expensive models.

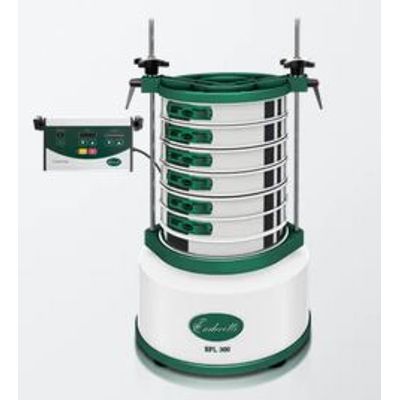

The new Sieve Shaker EFL 300 combines the best features of the EFL2 whilst incorporating modern sieve shaker technology.The EFL 300 is still extremely robust but at the same time lightweight and more powerful than its predecessor - heavier and larger samples can now be sieved.

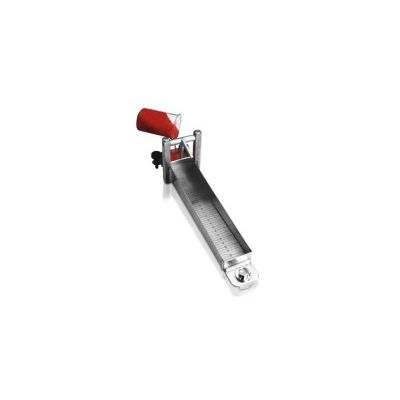

The Consistometer is a low cost, durable, instrument for accurately checking laboratory or production samples against consistency, viscosity or flow rate standards.It uses little bench space and is yet probably the simplest, most accurate method of conducting a variety of flow associated tests. It is already widely used in the chemical, paint, cosmetic and food processing industries. The consistometer provides a single parameter for a variety of flow tests which can be carried out over any period under as near identical conditions as possible. The Consistometer or Bostwick Consistometer is manufactured from stainless steel engraved with a series of precise graduations at 0.5 cm intervals. To ensure accurate reproducibility, the instrument is levelled using the adjustment screws and spirit level.

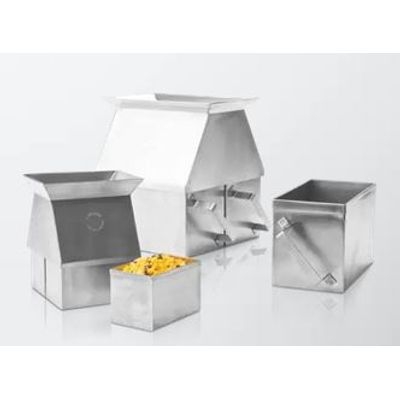

Endecotts hand held sample dividers will subdivide material samples into two smaller portions by a single pass.Further subdivisions can be attained by multiple passes.Each subdivision created with an Endecotts sample divider retains the characteristics of the original sample. Two different sample divider versions are available: One with 1/2" slot width and one with 1/4" slot width.
