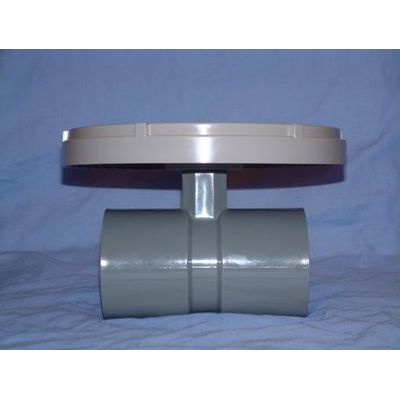

Tight O-ring retainer prevents air leakage and resulting contamination from leakage of mixed liquor solids into unit. Easy to install and strong structure for modulus parts. Easy to replace membrane. No special tools to need. Check valve designed avoid membrane hollow as air-on/air-off. Operations such as SBR`s, aerobic digesters and anoxic swing zones.

Typical coarse bubble applications include aeration tanks, sludge holding tanks, grit chambers and aerobic digesters. Site-specific designs for your tank, new or old. We work with you to find the best balance of capital cost and ease of operation.

The untreated wastewater pass through the screen box. The solids will retained on the screen then the solids will be collected and discharged into trough by rake. The hoist/descent and the open/close of rake are controlled by wire rope.  When the rake raised to wiper blade scraper position then scraper wiped the collected off debris onto discharge trough. CST Series Bar Screen is equipped with two drive unit to control the hoist/descent and open/close of rake separately. The installation angle is 90 ( 75 or 85 is optional), screen opening 50-200 mm.

The untreated wastewater pass through the screen box. The solids will retained on the screen then the solids will be collected and discharged into trough by rake. The hoist/descent of rake are controlled by wire rope and the open/close of rake are controlled by position device. When the rake raised to wiper blade scraper position wiped the collected off debris onto discharge trough and open close separately.

Csu series is designed to equip two chains to drive rake on the front (upstream). The solids will be collected to screen top and discharged into trough by rake. The installation angle is 85, screen opening 10-50 mm.

Csd series is designed to equip two chains to drive rake on the back (downstream). The solids will be collected to screen top and discharged into trough by rake. The installation angle is 60, screen opening 3-12 mm. It is suitable for channel dimensions 1000mm(W)X1000mm(D) of small.

Roots Blowers is different with Air Pump on the mechanism so produce the air flow greater than Air pump.  The rotors rotate cause the air is absorbed from inlet and compressed out to the outlet. The amounts of clearances between the rotors and between each rotor and the housing wall affect the performances and volumetric efficiency considerably. We adopts the new CNC technical process, therefore the clearances and roughness of rotors can be controlled to the perfect. The features are the following:

Pressure: 1000AX6000mmAq, Air Flow: 1.8-10.2 m3/min.  No Noise, No Soundproofing Devices. Sturdy Structure to Ensure Durability.

The rotor is bias rotated (as the follow diagram) with the vane going in and out inside the slots. The vane are compelled to attach the inside surface of casing, so that air is absorbed from inlet and compressed out to the outlet.

Submersible aerators are frequently used in wastewater treatment plants, especially during homogenization and equalization, preparing stages, sludge stabilization and post-airing stages. The aerator`s submerged motor activates an impeller and the rotation of the impeller result in vacuum to draw air from a special aspiration chamber. Water and air mix in the channel of aeration housing. The air-water-mixture current is discharged speedily by the centrifugal force.  Power: 2- 75 HP, Oxygen input rate up to 85 kg o2/ hr.
