Enginaire Clean Air Systems products

Precleaner selection must be based on engine air flow specifications, CFM of engine, not just by the inlet diameter, inches or centimeters, of air cleaner canister.

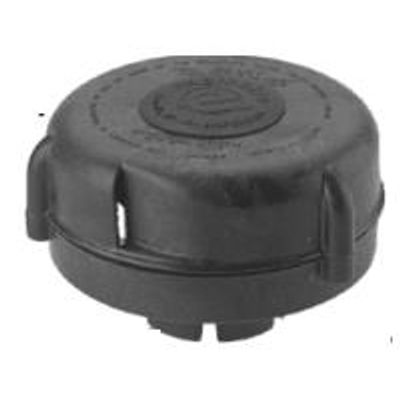

Airflow range 3 to 850 CFM. Self-cleaning ejector system eliminates up to 95% of dirt from the air stream pre-filter. Fits right on top of the air cleaner`s air inlet often in place of a rain cap. Specially-formulated glass-filled composite material: lighter weight but very high strength. Can be mounted in any position vertical, horizontal, even upside down! Precleaner selection must be based on engine air flow specifications, CFM of engine, not just by the inlet diameter, inches or centimeters, of air cleaner canister.

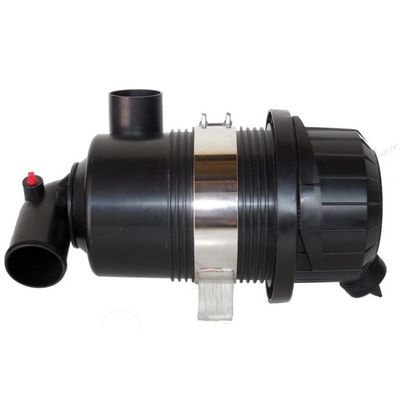

We are proud to introduce our innovative Magna Seal Twist Lock Air Cleaner Series. These tangential filter housings offer a compact design with innovative ease of servicing features. Filters are removed with a low-profile Twist Lock cap held together internally with six stout locking pins, eliminating the external plastic or wire latches or clips. Simply pull the lever, lift and twist to remove the cap. The canisters can be installed in much tighter areas given the new locking mechanism and less room needed for accessing the clamps/clips. We have heard stories forever of plastic air cleaners in the field with weak locking mechanisms and caps that do not stay on. Our twist lock canisters have proven themselves to be the strongest cap available!

High Strength Polymer. Airflow to 1100 CFM. Cellulose Media 99.9% Contaminant Removal. Vacuum Ports in the Outlet. Can be Mounted Vertical or Horizontal. Industry Standard Elements. Available with 90° –90 or Straight –ST Outlet. Available with (-E2) or without (-E1) Safety Element. Standard Stainless Steel Mounting Brackets Included.

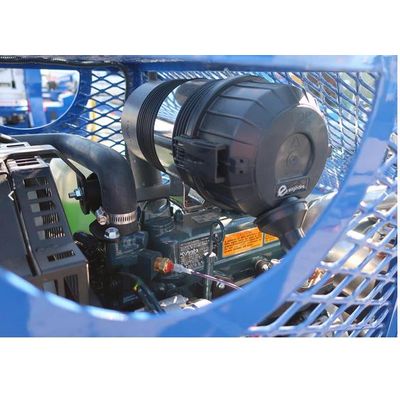

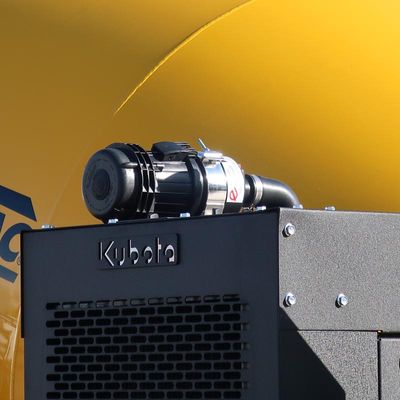

Enginaire’s Integrated VLR Series is one of the greatest off-road air filtration inventions. We took our proven and patented centrifugal air precleaners and integrated them into a standard air cleaner canister design. Our design did more than that however. A typical centrifugal air precleaner adds a small amount of initial restriction on the engine taking power to spin the precleaner. But with the VLR, you receive all the great benefits of a precleaner AND have lower initial restriction than air cleaners with no precleaner at all! This is due to the axial rather than tangential flow of air. With the precleaner on the end the air travels straight downstream from the precleaner, through the filter and induction system. Air also enters the VLR’s across the entire 360° circumference. All of this offers great air flow, cleaner, longer lasting filters, higher horsepower, reduced emissions and cleaner running engines!

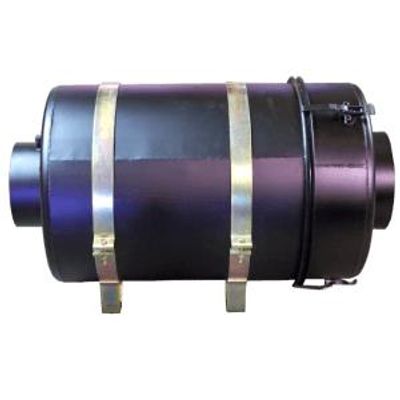

Metal Air Cleaner Canisters Available in Wide Range of Sizes. Air Flow to 1100 CFM. Great Fit for Medium to Extreme Environments. Two Mounting Brackets as Standard and Included in Price. Vacuum Ports in the Outlet. Available with Dual Elements (E2 style) or Primary Only (E1).

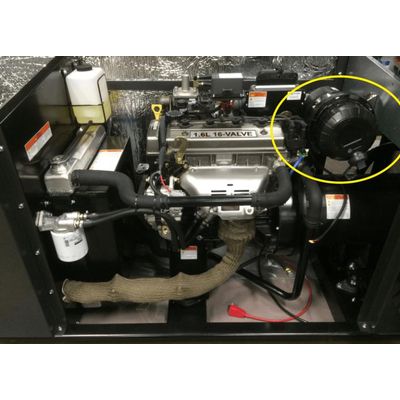

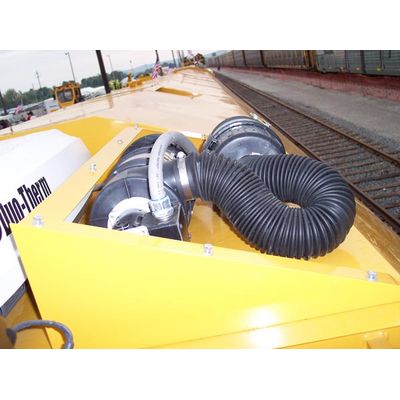

Enginaire has vast experience designing perfect fit to application custom air cleaners. We can design and fabricate these models quicker than competitors given our focus to tailor to individual OEM account needs. On this page we show you some of our unique designs. Some of these flexible features include: placement of air inlets, integrated precleaners right into the side inlet for lower height profile and lower restriction precleaner, custom mounting brackets, private labeling, and the ability to 3D design full air intake kits for packagers and OEM’s where we can apply single part numbers to a whole intake kit including metal/rubber adapters, air cleaners, intake accessories, precleaners etc.

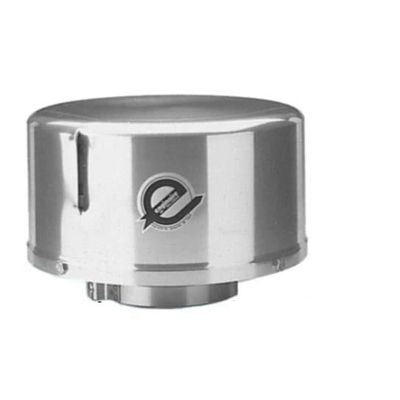

Designed for use with available inline downstream filters. Integrated Pressurizer. No filter media.
