Engineered Filtration Systems (EFS) products

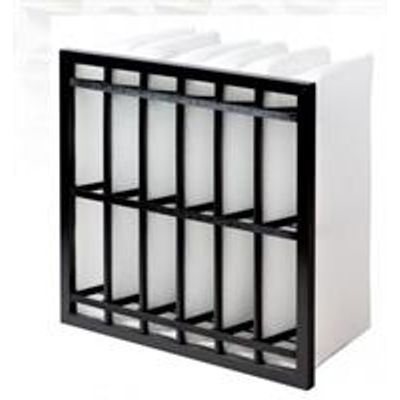

Need a filter that can tolerate a multitude of environments and weather? Pocket Filters from EFS provide a capable and innovative option for quality air filtration. These filters are designed to withstand high humidity as well as accelerated velocities, and aggressive turbulence. The filter pockets are self-supported, meaning they remain uncompromising in the air stream and because the filter does not contain any metal parts, it bears no risk of corrosion or punctures. Other components of the filter include a polyurethane header, depth-loading synthetic filter media, non-shedding fibers, and spacers that channel the air entering the pocket, which gives this filter low pressure drop and minimal energy costs. Through and through, this durable filter is not only effective but retains efficiency over time allowing you to save money while sustaining a healthy air space. Available in MERV 8 (40-45%) 11 (65%) as per ASHRAE 52.2.

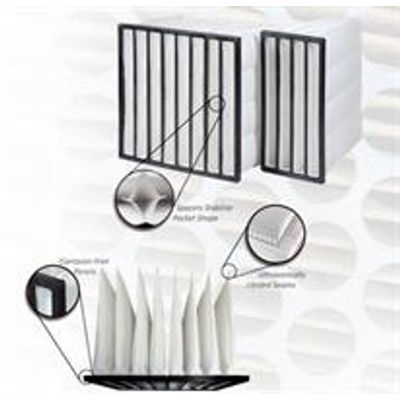

Introduced in the 1970s Bag filters quickly became a crucial pawn in the filter industry. Soon it came into widespread use across the country providing efficient and cost-effective air filtration. Since then, EFS has exceeded the status quo with excellent durability, performance, and value for applications that require medium to high efficiencies. These filters have 100% synthetic filter media with non-shedding fibers that repels moisture, combats chemicals, and thwarts bacterial growth. The extruded aluminum frame gives the filter enhanced stability, and ultrasonically sealed pocket seams rule out any leaks & tears while the internal pocket spacers effectively channel the air providing low pressure drop and low energy costs. The rugged build of the filter’s frame restricts bending or collapsing in the most turbulent and hostile environments. Available in MERV 11 - 14 as per ASHRAE 52.2.

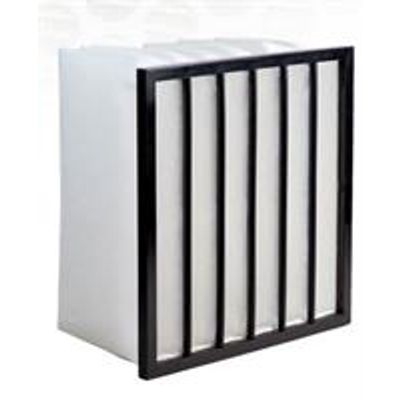

Soft Pocket Bag Filters from EFS have excellent durability, performance, and value for applications that require medium to high efficiencies. These filters have 100% synthetic filter media with non-shedding fibers that resists moisture, chemicals, and bacterial growth. The extruded aluminum frame gives the filter enhanced stability, and ultrasonically sealed pocket seams prevent leaks & tears while the internal pocket spacers effectively channel the air providing low pressure drop and low energy costs. The rugged build of the filter’s frame prevents bending or collapsing in the most turbulent and hostile environments, allowing for even loading.

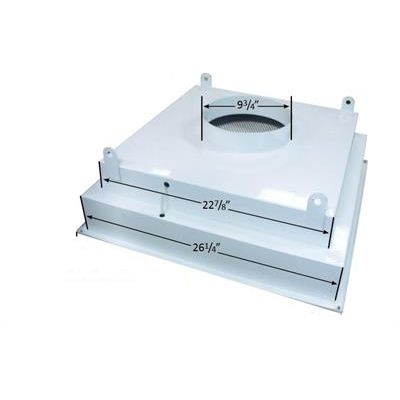

Typical applications for the EFS HV HEPA include clean room environments, hospitals, data centers, semiconductor and electronics manufacturers, medical and pharmaceutical facilities, laboratories and precise testing facilities, and other critical applications

The EFS V4CG is excellent for many types of air handling systems and can withstand high turbulence and velocities.

The EFS F8 FG V4-Bank Air Filter is constructed to withstand high velocities and turbulence, and is excellent for many types of air handling systems.

Created to withstand high velocities and turbulence, the EFS V4 Bank is excellent for most types of air handling systems.

The EFS Corrosion-Free Coalescer Rigid Pocket Filter is built to withstand extreme humidity, high velocities, and high turbulence. This filter is excellent for use where space is limited.

The EFS Reverse Rigid Pocket Filter (RRPF) is constructed to withstand extreme humidity and high velocities & turbulence, and is excellent for use in areas where space is at a premium.
