Features & Benefits: Lead free material unlike bronze. Oxidation & Corrosion Resistant. Stronger & Stiffer than Bronze. Higher modulus of elasticity compared to Si-Br. Light in weight compared to Si-Br.Free from toxic content available in Si-Br C87600. Weldability & Machinability.

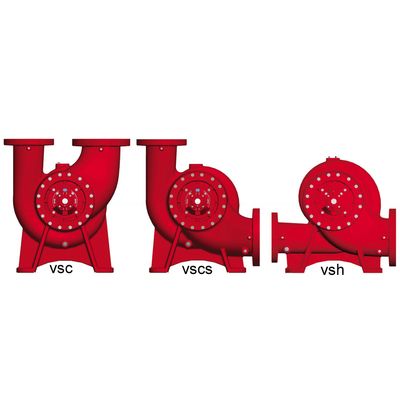

We took our tried-and-true design methods and digitized them by simulating the pumps using Computational Fluid Dynamics (CFD). CFD is no simple task; it takes a bank of 18 computers up to 30 hours to solve equations for just one hydraulic analysis. By using this technique, you can actually see the flows and pressures like never before. Where our engineers once relied solely on years of experience, CFD helps out by letting them see exactly what’s going on inside the pump. They can analyze several different design ideas rapidly to bring the optimal design to the table for every pump, whether it is in the VSC, VSH or VSCS flange configuration.

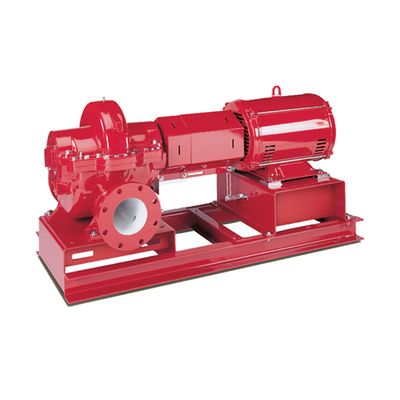

The HSC3 features internally self-flushing mechanical seals. This innovative design, an industry standard, insures maximum seal life lubrication, heat dissipation and debris removal Eall without vulnerable, external flush lines and filter kits that can clog and result in seal failure. With the Bell & Gossett internally selfflushing seal design, as much as 25% of the total pump flow continuously flushes the seal faces compared to only a few GPM for conventional stuffing box mounted mechanical seals. Seals remain cooler and unwanted debris is flushed away from the mechanical seal faces resulting in longer mechanical seal life.

Features & Benefits: Qualify for Green Building Incentive Programs and Rebates. Achieve LEED Certification. Sustainable Water Conservation and Energy Efficiency. Reduced Environmental Impact. Lower Electric and Water Utility Costs. Long-Term Economic Returns.

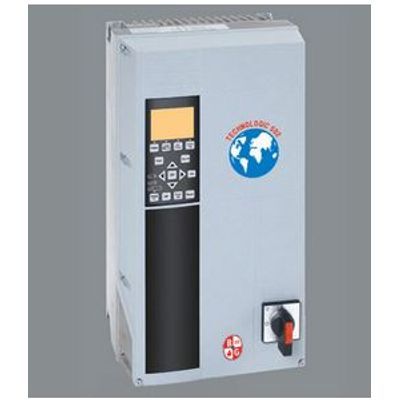

Controls up to eight pumps in parallel (Provision available upto 16 pumps in parallel as well), Available serial port for communications to the building automation system via many popular protocols, Control Logic developed exclusively for Primary variable, Secondary variable and Tertiary variable flow pumping applications, All the performance and operator friendliness you expect from Bell & Gossett’s Technologic line of controllers, UL Listed, Modular design promotes unlimited flexibility,

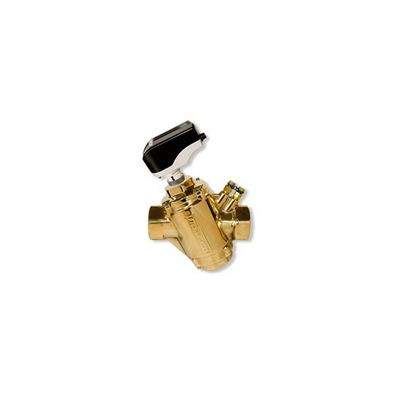

Features & Benefits: Pressure independent control valves (PICV). Total authority. Choice of actuator, electrical actuators: 0(2)-10V modulating, 3-point floating or 2-position, or thermal actuators: 0-10V modulating or ON/OFF.

Pressure independent control valves (PICV). Total authority. Choice of actuator, electrical actuators: 24V 0(2)-10V modulating, 24V digital 2-position or 3-point-floating. Adjustable to 41 different maximum flow rate limits. Forged brass housing. Optional pressure/temperature plugs. Fixed female-by-female threaded. Sizes: Green.3: 40-50mm (1½”-2″) dP-range: 16-400 kPaD (2.3-58 psid). Flow rate: 0.528-3.79 l/sec (8.36-60.0 GPM).

Features & Benefits: Accessible, removable pre-set stainless steel insert. Forged brass housing (DN15-50) and cast brass (DN50-80). Female by female threaded connection. Standard with pressure/temperature plugs. Sizes: 15-80mm (½”-3″). dP-range: 10-880 kPaD (1-128 psid). Flow rate: 0.021-10.10 l/sec (0.333-16.0 GPM).

Specifications: Pressure rating : 3400 kPa/493 psi, Temperature rating, Media : 20°C to +175°C/4°F to +347°F. Material: Cartridge : AISI Type 304 stainless steel, AISI type 177 PH stainless steel spring, Body : Ductile iron ASTM A536, class 604018/ENGJS40018, Body tappings : 1/4″ NPT, End connections : Size 100250mm and 3501000mm:EN10921,PN25+300mm:EN10921, PN40+4″8″ and 12″18″:NSI B 16.5 150lb class flanges+10″ and 20″24″:ANSI B 16.5300lb class flanges+30″:ANSI B 16.47 300lb class flanges+32″40″:ANSI B 16.47 150lb class flanges+, Flanges are not supplied by flowcon., Studs and nuts are available upon request, Flow rate range : 0.8832286.9 l/sec
