The system decomposes and atomizes the high pressure water coming into the single fluid nozzles and turns it into 5-50 micron water fog. Except for the high pressure pump, there is no need for air compressor, control panel, hydrophore and separate hose lines for air-water supply to obtain water fog. In the single fluid dust suppression system, the water coming from the high pressure pump (40-45 bar / 580-650 psi) rotates at high speed with the help of the moving helix part inside the nozzle and compresses at the nozzle outlet and separates into micro-sized particles and becomes water fog. The helix part that allows the water in the nozzle to rotate at a high speed also prevents 50% automatic cleaning inside the nozzle and prevents the nozzle from clogging.

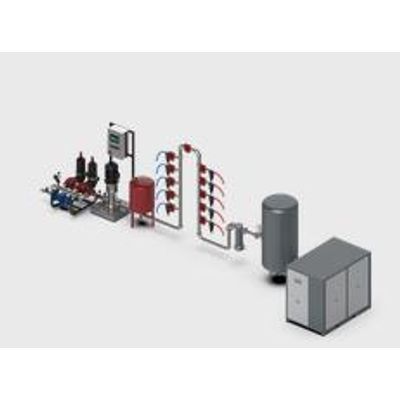

Ultrasonic atomizers operate in a complex structure; In the first step, the water jet is injected into the high speed air stream, where the initial breakdown of the liquid takes place. In the second step, this biphasic flow formed is directed to the region where the sound waves are located, and secondary splitting ensures minimal droplets to form. This is accomplished with the resonator placed in front of the orifice. The droplets of the mist cloud formed are about 30 microns.

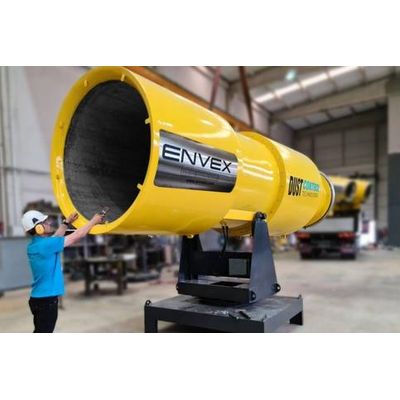

Maximum Throw Metres 30-35. Total Power kW 7.7. Fan Power kW 5.5. Pump Power kW 2.2.
