EnviroMix products

The AquaBlend system provides mixing for water storage and flocculation tanks by firing short bursts of compressed gas through NSF-compliant piping and engineered nozzles. The AquaBlend controller air injection valve intermittently fires to blend from the tank bottom to the water surface creating homogenous conditions, or fired in such a manner as to produce a particular velocity gradient (G value) and tapered flocculation.  The large bubbles create a distinctive mixing pattern, or “tank roll”, which is driven by inherent flexibility in the controls system.

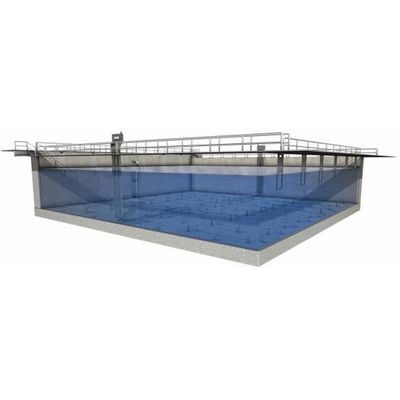

The EnviroMixAquaBlend-FT system provides mixing in water treatment flocculation tanks by firing programmed short bursts of compressed air through engineered patented nozzles. AquaBlend-FT controller air injection valves fire large (e.g., 4`0) gas volumes through a distributed nozzle array located across the tank floor. Compressed air is intermittently and sequentially fired in fractional second durations to mix a flocculation tank both vertically and horizontally.

The BioMix system provides rigorous mixing for a variety of applications in the municipal and industrial markets. The system utilizes a patented product design with proven components to fire short bursts of compressed gas through nozzles attached to the bottom of a process tank. Electrical power requirements are very low, consisting of just the power required to run the gas source and the electronic BioMix control panel. The control system provides operators the ability to modify the mixing intensity and location based on specific operating needs, thus gaining efficiencies in air consumption and power usage. Case studies have identified the BioMix system as having a 60%+ reduction in power usage against the leading submersible mechanical mixer in comparably sized applications.

The BioCycle process is an automated mixing and aeration system that operates on real-time process parameters or a time-based control system. This patented process integrates the BioMix compressed gas mixing system with a facility’s new or existing aeration system to be optimized for biological phosphorus release, simultaneous nitrification/denitrification, and alkalinity recovery in a single reactor.  By decoupling the aeration and mixing functions with a process control system, operators can now utilize existing basins flexibility to control Dissolved Oxygen (DO) levels, taper aeration, and cycle between aerobic and anoxic phases.

The BioMix-AD™ compressed gas mixing system provides uniform mixing through an array of nozzles in an anaerobic digester. This patented technology utilizes a number of parameters to control the firing of the gas injection valves in order to mix a specific sludge and tank geometry both vertically and horizontally.  The BioMix-AD system incorporates a distributed energy model that significantly introduces more mixing energy inputs then inefficient legacy technologies in the market.  Our approach is proven to be far more energy-efficient and provide better mixing as demonstrated by off-gas flow data analysis and mixing performance results.

Flocculation is the mixing of coagulant with water to flocculate particles out of suspension.   As the solution is mixed the coagulant helps to form small floc particles.  As smaller floc particles come into contact with one another and bond together, they form larger and larger flocs that eventually settle out of suspension. Gentle mixing helps the coagulant to more efficiently form floc particles. The AquaBlend-FT system provides this gentle mixing while facilitating variable mixing intensity (G Value) throughout various zones within the process without shearing the floc.
