Environmental Devices Corporation (EDC) products

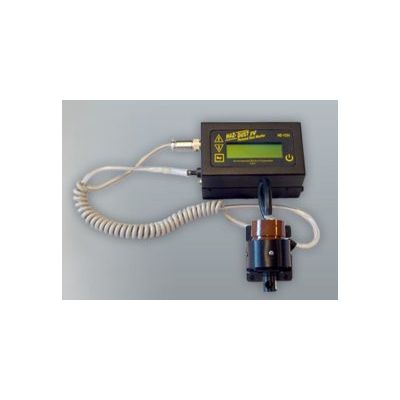

HD-1004 Real-Time Personal Particulate Monitor is the only direct reading instrument designed for true breathing zone measurements and comprehensive graphical reporting. The miniature & size selective optical sensor mounts within the OSHA defined breathing zone. The attached 37mm filter cassette allows for concurrent gravimetric and analytical sampling of lung damaging particulates. Calibrated to use for United States OSHA/NIOSH Occupational Health Reference Methods.

An affordable, easily deployable, and portable air monitor designed for measuring trace level for ambient air pollution. The unique sampling design allows for real-time data and filter gravimetric analysis utilizing the FRM 47mm Cassette located directly behind the optical sensor. EPAM-5000 offers a weather tight carrying case, temperature compensated electronics, easy to clean optical sensor and a standard 24 hour battery or continuous sampling with solar power panel accessory. Network up to 8 Haz-Dust™ Model EPAM-5000 systems and add up to 5 miles wireless data transmission to central PC or MAC computer.

Air-Aide Model AA-3500 Airborne Particulate Monitor provides accurate and instantaneous display of concentration readings on lung damaging particulates and aerosols. AA-3500 is a portable handheld survey tool for measuring lung damaging particulate matter. The unique sensor design has applications in indoor air quality (IAQ), HVAC, environmental and industrial hygiene. Results are immediately displayed and stored in memory. The supplied PC software allows for graphical and statistical representation of the total dust generating process, eliminating the need for repetitive and costly filter gravimetric laboratory analysis.

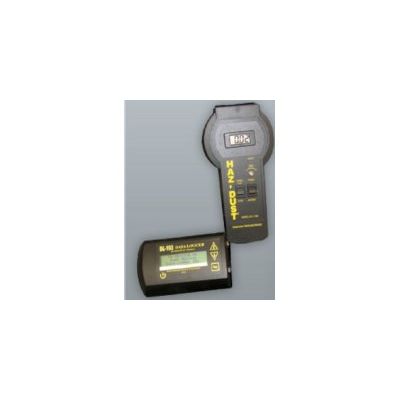

Haz-Dust Model HD-1100 is an affordable Real Time Dust Monitor Designed for Industrial Hygiene, Indoor Air Quality and Haz-Mat air monitoring Investigations providing accurate and instantaneous data on airborne particle concentrations, in accordance with the regulatory USA NIOSH method 0600 for lung damaging Respirable particulates. When coupled with the DL-103 data logger, maximum automation is achieved for data collection, statistical analysis, graphs and detailed report generation. Software is completely Windows compatible and easy to use.

Haz-Dust Model AQ-10 Air Quality Particulate Sensor is a versatile transducer designed to continuously monitor for the presence of airborne particles. The AQ-10 is calibrated for OSHA and EPA regulations. Suitable for monitoring emissions from cyclone, precipitators, bag houses or any dust control device. The AQ-10 ideal for monitoring air quality in underground transportation systems, ventilation systems, indoor workplace or any other application where immediate data on smoke, dust, fumes or mists is needed.

The product is designed for measuring diesel particulate matter for Industrial Hygiene and Environmental air investigations. The DPM-4000 is individually worn and offers immediate determination and data storage of air borne diesel particulate concentrations in micrograms per cubic meter. This is the only commercially available personal direct reading aerosol monitor specifically designed and calibrated for measuring occupational exposures of diesel particulate matter in the work place.

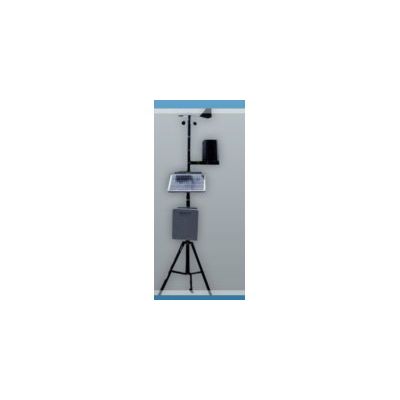

Model AS-2000 Modular weather station is a computer-based meteorological system designed as a “user friendly” solution for data storage and real-time monitoring of weather conditions.

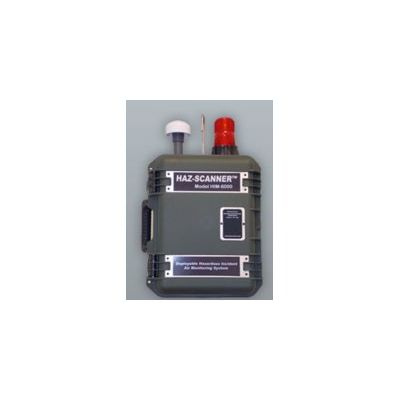

The Haz-Scanner model HIM-6000 air quality monitoring station measures and documents trace level criteria air pollutants. The portable and expandable system simultaneously measures PM 2.5 and PM 10. The HIM-6000 offers up to 12 sensors for toxic gas, sound, radiation, and meteorological air parameters. Options include solar power, 5-mile wireless data transmission and Ethernet/Internet data viewing.

The Haz-Scanner Model GB-2000 portable indoor air quality monitor is designed to measure levels of lung-damaging particulates, carbon dioxide, and carbon monoxide as well as temperature and relative humidity. Standard features include: an inline 25 or 37 millimeter gravimetric filter cassette for concurrent filter sampling for chemical and biological analysis: data logging and real-time wireless data transmission, and easy to use, PC-compatible software for creating compliance ready graphical reports. With interchangeable sensors, the device can be configured to provide 12 simultaneous critical air measurements.
