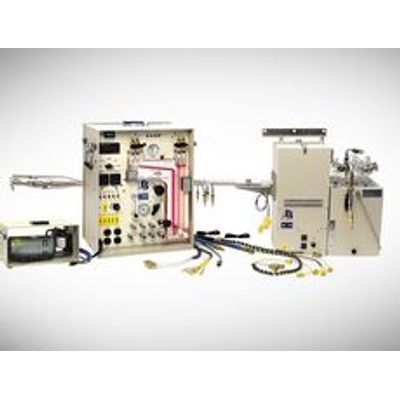

The M5-A-S1 Auto Isokinetic system is designed with continuous auto data logging capabilities and uses a Venturi to monitor and signal pressure adjustments automatically.  The heart of the system is the A-2000 console and utilizes field tested probe assemblies, liners, and sample cases already in use by testers.  The M5-A-S1 also employs a Carbon Vane Oiless Pump.  The Auto Isokinetic M5-S1 system reduces manpower and operator error while expediting reporting. (click on image to enlarge)

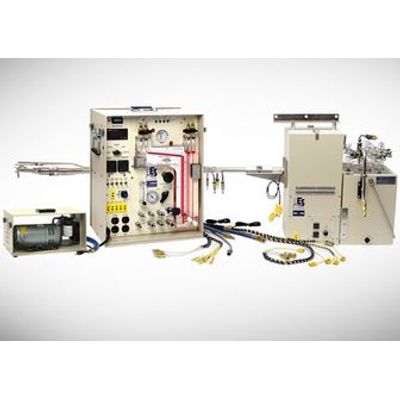

The M5-A-S2 Professional Auto Isokinetic system is designed with continuous auto data logging capabilities and uses a Venturi to monitor and signal pressure adjustments automatically.  The heart of the system is the A-2000 console and utilizes field tested probe assemblies, liners, and sample cases already in use by testers.  The M5-A-S2 system employs a Carbon Vane Oiless Pump and comes with additional calibration equipment, and cases for added protection during transport.  The Auto Isokinetic M5-S1 system reduces manpower and operator error while expediting reporting. (click image to enlarge)

The M5-S2 Method 5 Professional Isokinetic sampling system provides the essential apparatus needed to perform Method 5 runs along with additional equipment for calibration, cases for added protection and transport, and additional glassware. (click on image to enlarge)

The M5-S1 Method 5 Basic Isokinetic sampling system provides every essential piece of apparatus needed to perform Method 5 runs. (click image to enlarge)

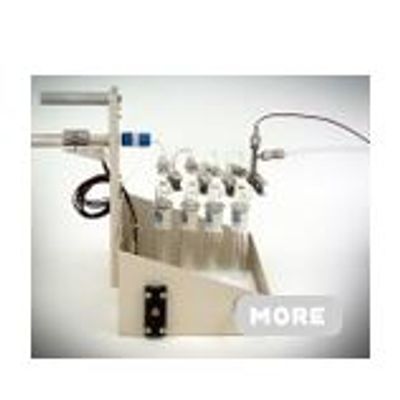

The M26-S1-H Method 26 (HCL) Sampling System is for the determination of hydrogen chloride emissions from stationary sources. The sampler comes with miniature impingers, heated probe assembly, and a modular clamshell oven.  Add to the sampler the Environmental Supply UNI-VOS-ACD Low Flow Control Console to make the system complete.

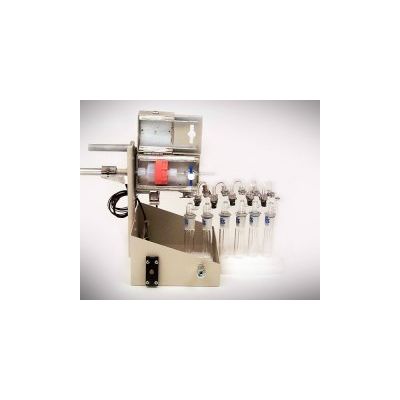

The M6-S1 Method 6 Sampling Train is an efficient low flow, non-isokinetic system for extracting a gas sample from the stack and separating the sulfuric acid mist, including sulfur trioxide, from the sulfur dioxide fraction that is to be measured using barium-thorin titration.  The UNI-VOS-ACD sampling console is the preferred console, sold separtely, for use with this train. (click on image to enlarge)

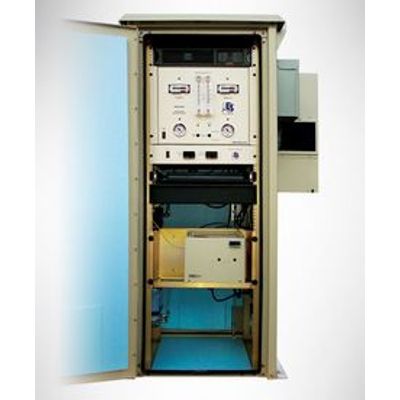

The HGK-PFI turnkey system in a NEMA cabinet is a fully automated platform integrated system for CEM applications in industries needing proven reliability in sorbent trap monitoring of flue gas Mercury on a permanent basis.

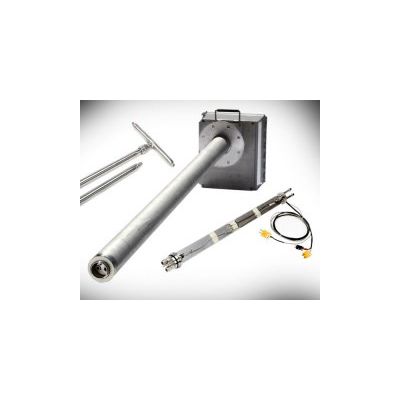

The HGK-FPR-(06)H seen here is a 6 foot Hastelloy modular flex probe designed with a removable cartridge.  The cartridge slides into the port mounted portion of the probe and allows for an easy exchange of the cartridge that contains the sorbent traps, eliminating any unnecessary handling of the sorbent traps while at the stack.

The HGK-FPR-(06)S seen here is a 6 foot stainless modular flex probe designed as a removable cartridge, without removing the sorbent traps.  The cartridge style probe slides into the port mounted portion of the probe and allows for an easy exchange of cartridge and traps, without removing the probe configuration from the stack.
