Envirosight LLC products

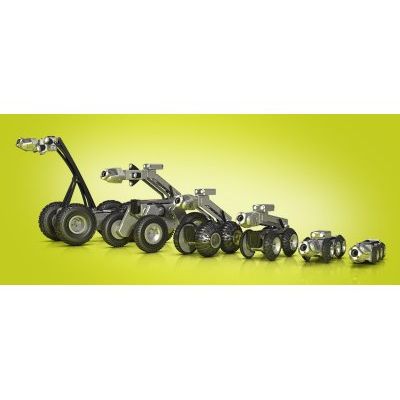

ROVVER X is the one system that lets you do everything: control inspections, view and record digital video, log observations, generate reports, and link directly to asset-management software.

The RVX-SAT lets you inspect laterals from a mainline, ideal for finding dangerous gas line cross bores and illicit flows. The system integrates with your existing ROVVER X system components, reducing cost and equipment clutter. Best of all, RVX-SAT gives you the range and articulation to inspect where other lateral launch systems can’t.

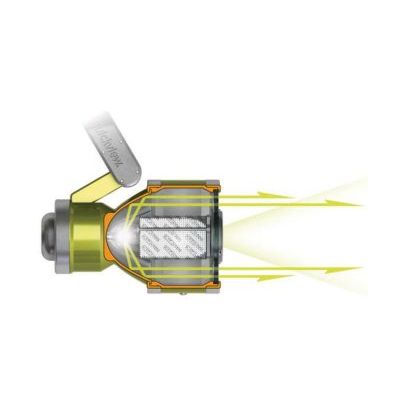

Illumination has always been the limiting factor for zoom inspection performance. While today’s cameras have the optical zoom to resolve detail hundreds of feet away, camera size combined with the confined space of a pipe leaves little room for lighting. Typically, zoom cameras use offset lamps whose target zone coincides with camera view only at a specific distance range. As a result, optimal viewing over the full length of a pipe requires continuous adjustment, and overall inspection range suffers. Patent-pending Haloptic illumination technology overcomes these constraints. By projecting a halo-shaped column of light that encircles the camera and conforms to the contour of pipe walls, the new Haloptic-based QuickView sees farther, requires no midstream readjustment, and delivers vivid, colorful video with markedly decreased gain, noise and distortion.

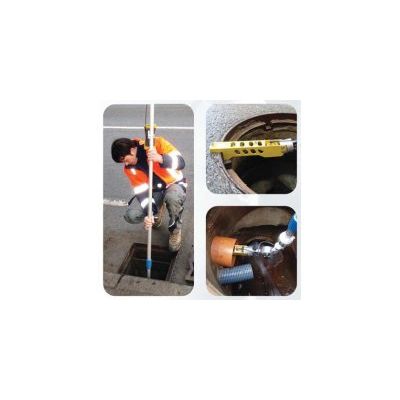

Without requiring confined space entry, DiaMetrik measures depth and width of manholes, as well as diameter of incoming lines—all to an accuracy within 0.2”. This quick, easy dimensional data makes it simple to complete inspections, plan relining and calculate flow capacities. A collapsible 15’ pole and articulating measurement head enable DiaMetrik to reach every structure requiring measurement, yet stow conveniently in the bed of a pick-up truck. Powered by an industrial-grade laser, DiaMetrik takes readings from 100 mm inside pipes to compensate for any dimensional inconsistencies at the pipe’s mouth. It presents readings on a digital display, stores the 10 most recent measurements, and operates on battery power.

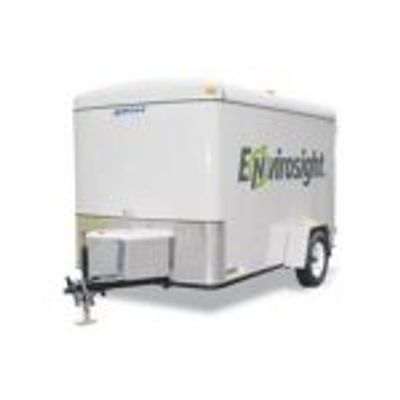

In a class above other inspection trailers, SwitchBack gives you a tiered diamond-plate cargo bench, rugged drawer cabinets, and a climate-controlled digital studio with your choice of rack-mounted control, display and recording equipment. A large picture window allows visual communication between operator and technician, ensuring fast, efficient inspection. Onboard generator options start at 4 kW, and an integral 15-gal washdown system keeps equipment clean and ready for the next job. SwitchBack provides easy access to all your inspection equipment: crawlers systems, manhole cameras and push cameras, as well as basic digging and excavation tools. And because it’s trailer-based, it literally switches from the back of one towing vehicle to another in minutes.

When you see what you’re jetting, you can make smarter choices and be more productive.

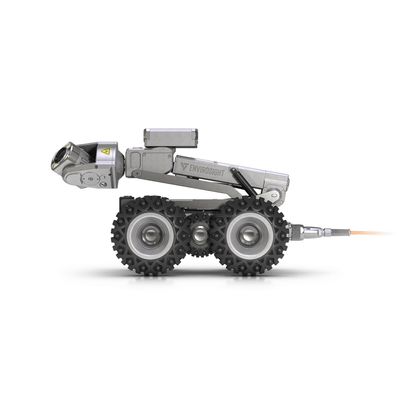

The ROVVER X mainline sewer inspection crawler is built for the rigors of underground work. Whether you’re conducting routine pipe assessments or on an emergency call out, the industry’s most trusted professional sewer camera system offers unmatched capability and uptime.

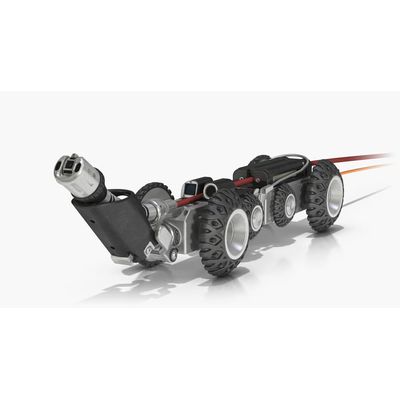

SAT II lets you crawl up to 984’ into mains and then launch 147’ into lateral lines to locate illicit flows, inflow & infiltration and cross bores. You need a lateral launch inspection solution that can push past obstacles and maximize productivity. The ROVVER X SAT II sewer lateral launch camera crawler gives you industry-leading productivity, range, and reliability, all while keeping your cost of ownership low.

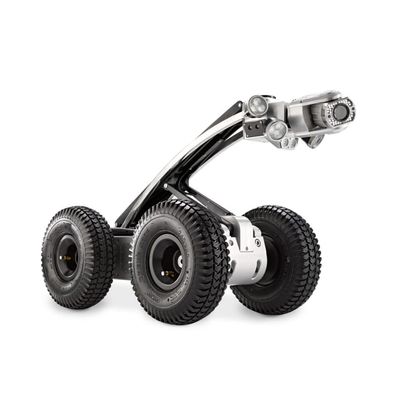

The ROVVER X 400 inspection crawler is designed for large diameter pipe, and has an integral camera lift to rise above high flows. Ideal for inspecting interceptors and trunk lines 18” to 120” in diameter. Four (4) aimable LED tri-lamps and two (2) LED path lamps. Rangefinders to center camera, measure pipe diameter. Illuminated rear-view camera with expansion port.

Measure pipe ovality, erosion and defects–ROVVER X’s  laser profiling attachment captures accurate geometric pipe profiles, and WinCan software transforms these scans from our professional sewer camera system into 3D models that identify potential defects and structural anomalies.
